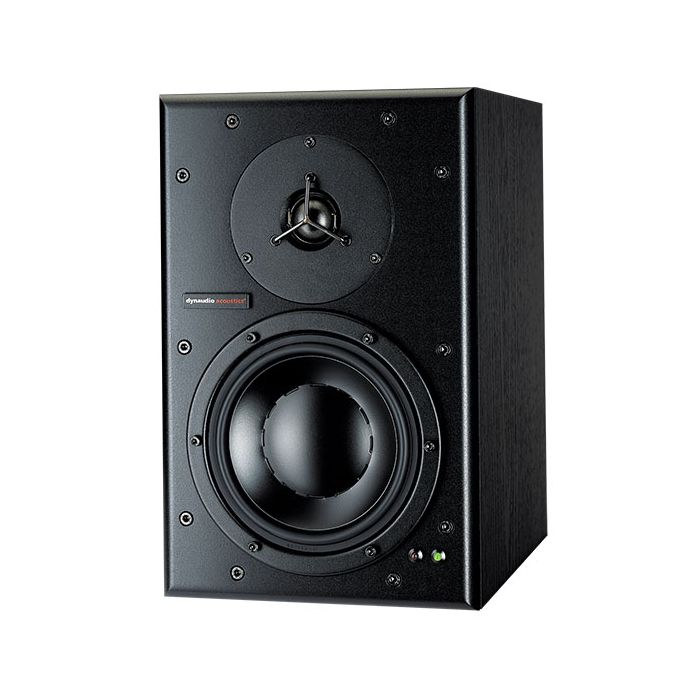

Dynaudio PRO BM6A Active Studio Monitor
Compact Active Studio Monitor (Each)
MPN: DYN-BM6A SKU: DYN-BM6A
Applications for the BM6A cover every aspect of sound engineering and reproduction, including music and speech monitoring and mixing, radio station, OB vehicles, edit suites, post production, recording studios and playback rooms. Their small size combined with their brilliant performance also make them suitable for use as rear channel speakers in surround systems. In combination with the BM14S it is also well suited for a full-blown 5.1 system in smaller rooms.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Potential uses for Dynaudio Pro’s BM6A reach every aspect of sound engineering and reproduction. These speakers are ideally suited to music and speech monitoring and mixing, radio station, OB vehicles, edit suites, post production, recording studios and playback rooms. The possibilities are endless.
The BM6A’s compact size merged with exceptional performance means they are perfect for use as rear channel speakers in surround systems. In addition, they’re also suitable for a full-blown 5.1 system, in smaller rooms, in conjunction with the BM14S.
The BM6A also utilises an electronic fourth order phase-aligned crossover, with a crossover point at 2.2kHz, which feeds two high performance discrete MOSFET amplifiers rated at 100W each.
A low frequency equaliser drives the low frequency section, providing a choice between extended, critical damped response or more conventional higher Qt response - giving out a more level but less low frequency output. A complex protection circuit is included in the internal electronics. This helps to prevent accidental damage to the BM6A’s drivers while still delivering optimum transient response.
- Handcrafted aluminum drivers
- High-resolution 1.1" soft dome tweeter, pure aluminum voice coil
- 7" woofer, pure aluminum voice coil
- 2 channel high grade 100-Watt RMS amplifier
- 118dB SPL peak power output
- Frequency response of 41Hz to 21kHz
- HF & LF analog trim filters
System: 2-way Active Nearfield Monitor
Frequency Response: 41 Hz - 21 kHz
Max SPL 1m, pair (IEC Long Term): 118 dB RMS
Max SPL 2m, 5.1 (IEC Long Term): 119,5 dB RMS
Input level for 85 dB SPL @ 1m (+4/-10): -12 dBu RMS / -28 dBu RMS
Input level for max peak SPL (+4/-10): +16 dBu peak / -1 dBu peak
Power consumption: Idle: 25 W / Max: 200 W
Amplifier power: Tweeter: 100 W / Woofer: 100 W
Resonance Frequency: 49 Hz
Internal Cabinet Volume: 9,5 liters
Bass Principle: Bass reflex
Crossover Frequencies: 2200 Hz
Crossover Slope: 24 dB/oct
Tweeter: Esotec 28 mm soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front,
Woofer: 17 cm, 75 mm pure alu wire voice coil, One piece molded polypropylene cone
Weight: 11 kg
Dimensions (WxHxL): 217 x 338 x 321 mm
