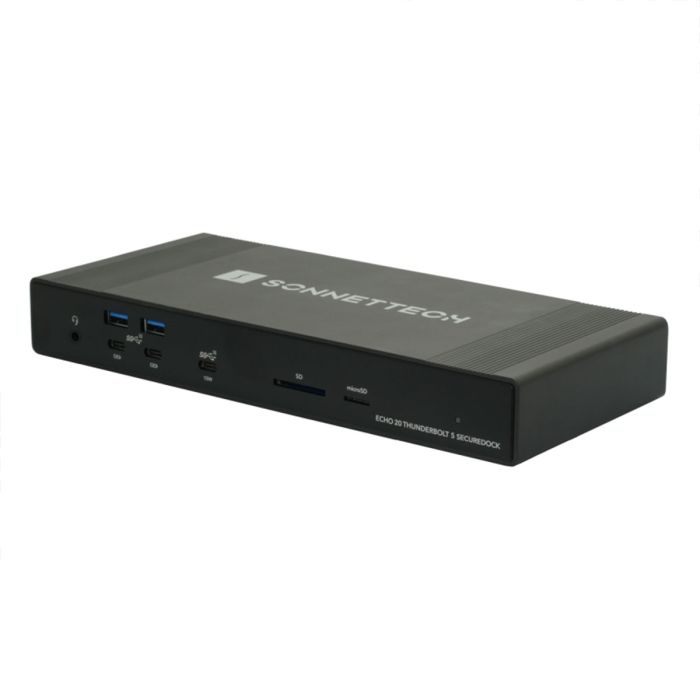

Echo 20 Thunderbolt 5 SecureDock

Thunderbolt 5: Tomorrow’s Performance. Today.
How do you improve the performance of Sonnet Thunderbolt 4 docks? You double the bandwidth. You increase the power. You add the most-requested features.

Introducing Echo 20 Thunderbolt 5 SecureDock — a powerful enterprise dock with built-in 10GbE networking designed for secure environments that prohibit onboard storage. Transform a single cable connection from your computer into two Thunderbolt 5 peripheral ports, two video output ports, one 10Gb Ethernet port, nine 10 Gbps USB 3 ports, and more! With 80 Gbps of bi-directional data speed — twice the throughput of Thunderbolt 4 — and 120 Gbps for higher display bandwidth, SecureDock delivers the performance and connectivity modern enterprise workflows demand.

Connect Your Peripherals and Power Your Laptop with One Thunderbolt 5 Cable
Echo 20 Thunderbolt 5 SecureDock links plugged-in Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to your computer with a single Thunderbolt 5 cable. Got a laptop? Keep its power adapter in your bag — the SecureDock will power it with 140W of charging power. When it’s time to leave, just disconnect the Thunderbolt cable, grab your computer, and go.

Integrated HDMI and DP Display Support
Echo 20 Thunderbolt 5 SecureDock features video output ports for HDMI and DisplayPort displays, enabling you to connect either an up to 8K* @60Hz HDMI monitor or a 4K @144Hz DisplayPort monitor.

Blazing-fast 10GBASE-T Access
Echo 20 Thunderbolt 5 SecureDock supports demanding workflows with built-in 10 Gigabit Ethernet, enabling connection to 10GbE infrastructure using cost-effective Cat 6 or Cat 6A copper cabling (up to 55 or 100 meters, respectively) — eliminating the need for a separate adapter.

Delivering up to 10x the performance of Gigabit Ethernet, the dock also supports 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds when connected to switches or NAS devices without 10GbE support, using standard Cat 5e (or better) cabling.

AVB Support: Audio Video Bridging (IEEE 802.1Qav, AVB) support for macOS makes this dock ideal for use in pro audio and video applications where synchronization of data streams is critical.

High Resolution Audio Support
Echo 20 Thunderbolt 5 SecureDock features a hi-res Audio Codec (coder-decoder) that supports the dock’s audio I/O jacks with high quality, lossless audio. And, with the SecureDock’s fanless, silent design, you’ll hear every detail.

Headset Microphone:

• 24-bit/48 kHz and 24-bit/96 kHz sample rates - Ideal for meetings, calls, and chat headsets, and supports professional microphones.

Headset Earphones:

• 24-bit/44.1 kHz - Ideal for CDs and music libraries, avoiding resampling of 44.1 kHz audio content.
• 24-bit/48 kHz - Great choice for streaming video and meetings. Supports Apple Lossless Audio Codec (ALAC) playback.
• 24-bit/96 kHz - Fantastic choice for audiophiles; supports Hi-Res Apple Lossless playback.
• 24-bit/192 kHz - Ideal when maximum detail is required; supports high-resolution Apple Lossless playback, preserving the full fidelity and dynamic range of studio-quality audio recordings.

Dedicated Mic Jack:

• 24-bit/96 kHz sample rate - Connect a dedicated microphone for clear voice input during meetings, calls, streaming, and voice recording.

Stereo RCA Jacks:

• 24-bit/96 kHz sample rate - Provide consistent line-level audio output, ideal for connecting powered speakers or directly to a receiver, power amplifier, or mixer. Also excellent for self-powered studio monitors and other professional audio equipment. Supports Hi-Res Apple Lossless playback.

Dual Downstream Thunderbolt 5 Ports for Simple, Powerful Connectivity
Echo 20 Thunderbolt 5 SecureDock incorporates three Thunderbolt 5 ports. One connects to and powers your computer — ideal for laptops with only one or two Thunderbolt ports, since it handles charging and data through a single connection. The other two support Thunderbolt 5, 4, and 3 devices — as well as USB4 and USB 3 peripherals — and each provides 15W for demanding bus-powered devices. If supported by your computer, you can also connect one or two additional displays.

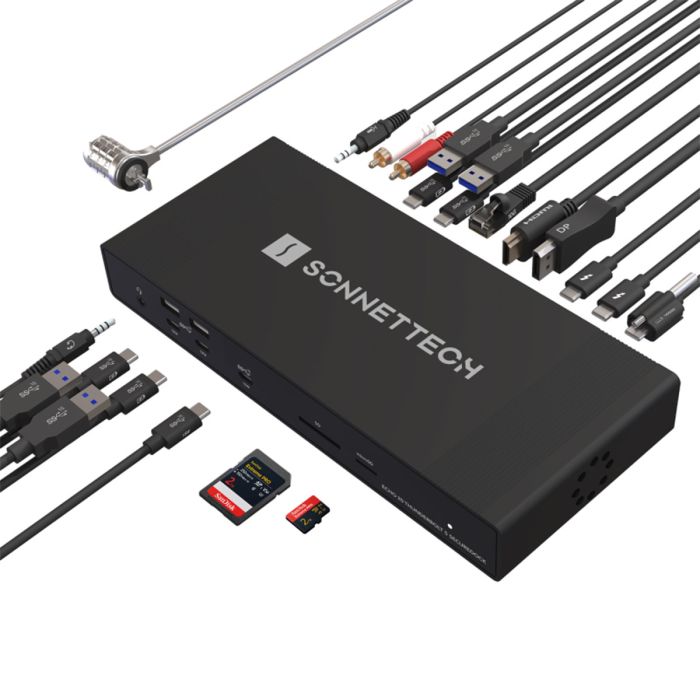

All the Ports: Thunderbolt 5, Display, 10GbE Networking, Audio, and USB Connectivity In One Powerful Dock

• Combo Audio Jack – Plug in your headset or headphones and experience high-resolution lossless audio.
• Two 10 Gbps USB-A Ports (7.5W) – Connect fast thumb drives, audio interfaces, printers, web cameras.
• Two 10 Gbps USB-C Ports (with 7.5W Charging) – Connect fast USB-C SSDs; connect and charge your phone.
• One 10 Gbps USB-C Port (with 15W Charging) – Connect a fast USB-C SSD; connect and charge your phone even faster.
• UHS-II SD Card Slot – Ingest media from SD cards.
• UHS-II microSD Card Slot – Ingest media from microSD cards.
• Host Thunderbolt Port – Connect your computer; charges a laptop with 140W of power.
• Thunderbolt 5 Peripheral Ports – Connect lightning fast Thunderbolt peripherals, or displays.
• Video Output (DP) Port – Connect a 4K 144Hz display without adapter.
• Video Output (HDMI) Port – Connect an 8K* 60Hz display without adapter.
• 10 Gigabit Ethernet Port – Connect to a high-speed network.
• Two 10 Gbps USB-A Ports (7.5W) – Connect fast thumb drives, audio interfaces, printers, web cameras.
• Two 10 Gbps USB-C Ports (with 7.5W Charging) – Connect fast USB-C SSDs; connect and charge your phone.
• Audio Line Out Jacks – Connect to powered speakers, an amplifier, or an audio interface to provide high-resolution lossless audio.
• Microphone Jack – Connect a microphone and capture high-resolution lossless audio voice recording.

Powerful 10 Gbps USB-A and USB-C Ports
Echo 20 Thunderbolt 5 SecureDock delivers powerful USB 3 connectivity with four 10 Gbps USB-A ports, and five 10 Gbps USB-C charging ports — including two on the front, two on the back, and a front 15W USB-C charging port. All ports support super-fast 10 Gbps USB NVMe SSDs at full speed.

Echo 20 doesn’t skimp on power either — each port provides 7.5W (or 15W) to ensure that drives with higher peak power requirements mount and operate reliably. An added benefit of the USB-C ports is they support device charging even when the computer is off, asleep, or disconnected.

More Pixels: Drive 4K, 5K, 6K, and up to 8K Displays via Thunderbolt
Depending on your computer’s graphics capability and whether a DisplayPort or HDMI monitor is connected to one of the dock’s built-in display outputs, the Echo dock’s Thunderbolt ports can support as many as three displays — at 4K, 5K, or 6K resolution, and up to 8K*.

Connect Thunderbolt 5, 4, 3, or USB-C monitors directly, or use a Thunderbolt-compatible adapter (sold separately) to connect HDMI, DisplayPort, and other display types.

Charge It Up – Leave the Power Adapter In Your Backpack
Connected to your laptop computer with the included Thunderbolt 5 cable, Echo 20 Thunderbolt 5 SecureDock provides up to 140W of power (Power Delivery), enabling it to power and charge your computer while connected, even when not in use, allowing you to leave your computer’s charger packed away.

Media Readers – Fast UHS-II SD and microSD 4.0 Card Readers
The included SD and microSD card slots are compatible with SD, SDHC, and SDXC; and microSD, microSDHC, and microSDXC memory cards, respectively, and support 320 MB/s read speeds with UHS-II SDXC and microSDXC cards to quickly offload images and video files.

Security

• Connect It Securely: Thunderbolt 5 Cable and ThunderLok Included - The included Thunderbolt cable delivers Thunderbolt 5’s full bandwidth and power delivery performance, and is compatible with Thunderbolt 5, 4, and 3, and USB4 computers. A provided ThunderLok connector lock helps prevent accidental disconnections from the SecureDock.
• Physical Security: Kensington Lock Ready - Secure the Echo dock with a Kensington lock (sold separately). The dock is compatible with Standard, MicroSaver, and MicroSaver 2 locks.
