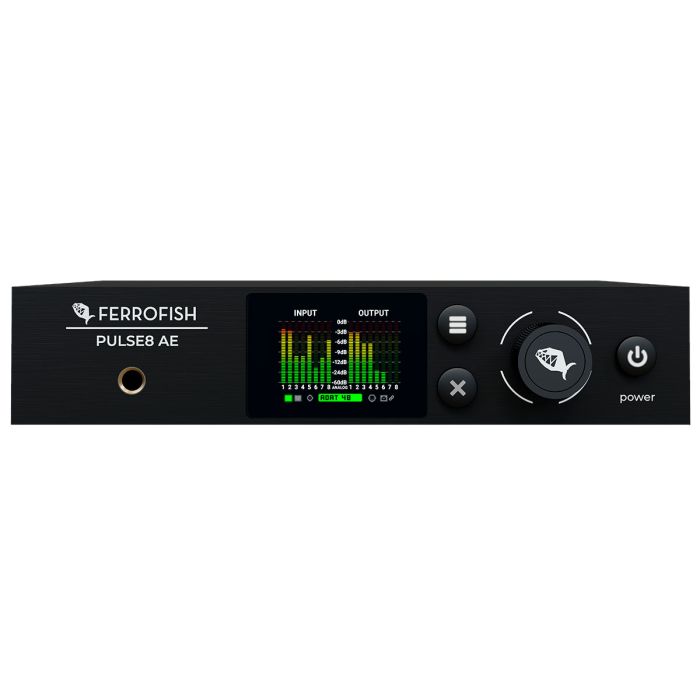

Ferrofish Pulse 8 AE

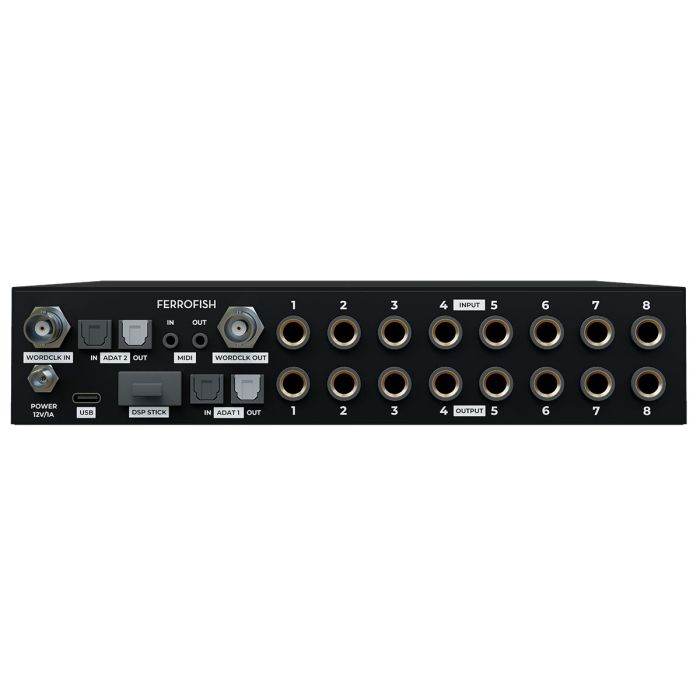

Analogue I/O:

• 8 x balanced TRS inputs (¼-inch)
• 8 x balanced TRS outputs (¼-inch)

ADAT Connectivity:

• 2 x ADAT input ports
• 2 x ADAT output ports
  Supports SMUX for higher sample rates (up to 96 kHz with 8 channels via SMUX/2 or 48 kHz with 16 channels)

Clocking:

• Word Clock input and output (BNC connectors)
• Internal clock with high stability or external sync via ADAT or Word Clock

Signal Monitoring:

• High-resolution front display for signal level monitoring (both input and output)
• Clear visual feedback with multi-coloured LED meters

Controls:

• Front-panel control knob and buttons for quick navigation and configuration

Connectivity:

• USB-C for remote configuration using Ferrofish RemoteFish software
• MIDI input/output for firmware updates or potential future features

Power:

• External 12V/1A power supply

Form Factor:

• Compact design, suitable for rack-mounted or desktop use

Headphone Output

• 6.3mm jack output
• Amplification power adjustable in four stages
• Digital volume control with 1 dB resolution
• Dedicated monitoring path via a separate ESS DAC

DSP

• Expandable via optional DSP stick

PLL (Phase-Locked Loop)

• Digitally controlled PLL with active jitter reduction

Internal Wordclock

• 125 MHz oscillator with high precision
• Initial accuracy: ±1.5 ppm
• Drift over the temperature range: ±2.5 ppm
• Aging: ±1 ppm

Power Supply

• Voltage: 12 V at a maximum of 1 A
• Connector: 2.54 mm barrel jack with locking screw

Fuse

• Polyfuse, internal, self-resetting

Power Adapter

• 12 V, 3 A (or 12 V, 1 A)
• Positive pin
• Included in the package

Power Consumption

• Nominal: 12 VA
• Standby: Below 1 VA

Operating Temperature Range

• +5 °C to +45 °C

Humidity

• Maximum: <75 %, non-condensing

Weight

• 1 kg

Dimensions

• Size: 13.5 cm (D) x 22 cm (W) x 4.4 cm (H) (1U)
     (Dimensions exclude knobs and connectors)
