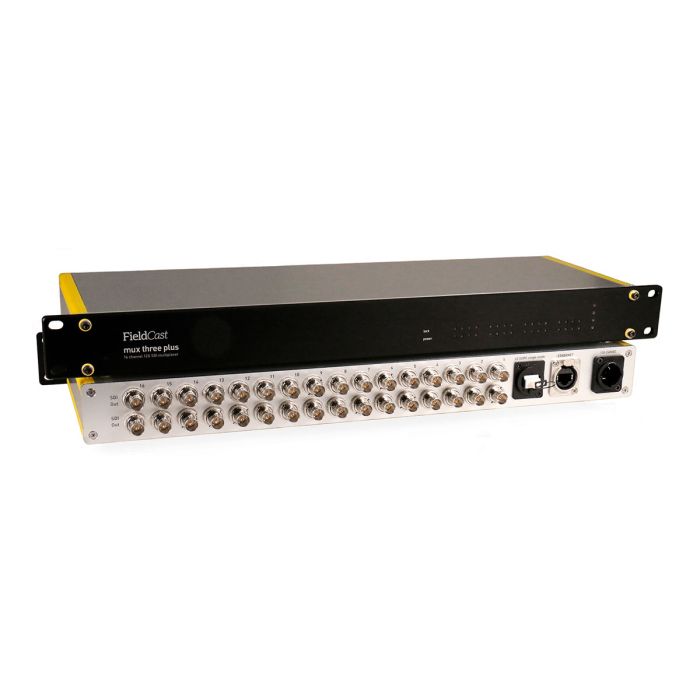

FieldCast Mux/Demux Three 12G Plus
16x SDI in/out + Ethernet over one fiber strand
SKU: co145
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Mux Three Plus 12G and its twin brother Demux Three Plus 12G allow you to transport eight channels of 12G SDI video plus full duplex 1Gb Ethernet over just one fiber optic channel.
Is your infrastructure such that you have access to one single mode [simplex] fiber optic connection, Mux Three Plus and Demux Three Plus can help you to get this all done, plain and simple.
Or else, just use Mux Three Plus and Demux Three Plus in live events environments and run video plus ethernet using just one [simplex] fiber optic cable as a connection between the two units.
No hidden compression involved. All 12G video signals preserve full data integrity. What goes in comes out, unchanged. And the the ethernet connection simply behaves like a Cat5 cable connecting your hubs.
mux three plus 12G
- 16 channel SDI input to 1 channel fiber optic output multiplexer, plus 1Gb Ethernet fiber extender
- 1RU all aluminum enclosure design
- sixteen 12G (11.88Gb) SDI input channels [1], each with SDI loopthrough [2]
- 75ohm BNC connectors for all SDI inputs and loopthrough outputs
- compiles with SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M, SMPTE ST 2081 and SMPTE ST 2082
- accepts all SD, HD standards up to 1080p60
- 9/125 single mode fiber optic technology
- one LC single mode [U]PC fiber optic channel [COM] for all SDI signals and ethernet [3]
- one LC single mode [U]PC fiber optic upgrade [UPG] [3]
- Ethernet protocol: IEEE802.3U IEEE802.3z 1000Base-TxFx
- UTP RJ-45 connecter for Ethernet, full duplex or half duplex [10]
- black front panel with 2mm, warm white led indicators
- one led indicator for power [5]
- led indicators for channel module activity [6] input activity [7], TP/LNK [8] and 1Gb [9]
- power consumption <50W
- proprietary hybrid WDM multiplexing technology for ultra low dispersion
- minimum distance between Mux and Demux > 10km on all wavelenths
- 110-240VAC input with PowerCon connector [11]
- dimensions: 482[W] x 155[D] x 43 [H]mm
- weight: 2090 grams
- comes with manual and local power cord
- total weight boxed product: 2200 grams
demux three plus 12G
- 1 channel fiber optic input to 16 channel SDI output demultiplexer, plus 1Gb Ethernet fiber extender
- 1RU all aluminum enclosure design
- sixteen 12G (11.88Gb) SDI channels with dual SDI output [1][2]
- 75ohm BNC connectors for all SDI outputs
- compiles with SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M, SMPTE ST 2081 and SMPTE ST 2082
- accepts all SD, HD and UltraHD standards up to 2160p60
- 9/125 single mode fiber optic technology
- one LC single mode [U]PC fiber optic input [COM] for all SDI signals and ethernet [3]
- one LC single mode [U]PC fiber optic upgrade [UPG] [4]
- Ethernet protocol: IEEE802.3U IEEE802.3z 1000Base-TxFx
- UTP RJ-45 connecter for Ethernet, full duplex or half duplex [10]
- black front panel with 2mm, warm white led indicators
- one led indicator for power [5]
- led indicators for channel module activity [6], input activity [7], TP/LNK [8] and 1Gb [9]
- power consumption <40W
- proprietary hybrid WDM demultiplexing technology for ultra low dispersion
- minimum distance between Mux and Demux > 10km on all wavelenths
- 110-240VAC input with PowerCon connector [11]
- dimensions: 482[W] x 155[D] x 43 [H]mm
- weight: 2100 grams
- comes with manual and local power cord
- total weight boxed product: 2200 grams
