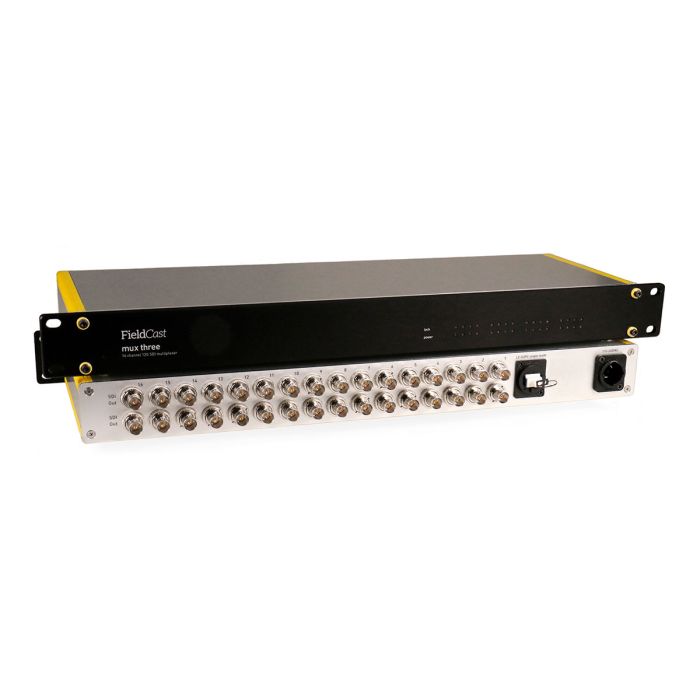

FieldCast Mux/Demux Three 12G
16x SDI in/out
SKU: co144
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Mux Three 12G and its twin brother Demux Three 12G allow you to transport sixteen independent channels of 12G SDI video over just one single mode fiber optic channel.
Is your infrastructure such that you have limited access to individual fiber optic connections, Mux Three and Demux Three can help you to run multiple channels of video wothout the need for seperate cables.
Or else, do you want to roll out a minimum number of cables in live events environments, just use Mux Three and Demux Three, multiples up to eight channels of video and get them from A to B using only one strand of fiber!
No hidden processing involved. All 12G video signals preserve full data integrity. What goes in comes out, unchanged.
mux three 12G
- 16 channel SDI input to 1 channel fiber optic output multiplexer
- 1RU all aluminum enclosure design
- 9/125 single mode fiber optic technology
- sixteen 12G (11.88Gb) SDI input channels [1], each with SDI loopthrough [2]
- 75ohm BNC connectors for all SDI inputs and loopthrough outputs
- compiles with SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M, SMPTE ST 2081 and SMPTE ST 2082
- accepts all SD, HD and UltraHD standards up to 2160p60
- one LC single mode [U]PC fiber optic output [COM] channel [3]
- one LC single mode [U]PC fiber optic upgrade [UPG] channel [4]
- black front panel with 2mm, warm white led indicators
- one led indicator for power [5]
- sixteen led indicators for channel module activity [6]
- sixteen led indicators for SDI signal input activity [7]
- power consumption <40W
- proprietary hybrid WDM multiplexing technology for ultra low dispersion
- minimum distance between Mux and Demux > 10km on all wavelenths
- 110-240VAC input with PowerCon connector [8]
- dimensions: 482[W] x 155[D] x 43 [H]mm
- weight: 2070 grams
- comes with manual and local power cord
- total weight boxed product: 2200 grams
demux three 12G
- 1 channel fiber optic input to 4 channel SDI output demultiplexer
- 1RU all aluminum enclosure design
- 9/125 single mode fiber optic technology
- eight 12G (11.88Gb) SDI channels with dual output [1]
- 75ohm BNC connectors for all SDI outputs
- compiles with SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M, SMPTE ST 2081 and SMPTE ST 2082
- accepts all SD, HD and UltraHD standards up to 2160p60
- one LC single mode [U]PC fiber optic input [COM] channel [2]
- one LC single mode [U]PC fiber optic upgrade [UPG] channel [3]
- black front panel with 2mm, warm white led indicators
- one led indicator for power [4]
- eight led indicators for channel module activity [5]
- eight led indicators for SDI signal input activity [6]
- power consumption <40W
- proprietary hybrid WDM demultiplexing technology for ultra low dispersion
- minimum distance between Mux and Demux > 10km on all wavelenths
- 110-240VAC input with PowerCon connector [7]
- dimensions: 482[W] x 155[D] x 43 [H]mm
- weight: 1800 grams
- comes with manual and local power cord
- total weight boxed product: 1900 grams
