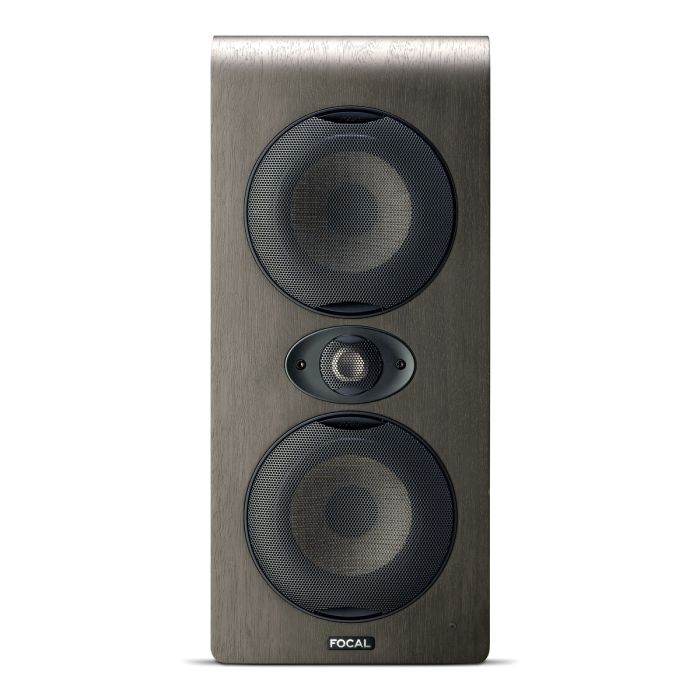

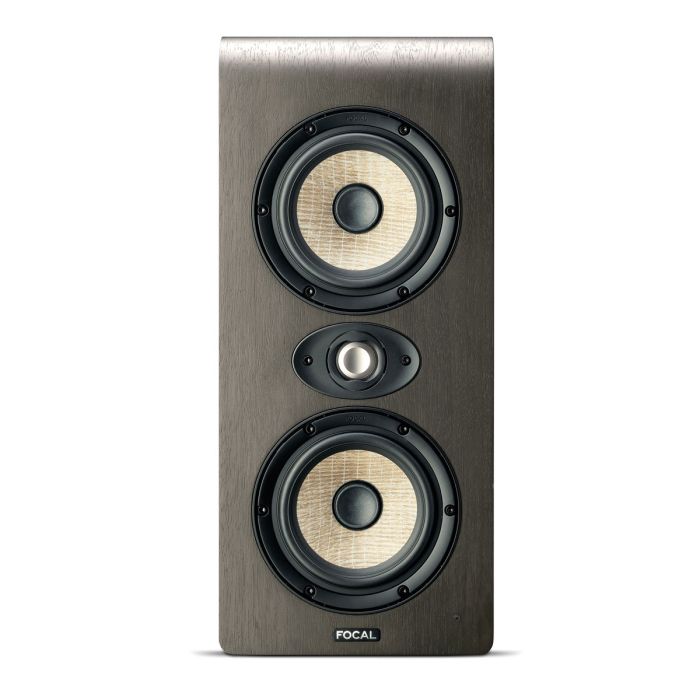

Focal Shape Twin Active Studio Monitor (Single)
Two 5" Woofer Studio Monitor
MPN: FO-SHAPETWIN SKU: FO-SHAPETWIN
Shape Twin is the latest edition to Focal's revered Shape range and features the same M-shaped Aluminium/Magnesium inverted dome tweeter, passive radiator design and revolutionary flax/glass drivers.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Shape Twin is the latest edition to Focal's revered Shape range and features the same M-shaped Aluminium/Magnesium inverted dome tweeter, passive radiator design and revolutionary flax/glass drivers.
The Shape Twin's unique 2.5-way design equips the monitor with extended bass control in low/mid range registers, a particularly useful attribue in smaller mixing spaces.
Its broad frequency response and high SPL offers a detailed portrayal of the whole audio array to ensure the most versatile mixing experience possible.
- Tweeter with very low directivity for a exible sweet spot

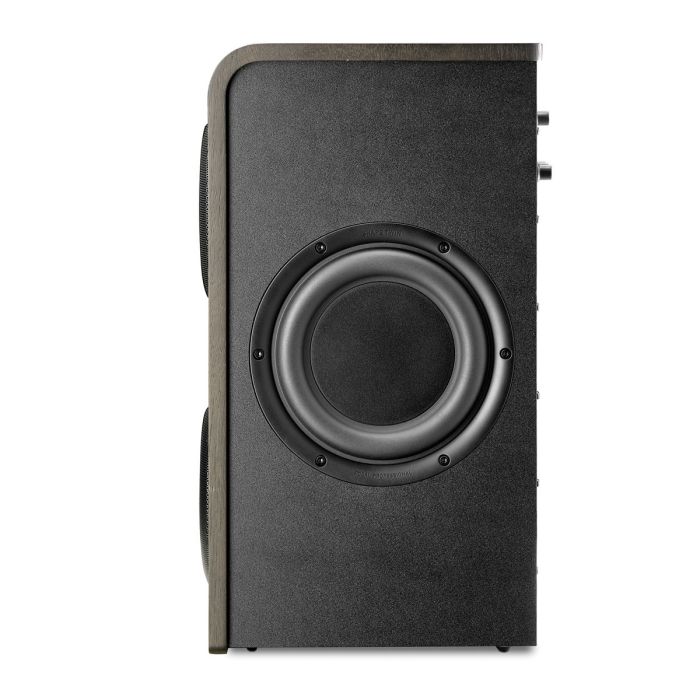

- Designed without a port (double passive radiator) allowing it to be placed near a wall
- 2.5 channels to provide optimal control of bass and low mid-range registers
- Numerous settings for optimal integration
- Accurate control, even in the very high frequencies
- Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers
- Fastening mechanisms for mounting to the ceiling or a wall (fastening accessories not supplied)

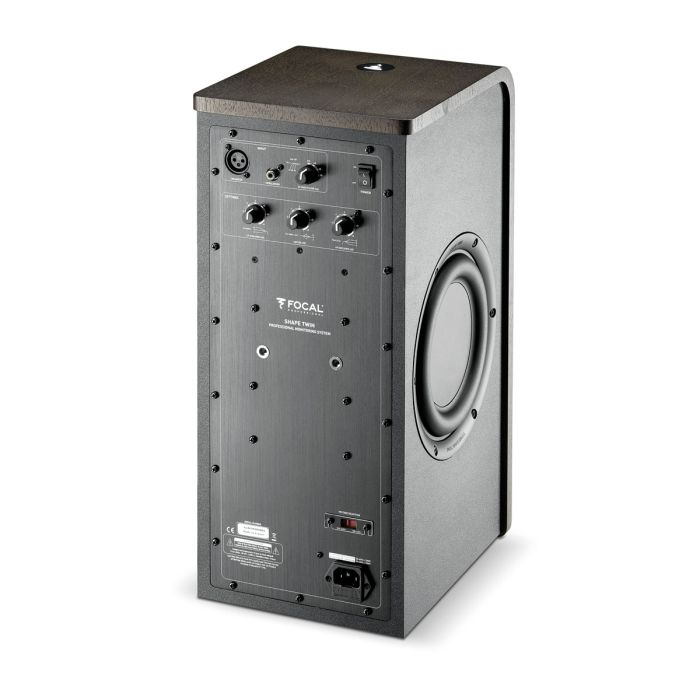

Connections
- Balanced Input: XLR 10 kΩ
- Unbalanced Input: RCA connections 10kΩ with sensitivity compensation
Controls
- HF Shelving (4.5 - 35kHz): Adjustable, +/-3dB
- LF Shelving (35 - 250Hz): Adjustable, +/-3dB
- EQ Low-Mid Frequencies (160Hz, Q factor = 1): Adjustable, +/- 3dB
- High Pass Filter: Adjustable full range 45/60/90Hz
- LED (Front Panel): Power off/on/standby
Electronics
- Amplifier HF: 1x 50W, Class AB
- Amplifier LF: 2x 80W, Class AB
- Power Connection: IEC inlet and detachable power cord
- Power Supply: 220 - 240V / 100-120V switchable (T2AL-250V / T3.15AL-250V fuse)
Performance
- Frequency Response: 40Hz - 35kHz (+/- 3dB)
- SPL: 110.5dB SPL (peak at 1m)
Physical Properties
- Dimensions: 478 (H) x 211 (W) x 279 (D) mm
- Weight: 11kg
Transducers
- HF: 1x 'M'-shaped Aluminium/Magnesium tweeter
- LF: 2x 5" Flax Cone woofers
