Focusrite Pro ISA ADN2 - 2-Channel A-D Card for ISA One
Two-channel A-D card for ISA One, including Dante connectivity
MPN: MOIF2CADC SKU: MOIF2CADC
SA ADN2 is an optional two-channel A-D card that provides high-quality analogue-to-digital conversion for the ISA One mic preamp and DI.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days

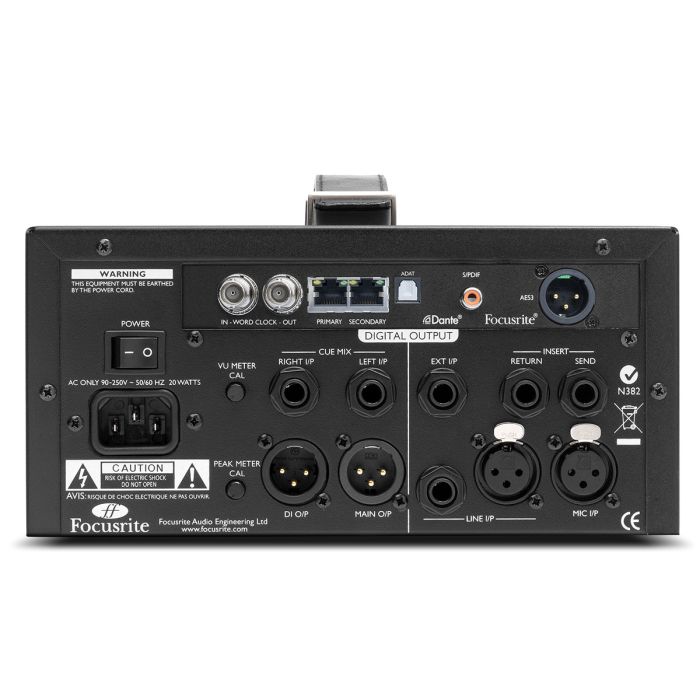

With the introduction of the ISA ADN2, the classic ISA mic pre can be implemented directly on a Dante network, providing console-grade preamps to the most advanced of audio networks. ISA ADN2 is an optional two-channel A-D card that provides high-quality analogue-to-digital conversion for the ISA One mic preamp and DI. Featuring Dante, AES3, ADAT and S/PDIF connectivity, the card operates at sample rates up to 24-bit/192kHz.

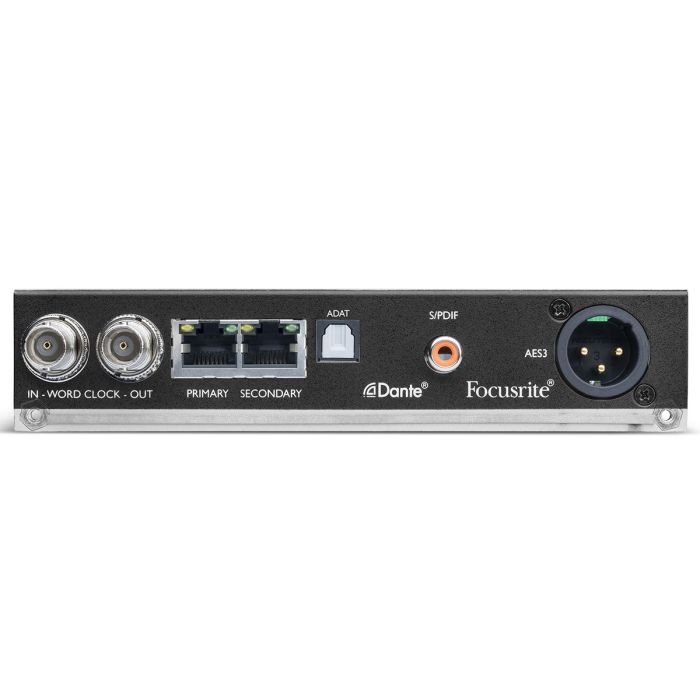

The card offers a familiar set of standard professional connectors with primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output and RCA connector for S/PDIF output. Word Clock I/O on BNC connectors allows synchronisation with many external devices.
Dante outputs on the card provide ISA One with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller. Both RedNet Control and Dante Controller software are included.
System Requirements:
Mac OSX
- 10.12 macOS Sierra, 10.13 macOS High Sierra, 10.14 macOS Mojave, 10.15 macOS Catalina
Windows
- Windows 7 (32/ 64 bit), Windows 8 (32/ 64 bit), Windows 10 (32/ 64 bit
Audio Performance
- 0 dBFS Reference Levels : 22dBu
- Frequency Response: 20Hz - 20kHz ±0.1dB
- THD+N: -105dB (0.0006%) unweighted, 20Hz - 20kHz; -1dBFS input
- Noise in Presence of Signal: -121dBu 'A'-Weighted (typical)
- Dynamic Range: 121dB 'A'-weighted (typical), 20Hz - 20kHz
Digital Performance
- Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
- Clock Sources: Internal or Word Clock
Crosstalk
- Input to Input: < -100dB; 20Hz - 20kHz (driven channel at -20dBFS)
Front Panel Output Connectivity
Dante
- Channel Count: 2 x Dante channels
- Output: 2 x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above).
AES3
- Channel Count: 2 x AES3 channels
- Output: 1 x Male XLR
ADAT
- Channel Count: 2 x ADAT channels
- Output: 1 x TOSLINK connectors
- Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 - 2
- Channel Assignments @ 88.2 kHz, 96 kHz: SMUXI: Port 1 = Channels 1 - 2
- Channel Assignments @ 176.4 kHz, 192 kHz: SMUXII: Port 1 = Channels 1 - 2
S/PDIF
- Channel Count: 2 x S/PDIF channels
- Output: 1 x RCA phono socket
Word Clock
- Word Clock Input: 1 x BNC 75Ω port (Switchable Termination)
- Word Clock Output: 1 x BNC 75Ω port
- ISA ADN2 Two-channel A-D Card
- Safety Information cut sheet (Double-Sided A5 (multilingual))
- Focusrite Pro Important Information Guide
