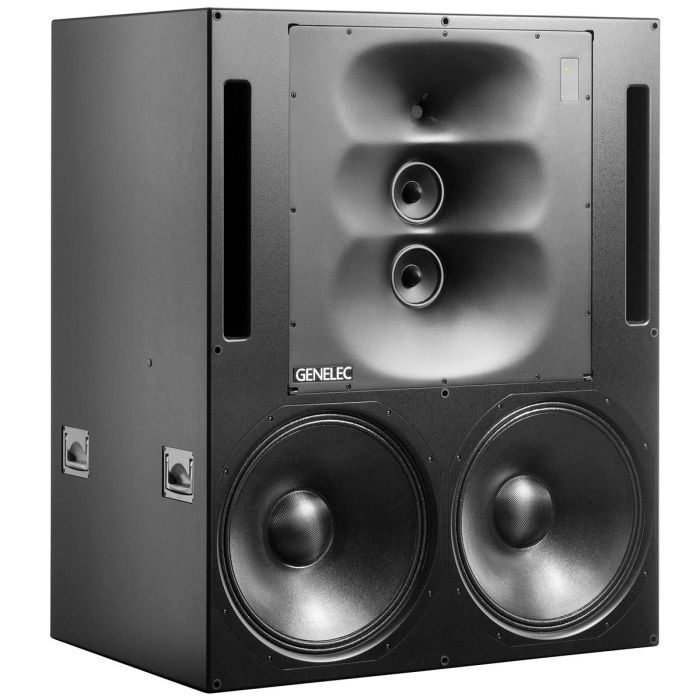

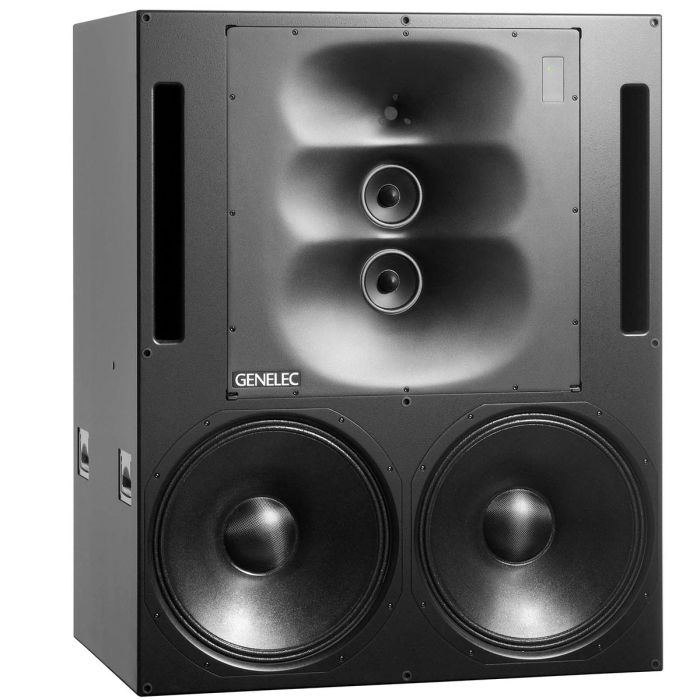

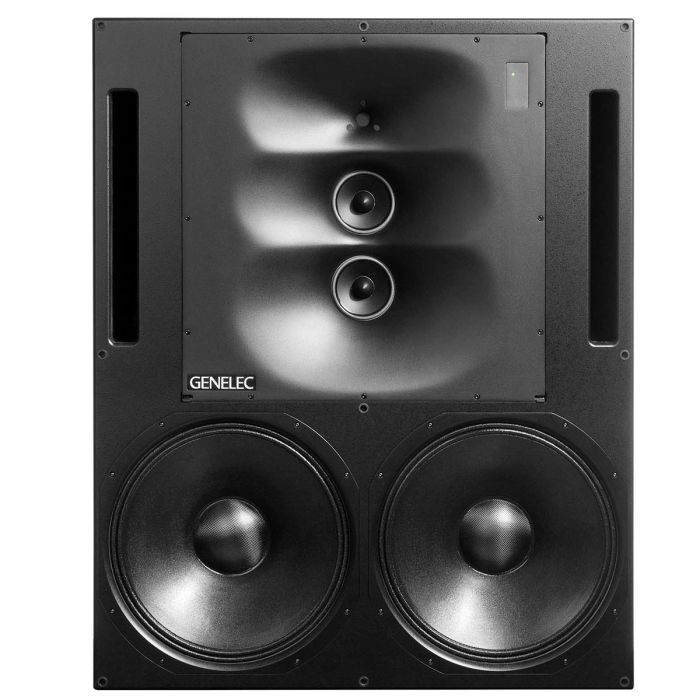

Genelec 1236AP SAM Studio Monitor
1236A Smart Active Monitor, Three-way
MPN: 1236AP SKU: 1236AP
The flagship of the Genelec range. The intelligence of the 1236A is seamlessly integrated into the finest example of acoustic engineering yet produced in more than 40 years of Genelec history.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Special Order Item - Call for Lead Time
Power and finesse
This is where power and finesse combine to create a truly extraordinary main monitor. Producing peak SPLs of over 130 dB, the 1236A’s staggering muscle is backed up with exquisitely precise imaging and a wide, neutral sweet spot that is the natural choice for satisfying multiple listeners in larger control rooms. All the vibe and energy you want, with detail to match.
Ultimate control
The 1236A offers new levels of control through its tight integration with the GLM calibration software. GLM analyses your room’s characteristics and intelligently tailors the monitors’ frequency response, level, distance delay and more to provide a truly optimised listening experience - and mixes that translate perfectly to other rooms and systems.
- Active Crossovers
- Directivity Control Waveguide (DCW™) Technology
- Intelligent Signal Sensing (ISS™) Technology
- Optimised Amplifiers
- Protection Circuitry
- Smart Active Monitoring (SAM™) and GLM™ calibration technology
- Room Response Compensation
- SPL: 130 dB
- Amplifier Power: 2 X 1000 W Bass (Class D) + 2 X 400 W Midrange (Class D) + 250 W Treble (Class D)
- Frequency Response: 17.5 Hz - 26 kHz ("-6 dB")
- Accuracy of Frequency Response: ± 2 dB (21 Hz - 20 kHz)
- Driver Dimensions: 2 x ⌀ 458 mm Bass + 2 x ⌀ 125 mm Midrange + ⌀ 25 mm
- Dimensions: H 1180 x W 960 x D 650 mm
- Weight: 182 kg / 401.2 lb

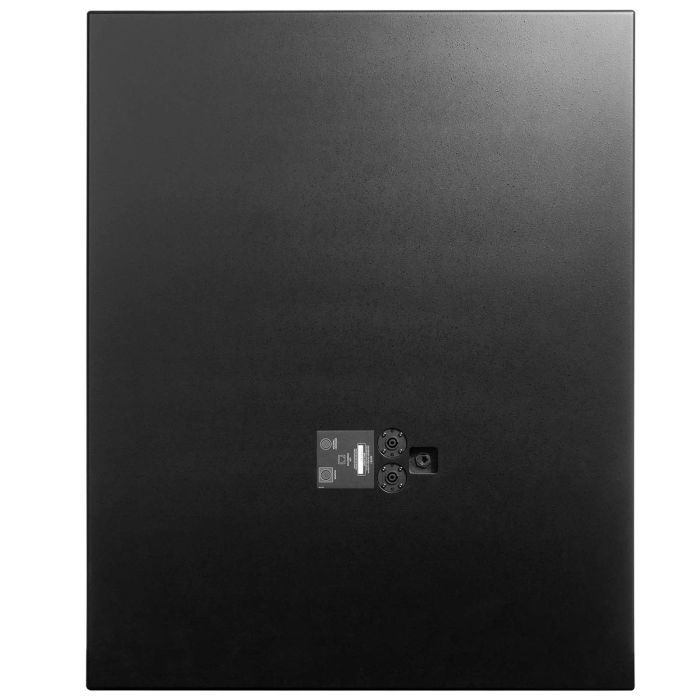

- Connections:
- 1 x XLR Analog Input
- 1 x XLR AES/EBU Input
- 1 x XLR AES/EBU Output
- 2 x RJ45 Control
- Warranty: 2 years parts-and-labour (extended to 5 years with free registration).
- GLM Calibration: Requires GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
- 1 x 1236A monitor
- 1 x individually calibrated RAM-XL amplifier unit
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x RJ45 cable 10 m
- 2 x 4-pole Speakon cable 10 m
- 1 x operating manual
