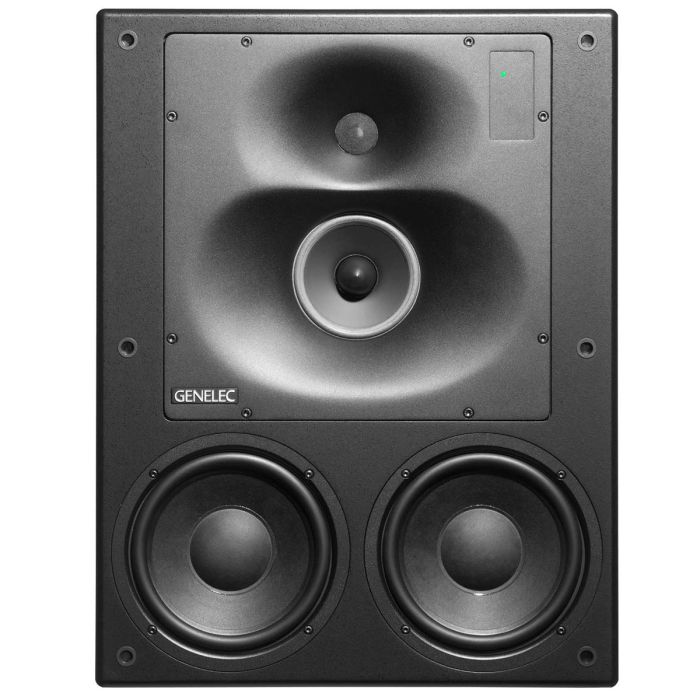

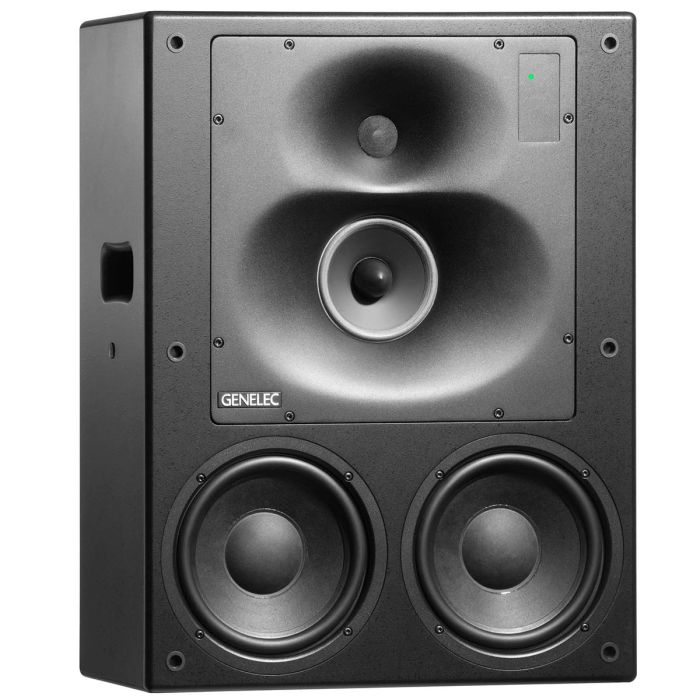

Genelec 1238DFM SAM Studio Monitor
1238DFM Smart Active Monitor, Shallow Three-way
MPN: 1238DFM SKU: 1238DFM
The super-compact dimensions of the 1238DF allow it to partner with an accompanying subwoofer to deliver main monitor performance in rooms where space is at a real premium.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 days
Neutral and uncoloured

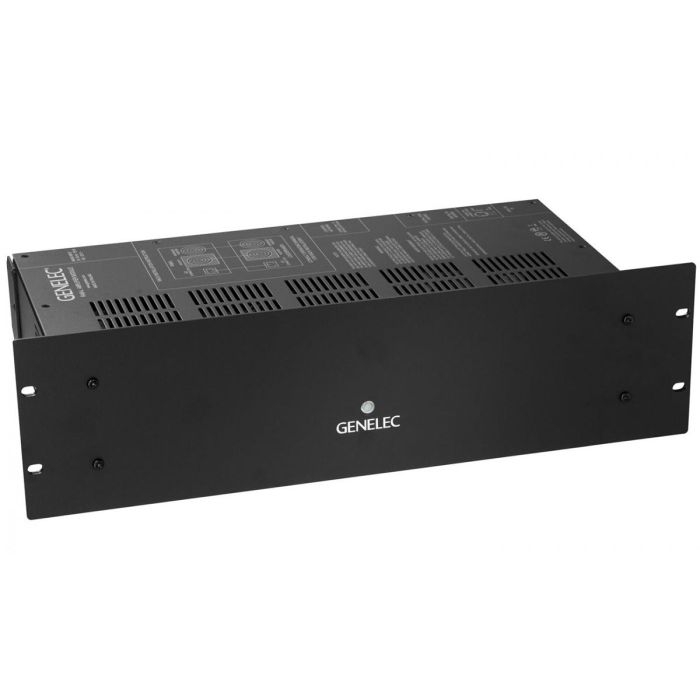

Ideal for music recording, post-production, broadcast and mastering, the 1238DF is the perfect blend of adaptable amplification, contemporary technology and classic design. With its controlled directivity, it offers all the neutrality and uncoloured performance of a large format Genelec monitor - but with a remote rack-mounting RAM-L amplification module that enables its amazingly modest and slimline cabinet size.
Configure, calibrate and control
The 1238DF is designed to partner with a complementary Genelec smart subwoofer, and integrates closely with their GLM software via which the whole system can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. From simple stereo to complex immersive formats, the 1238DF and GLM combine seamlessly to help you produce mixes with exceptional translation to other rooms and systems.
- Active Crossovers
- Directivity Control Waveguide (DCW™) Technology
- Intelligent Signal Sensing (ISS™) Technology
- Optimised Amplifiers
- Protection Circuitry
- Smart Active Monitoring (SAM™) and GLM™ calibration technology
- SPL: 117 dB
- Amplifier Power: 500 W Bass (Class D) + 250 W Midrange (Class D) + 200 W Treble (Class AB)
- Frequency Response: 50 Hz - 20 kHz ("-6 dB")
- Accuracy of Frequency Response: ± 2 dB (57 Hz - 20 kHz)
- Driver Dimensions: 2 x ⌀ 210 mm Bass + ⌀ 125 mm Midrange + ⌀ 25 mm Treble
- Dimensions: H 610 x W 470 x D 235 mm
- Weight: 36 kg / 79.4 lb

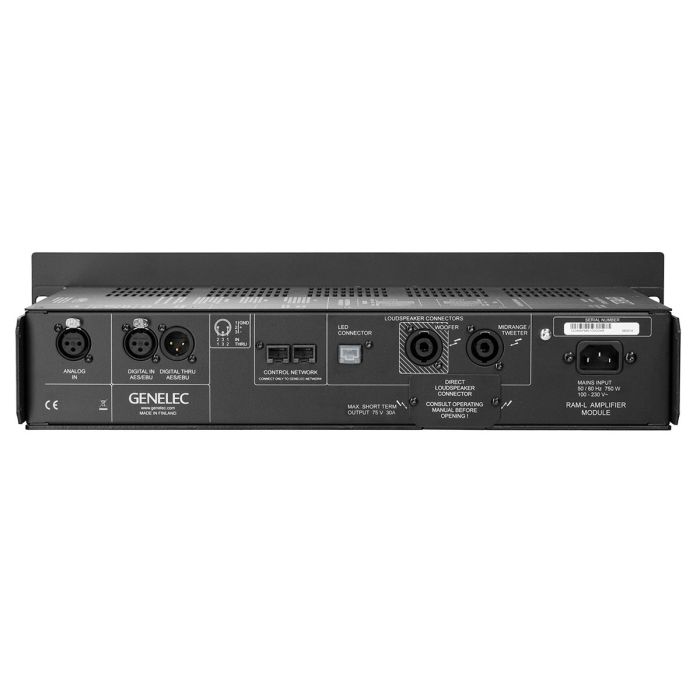

- Connections:
- 1 x XLR Analog Input
- 1 x XLR AES/EBU Input
- 1 x XLR AES/EBU Output
- 2 x RJ45 Control
- Warranty: 2 years parts-and-labour (extended to 5 years with free registration).
- GLM Calibration: Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
- 1 x 1238DF monitor
- 1 x individually calibrated RAM-L amplifier unit
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x RJ45 cable 10 m
- 2 x 4-pole Speakon cable 10 m
- 1 x operating manual
