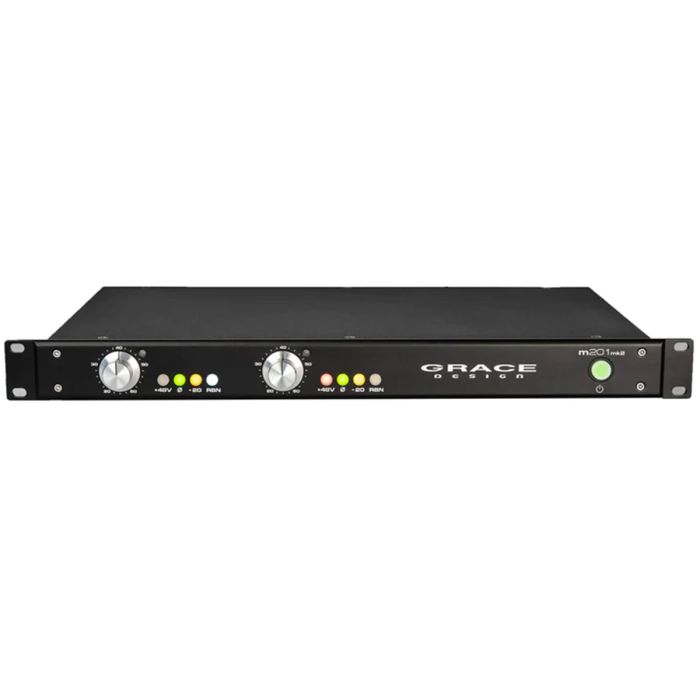

Grace Design M201 mk2 - 2 Channel Mic Preamp
Two-channel Microphone Preamp
SKU: M201-II
Like the updated m801mk2, the freshly redesigned m201mk2 provides a full serving of Grace Design's unique brand of audio performance. It delivers massive headroom, ultra-wide bandwidth and a very open, musical character.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Like the updated m801mk2, the freshly redesigned m201mk2 provides a full serving of Grace Design's unique brand of audio performance. It delivers massive headroom, ultra-wide bandwidth and a very open, musical character.
The fully balanced signal path has been refined, resulting in incredible dynamic range. A new power supply design provides the lowest noise performance we have ever achieved. This all means the new m201mk2 will translate a sonic picture of astonishing clarity and detail, which captures the essential character of the music being recorded.
Changes over the previous design find the m201mk2 more essential and a bit more paired down. Grace Design have eliminated the A/D option as this functionality is now best served buy their current m108 8 channel mic preamp A/D. They have eliminated the M+S matrix and a few other functions to really focused on making the finest, purist style 2 channel mic preamp they can.
These refinements also serve to bring the price down to where even more recording engineers can now afford Grace Design flagship mic preamp performance.
The m201mk2 will bring out the very best in your entire microphone collection. Your favorite large diaphragm mics will sound like they were intended, with detail and texture in extra measure. Your humble dynamics mics will come alive with newfound dynamics and clarity.
Ribbons mics will perform their best with the exclusive ribbon mic mode, which shifts the gain range up 10dB while deactivating 48V phantom power, bypassing the decoupling capacitors and optimizing the input impedance.
The m201mk2 is proudly covered by Grace Design's 20 year EON transferable warranty.
Frequency Response
- @ 20dB gain ± 3dB 150Ω source: 3.2Hz-530kHz
- @ 20dB gain ± 0.2dB 150Ω source: 14.8Hz-109kHz
- @ 40dB gain ± 3dB 150Ω source: 3.2Hz-500kHz
- @ 40dB gain ± 0.2dB 150Ω source: 15.4Hz-103kHz
THD+N
- @ 20dB gain +20dBu out, 1kHz: <.0008%
- @ 40dB gain +20dBu out, 1kHz: <.0009%
- @ 60dB gain +20dBu out, 1kHz: <.0070%
Intermodulation Distorion / @40dB Gain +20dBu Out
- SMPTE/DIN 1:1 (50Hz, 7kHz): <.0007%
- SMPTE/DIN 4:1 (50Hz, 7kHz): <.009%
Noise - Referred To Input
- @60dB gain 50Ω source 22-22kHz: -130dB
- @60dB gain 50Ω source A weighting: -133dB
- @60dB gain 150Ω source 22-22kHz: -127dB
- @60dB gain 150Ω source A weighting: -127.5dB
- @40dB gain 50Ω source 22-22kHz: -127dB
- @40dB gain 50Ω source A weighting: -130dB
- @40dB gain 150Ω source 22-22kHz: -125dB
- @40dB gain 150Ω source A weighting: -128dB
- @20dB gain 50Ω source 22-22kHz: -117dB
- @20dB gain 50Ω source A weighting: -120dB
- @20dB gain 150Ω source 22-22kHz: -117dB
- @20dB gain 150Ω source A weighting: -119dB
Gain Range
- Default Mode: 18-64dB, 2dB steps
- Ribbon Mode: 28-74dB, 2dB steps
Gain Matching
- CH1-CH2 Over full gain range: <0.10dB
Phase Deviation
- @40dB gain 40Ω source 75Hz-45kHz: <3°
Crosstalk
- Any Channel @40dB gain 1kHz: -140dB
- Any Channel @40dB gain 10kHz: -130dB
CMRR
- @60dB gain, 3.5Vcm, 1KHz: >85dB
- @60dB gain, 3.5Vcm, 10KHz: >75dB
Phantom Power
- Voltage +48V: +/- 1.0V
- 6.8kΩ resistor match tolerance: +/- 0.1%
Maximum Output Level
- 1kHz, 100KΩ load: +28dBu
Peak LED
- Green Threshold: -16dBu Out
- Red Threshold: +16dBu Out
Impedance
- Input Nominal: 8100Ω
- Input Ribbon Mode: 20KΩ
- Input Pad Engaged: 1.3KΩ
- Output: 150Ω
Dimentions
- Weight: 4.6lbs (2.1kg)
- Height: 1.7” (43mm)
- Width: 19” (483mm)
- Depth 10.8” (274mm)
Power Supply Specs
- Power Consumption: 100-240VAC 50/60Hz 10 Watts max
