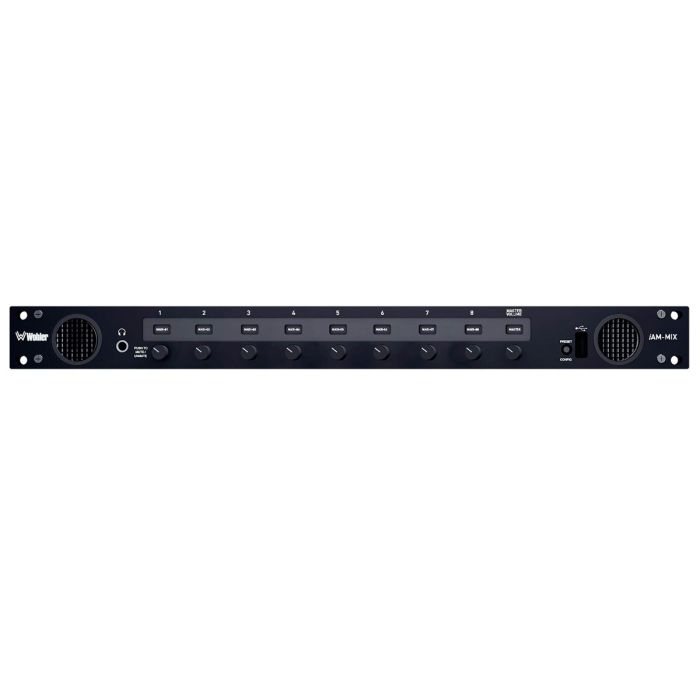

Wohler iAM-MIX8 Multi-Channel Audio Monitor

Audio Monitoring and Mixing from Multiple Sources Including Aoip. 8 Selectable Output Controls

MPN: WOHLER-iAM-MIX8 SKU: WOHLER-iAM-MIX8

$2,767.80

1RU Audio Monitoring from a range of mixable input sources. 8 selectable output controls. Includes OPT-ANLG only. OPT-Dolby N/A for iAM Mix.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Please call for lead time

Flexible. Adaptable. Future Proof.

Speciﬁcally designed for fast-paced OB, studio and live-to-air production environments, iAM-MIX provides intuitive audio signal monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Signal options include the latest IP formats: SMPTE 2110, SMPTE 2022, RavennaTM/AES67 and DanteTM

Choose from either 8 or 16 level controls, both with an independent master level control and instant mute capability and push-for-solo capability. Individual OLED display indicators show status, presence metering and channel name – which can be manually edited or automatically read from a network connected router.

Multiple units on the same network can be controlled via a browser-based user interface that supports fast conﬁguration with role-based authentication to protect critical setups. In short, iAM-MIX is the perfect solution for any application that requires a simple, compact solution for monitoring a range of audio signals.

Fast selection and summing of up to 8 audio channels, allowing quick muting and hold-for-solo
Master volume control that also provides a master mute/unmute
Channel names can be displayed for each input or pulled from a router
Built-in speakers, headphone jack, USB and Ethernet ports
A range of included and optional connectors and signal processing options, including SFP slots for future I/O and Ethernet inputs for IP-based I/O
Store and retrieve presets up to 64 presets (16 accessible on front panel)
Software upgradeable via USB or network, upgrade multiple units at once
APIs included for remote control

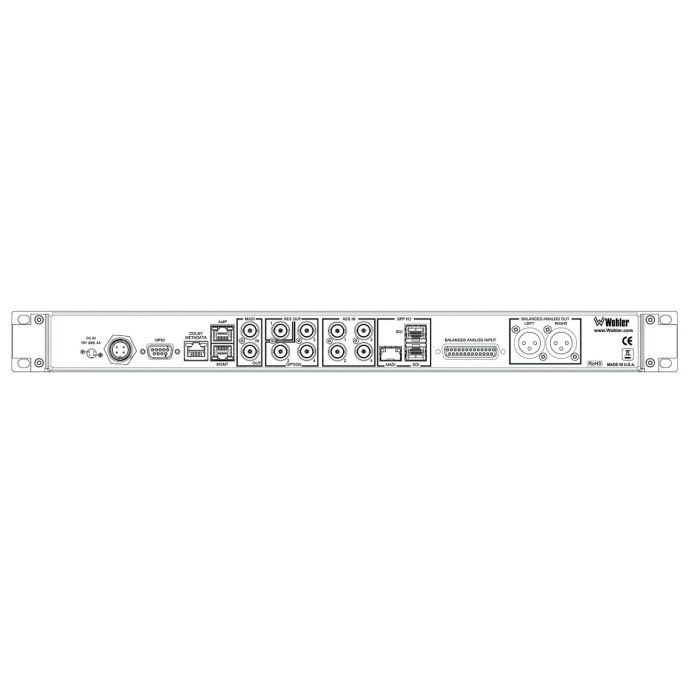

Signal I/O

3G/HD/SD-SDI Input: SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
3G/HD/SD-SDI Output:SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
AES3 Input: OPT-AES (829080): Enables decoding and monitoring of 4 AES inputs on BNC
AES3 Output: 1 AES output pair on BNC of mix to speakers
Analog Input: OPT-ANALOG (829093): 8 Analog Channels on DB-25 - INCLUDED AS STANDARD
Analog Output: 2 on XLR of mix to speakers
MADI Input: Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
MADI Output: Software Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
AES67 Input: Option: OPT-RAVENNA (829079) or OPT-DANTE (829078) Enables decoding and monitoring of AES67 Compliant Dante input streams.
Dante Input: OPT-DANTE (829078): Enables decoding and monitoring of Dante input streams.
Ravenna Input: OPT-RAVENNA (829079): Enables decoding and monitoring of Ravenna input streams.

Audio Specs

AES Input Sampling Rate: 48 kHZ
Analog Input Impedance: 40k Ohms balanced
Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise: Better than -68 dB below full output
Peak Acoustic Output @ 2 feet: 90 dB SPL @ 2 feet
Power Output: RMS Each Side:12W Continuous/24W Peak

Features

Level Meters: OLEDx8
Audio Channels (max): 8
Audio Mixing: Yes
Presets: Yes

Interfacing

Front Panel Controls: 8 Channel Volume/Mute Encoders, Preset/Configuration Switch; 16 Activity Display Strips
Remote User Interface: Yes
Headphone Jack: Yes
Ethernet GbE: Yes
USB Port: Yes
SFP Cage: Yes, 2 + 1

Physical

Rack Height: 1RU
Dimension Width: 19.0" (483mm)
Dimension Height: 1.75" (45mm)
Dimension Depth: 7.5" (191 mm)
Speakers: Yes
Net Weight: 6.5 lbs. (2.9 kg)
Shipping Weight: 8.5 lbs (3.9 kg)
Power Consumption: 30 Watts typical
Power Supply: External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Additional Options: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Channel; Set Solo; Channel; Source Select
