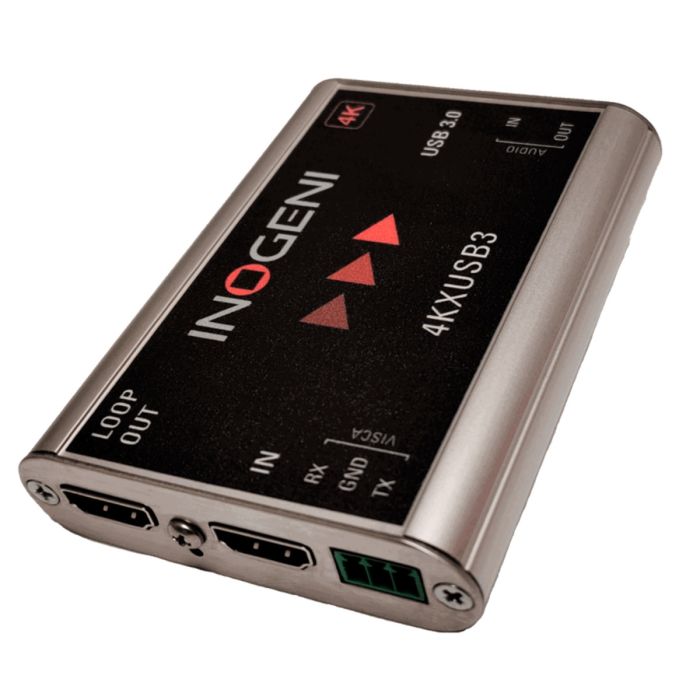

Inogeni 4K HDMI to USB 3.0 Converter with Xtras

4K Ultra HD to USB 3.0 with HDMI Loop and VISCA Port

MPN: INO-4KXUSB3 SKU: INO-4KXUSB3

$565.83

4KXUSB3 HDMI to USB 3.0 Converter with Xtras, that includes HDMI loop, VISCA camera controls and audio I/O. Easier connectivity and more versatility.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

4KXUSB3 HDMI to USB 3.0 Converter requires no drivers. It is the most reliable and convenient PC input to capture uncompressed video with audio from your HDMI equipment for recording, editing, videoconferencing and streaming applications.

It is compatible with Windows, macOS and Linux operating systems.

Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats and supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats.

HDMI capture to USB 3.0
HDMI loop output
VISCA port to control PTZ camera
Direct Show Compatible
Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM
Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
Hardware-based colour space and sampling conversion
Automatic scaling and frame rate conversion (UHD up-scaling not supported)
Customizable video processing functions
Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K
Supports multiple devices on the same PC
Powered from USB 3.0 port
Compatible with Windows, Mac OSX, Linux and Android
A USB 3.0 cable is included

HDMI Input

Connector: 1 x HDMI 1.4a
Video Resolution: 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,1280x800, 1024x768, 800x600, 640x480
Frame Rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Colour Space: RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling Rate: 297 MHz
Embedded Audio: Ch 1&2 48kHz LPCM
HDCP Copy Protection: INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

HDMI Loop Output

Connector: 1 x HDMI 1.4a
Video Resolution: Same as HDMI input

USB 3.0 Output

Connector: 1 x USB Type-C (USB 3.0)
Codec: YUY2 4:2:2 8-bit, NV12 4:2:0 12-bit, YV12 4:2:0 12-bit, I420 4:2:0 12-bit, 4K formats can only be transferred into the 4:2:0 pixel formats
Video Scaler: Automatic hardware based
Colour Space Conversion: Automatic hardware based
Sampling Conversion: Automatic hardware based
Frame Rate Conversion: Automatic hardware based
Audio: 2-channel LPCM audio from HDMI and/or from Audio Jack

Audio Input

Connector: 1 x 3.5mm analog audio jack (MIC or LINE level)

Audio Output

Connector: 1 x 3.5mm analog audio jack (LINE level)

PTZ Control

Connector: 1 x Terminal block for VISCA control from UVC interface

Compatibility

Operating System: NO driver installation necessary, Windows 7 and above (32/64-bit), Mac OSX 10.10 and above, Linux (kernel v2.6.38) and above
Host Requirements: USB 3.0
Motherboard: Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic
Cameras Supported: Cameras and camcorders with an HDMI output
Software Compatibility: UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.

Note to VAR/INTEGRATORS – this data is organized by product and may be duplicated for inclusion in a design or bid specs. It does vary from converter to converter. If you would like the same data in a .doc or .txt format please let us know.
