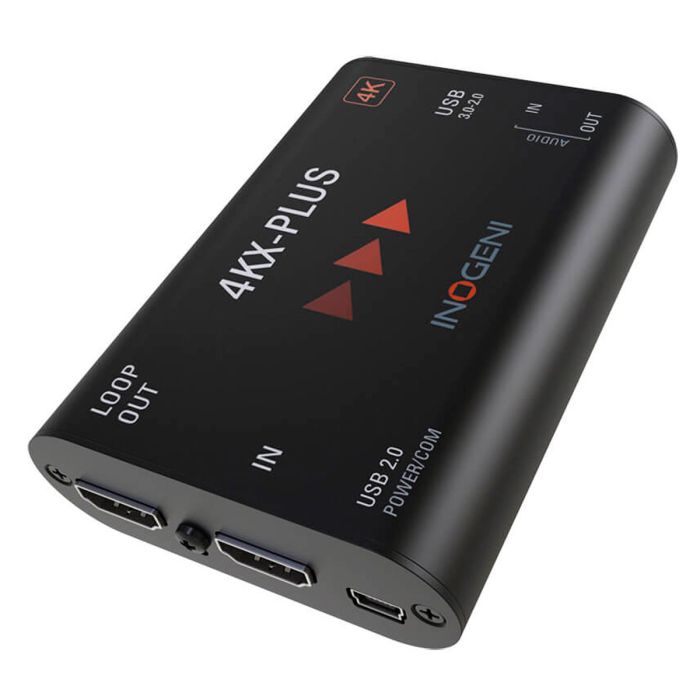

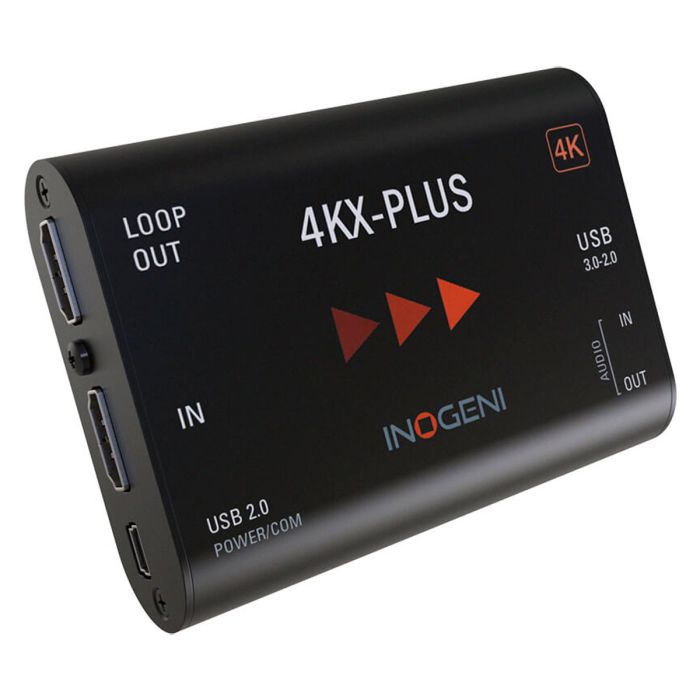

Inogeni 4KX-PLUS – HDMI to USB 3.0 Capture Device

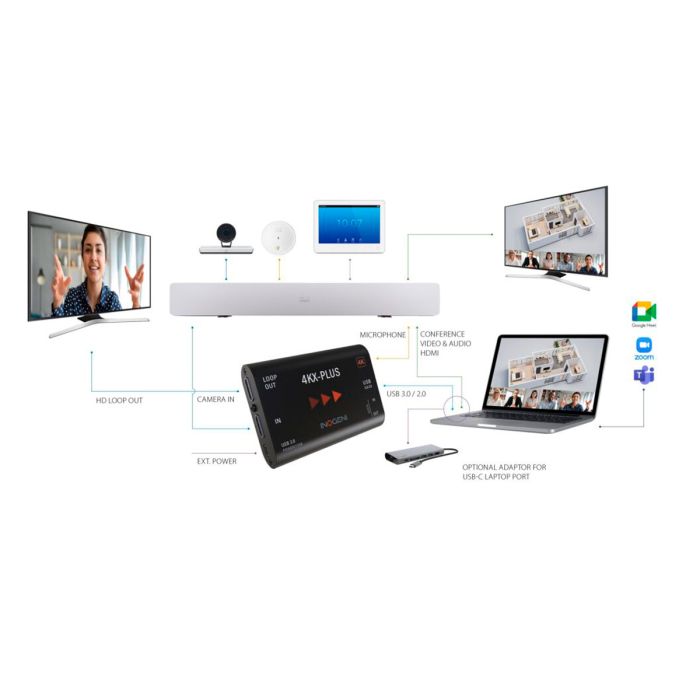

• Direct integration of the Webex Devices equipment (cameras and microphones).
• Solves the interoperability issues.
• Optimizes your assets and the license fees for Cloud Video Interop (CVI) service and user management.
• The external power supply on 4KXPLUS, maintains the connection with the 2nd display, with or without laptop.
• No driver required.
• Compatible with Windows, macOS and Linux on laptop.
• Easily programed macros in your Webex Room Device.
• Native Webex implementation available in Q2 CY2022.
• Intuitive interface on Webex Touch 10 or Webex Navigator.

• HDMI capture to USB 3.0
• Compatible with USB 2.0 (high-quality MJPEG)
• HDMI loop output
• Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
• HDMI audio support
• Analog audio I/O
• Digital Fluid technology: Internal frame buffers maximize frame rates
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion (UHD up-scaling not supported)
• Image controls: Brightness, contrast, saturation, and hue settings
• Supports multiple devices on the same PC
• Compatible with Windows, Mac OSX, Linux and Android
• Powered from external adapter or USB 2.0 (included)
• A six-foot USB 3.0 cable is included

HDMI INPUT

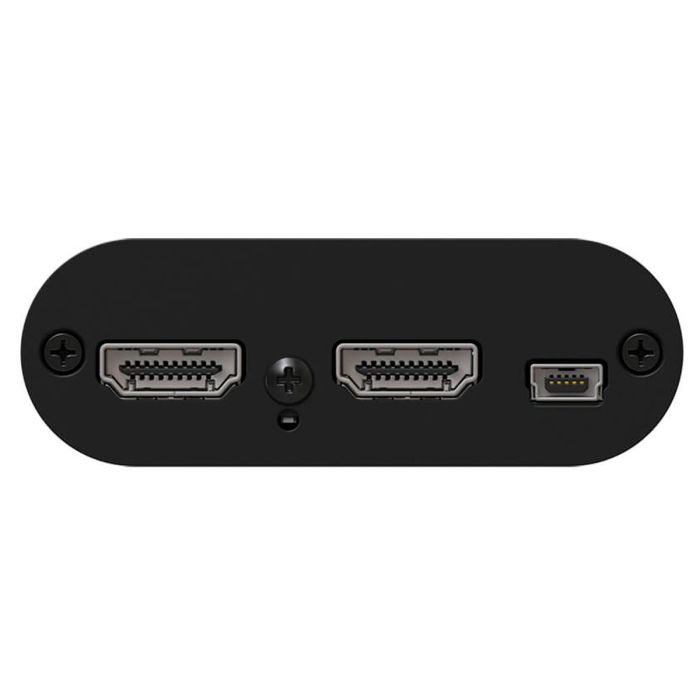

• Connector: 1 x HDMI 1.4a
• Video Resolution: 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,1280x800, 1024x768, 800x600, 640x480
• Frame Rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
• Color Space: RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
• Sampling Rate: 297 MHz
• Embedded Audio: Ch 1&2 48kHz LPCM
• HDCP Copy Protection: INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

HDMI LOOP OUTPUT

• Connector: 1 x HDMI 1.4a
• Video Resolution: Same as HDMI input

USB 3.0/2.0 0UTPUT

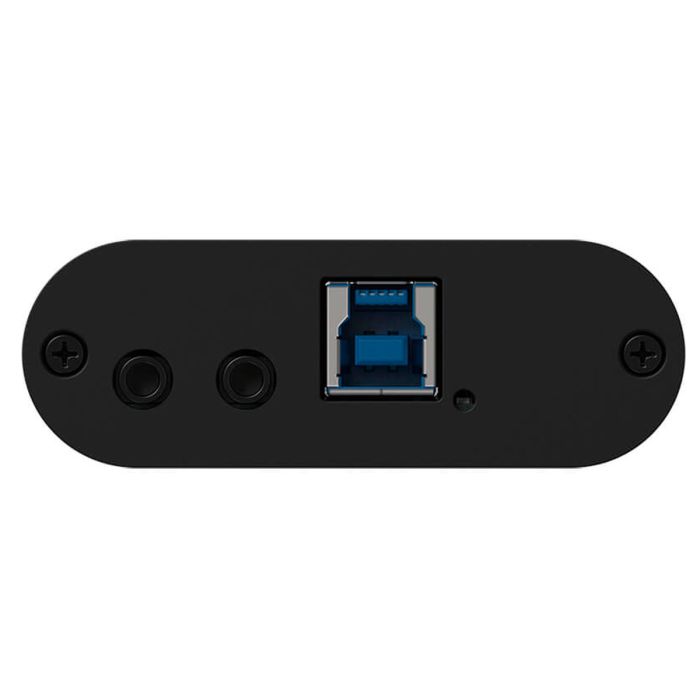

• Connector: 1 x USB Type-B (USB 3.0/2.0)
• Codec: YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
  MJPEG for USB 2.0
• Video Scaler: Automatic hardware based
• Color Space Conversion: Automatic hardware based
• Sampling Conversion: Automatic hardware based
• Frame Rate Conversion: Automatic hardware based
• Audio: 2-channel LPCM audio from HDMI and/or from Audio Jack

AUDIO INPUT

• Connector: 1 x 3.5mm analog audio jack (MIC or LINE level)

AUDIO OUTPUT

• Connector: 1 x 3.5mm analog audio jack (LINE level

AUDIO MIXING

• Mixing functionality: HDMI audio and analog audio inputs are mixed over the USB input interface. USB audio output and HDMI audio input are mixed over the analog audio output. Use Control App in order to manage audio layout.

COMPATIBILITY

• Cisco Webex Compatible:
  Easily programed macros in your Webex Room Device. (Click here to request the Macros)
  Native Webex implementation available in Q2 CY2022.
  Intuitive interface on Webex Touch 10 or Webex Navigator.
  The 4KX-PLUS is compatible with Webex Devices for multiple Displays

The 4K2USB3 is compatible with Webex Devices for one Displays

Macro and native
    Webex Room Kit
    Webex Room Kit Plus
    Webex Room Kit Pro
    Webex Room 55
    Webex Room 70
    Webex Room Panorama
Macro only
    Cisco MX700
    Cisco MX800
    Cisco SX80

• Operating System:
  NO driver installation necessary
  Windows 7 and above (32/64-bit)
  Mac OSX 10.10 and above
  Linux (kernel v2.6.38) and above
• Host Requirements: Recommended USB 3.0 (uncompressed video) or USB 2.0 (high quality MJPEG)
• Cameras Supported: Cameras (or video Source) with an HDMI output
  Software Compatibility: UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.
• Dimensions & Weight: 3.9” x 2.9” x 0.75” 140g
• Operating Temperature: 0° to 45° C (32° to 113° F)
• Storage Temperature: -40° to 105° C (-40° to 221° F)
• Relative Humidity: 0% to 90% non-condensing
• USB Power: If USB powered, USB Power: 5V, 900mA
• UPC Code: 040232378935
• Origin: Canada
• Warranty: 2 years

• 1 x 4KX-PLUS.
• 1x 3ftUSB3.0cableAmaletoBmale.
• 1 x 6ft USB 2.0 A male to mini-B 5-pin male hi-speed cable (for power).
• 1 x AC/DC 5V USB A power supply with AC interchangeable plugs (US, CE, AUS, UK).
• 1 x welcome card.
