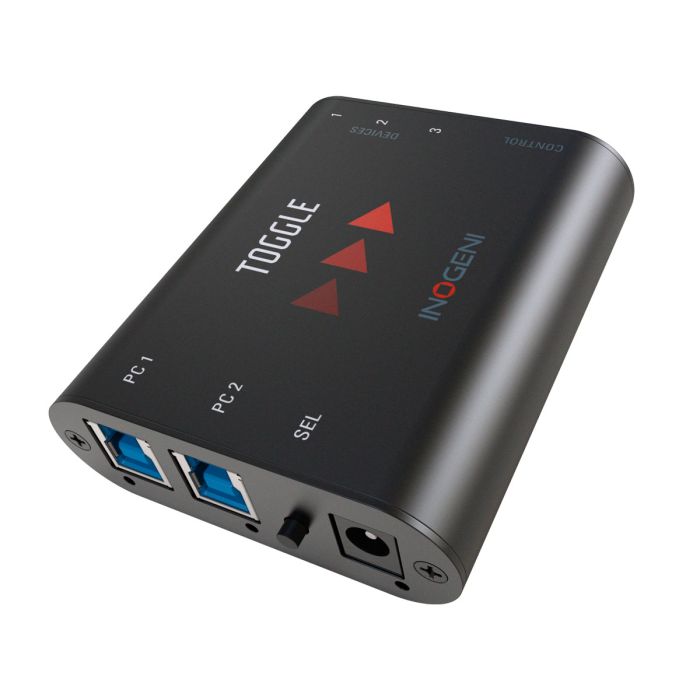

Inogeni Toggle USB 3.0 Switcher

• USB 3.0 Switcher
• Three USB 3.0 device ports
• Switch between two USB 3.0 hosts
• Compatible with USB 2.0
• Automatic, manual or remote control
• RS-232 control
• GPI contact-closure control
• Can automatically switch to the last connected host
• Rugged full-metal enclosure
• The external power supply can provide power to the USB 3.0 devices
• Two USB 3.0 cables are included

Physical details

Dimensions (W x L x H): 70 x 83 x 23 mm

Power supply: 12V

Power consumption: Up to 1.2A

Weight: 113 g

Package content: 2 x USB 3.0 Type-B to Type-A cables/ 1 x terminal block connection/ 1 x 12V power supply.

Operating temperature: 0° to 45° C (32° to 113° F)

Storage temperature: -40° to 105° C (-40° to 221° F)

Origin: Canada

Warranty: 2 years

General specifications

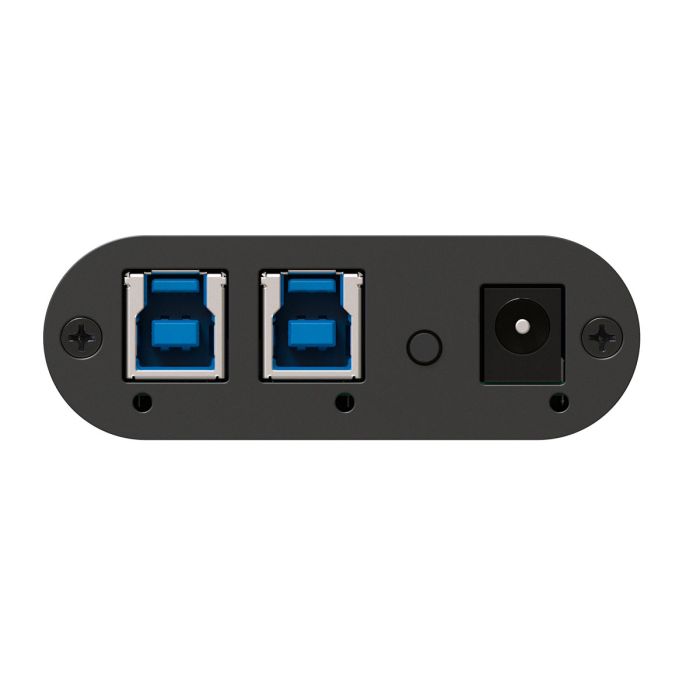

USB host ports: 2 x Type-B USB 3.0/2.0 compatible.

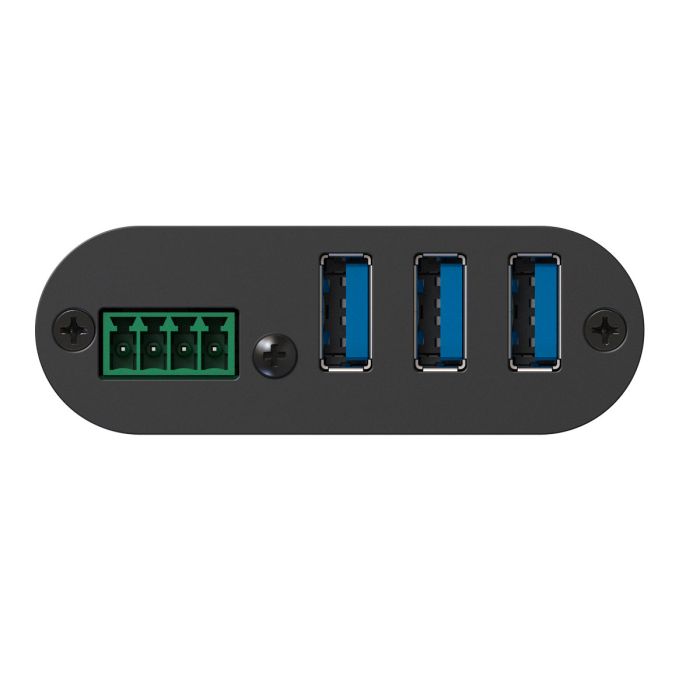

USB device ports: 3 x Type-A USB 3.0/2.0 compatible.

Serial interface: Baud rate: 9600.
For control purpose. See Serial communication protocol section for more details.

Push-button: Physical switch to select host.

GPIN: Contact-closure control.Controlled by open-drain IO (short to ground) or driven IO.Supported voltage range: 0V to +12V max.

Device current limit: 1.8A shared current limit for all 3 x USB device ports.
You can monitor current consumption through RS232 and our Control App.

Software

Operating systems: Compatible with any operating system Windows 7 and above
macOS 10.0 and above. Linux

Upgrade: Field upgradable through our INOGENI Control App.

Control: Automatic, manual or remote control. Current configuration is saved onboard.
