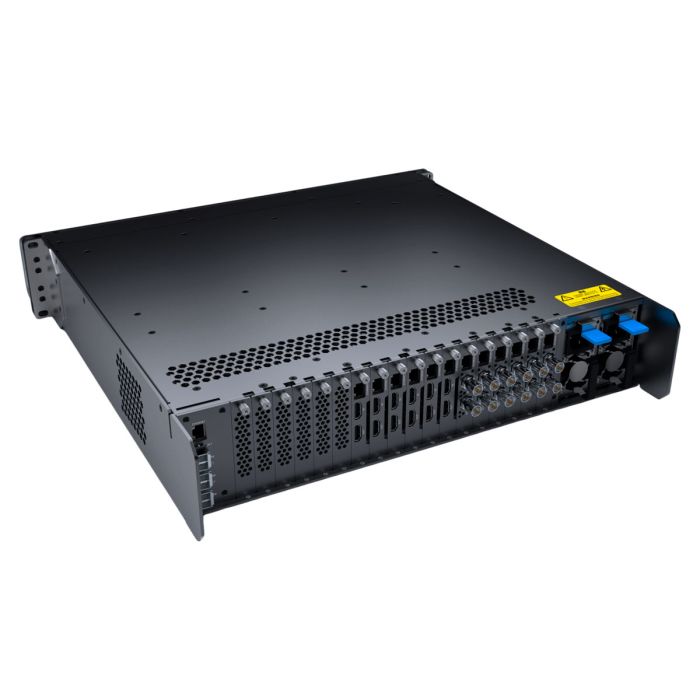

Kiloview Cradle Series RF02 2RU Media Centre

Cradle Series RF02, the flagship rack-mounted media platform from Kiloview, is your ultimate media management center. Within its 2RU high-density structure, the RF02 supports flexible configuration of up to 18 card modules, enabling encoding, decoding, media gateway, bonding, etc. Its modular design replaces the clutter of multiple standalone devices with a streamlined, unified solution, providing the most complete and lightweight AV-over-IP solutions for broadcast-grade production, medical imaging transmission, remote education, live event streaming, and more.

High-Speed Connectivity
The RF02 provides three 10Gbps SFP+ fibre Ethernet interfaces and one 10Gbps RJ45 Ethernet interface, ensuring effortless handling of high-bandwidth NDI streams.

Integrated Network Switch
1G/2.5G network switch module: connects all internal service cards, including encoding, decoding, NDI conversion, media gateway, bonding and KIS (Kiloview Intercom Server).

Efficient Data Flow
RF02 streamlines the data flow within the platform, eliminating the need for external network switches. This setup not only reduces setup complexity and costs but also enhances the reliability of data transfer.

Supports Up to 18 Service Cards: The RF02’s 2RU modular design offers flexibility, accommodating up to 18 service cards, including video encoding, decoding, NDI and media gateway.

Customisable Configurations: Configure the platform to meet project needs, whether for multi-channel encoding, decoding, or as a media gateway, with flexible service card options for any media workflow.

Independent Operation: Each service card functions independently, ensuring system reliability by preventing a single card failure from affecting the entire system.

Unified Control
The RF02 is equipped with an ARM64 main controller that runs Kiloview’s renowned KiloLink Server Pro, designed specifically for this platform. This controller allows you to manage, and upgrade all service cards from a single interface.

On-Premise Bonding Service
With the KiloLink Server Pro, the RF02 is also design be your on-premise bonding server for all the Kiloview P series 4G/5G bonding encoders, providing centralised control and ensuring the reliability and security. Together with a decoding card, you can easily receive the remote video streams to SDI/HDMI at different resolutions.

Streamlined Operations
The platform’s capability to auto-discover, monitor, and configure all the media service cards significantly reduces the time spent on manual setup and troubleshooting, enabling smooth, uninterrupted media operations.

Seamless Integration Across Workflows
Unified System: The platform unifies various media processing tasks into one cohesive system, ensuring that all components work harmoniously. Whether you are encoding, decoding, or performing media conversions, the RF-02’s internal architecture ensures that each task is executed with precision and efficiency, greatly reducing the need for additional external devices, simplifying your overall setup and improving workflow efficiency.

Reduced Setup Needs: The RF02’s integration capabilities make it a versatile solution for any media environment, enabling smoother operations and faster project turnarounds.

Reliable Performance
Dual-Redundant Power Supplies: It features dual-redundant, hot-swappable 500W power supplies, ensuring uninterrupted operation even in the most demanding conditions.

High Durability with Advanced Cooling System: The advanced cooling system is designed to maintain optimal operating temperatures for all service cards, ensuring consistent performance over extended periods. This robust build quality guarantees that the RF02 will meet the rigorous demands of professional media environments, offering peace of mind that your operations will continue smoothly without unexpected interruptions.

User-Friendly Interface

3.0-inch Colour LCD Panel: The RF02 has a 3.0-inch colour LCD panel on the front and intuitive buttons for quick status monitoring and configuration. The display provides real-time information on the operation of each service card, making it easy to manage and troubleshoot.

Web-Based Remote Management: The RF02 supports a web-based management interface accessible via HTTP/HTTPS. This interface allows for remote management, including device configuration, status monitoring and firmware upgrades, all from a user-friendly web UI. The platform also supports integration with popular web browsers like Microsoft Edge, Firefox, Chrome, Safari and Opera, ensuring broad compatibility and ease of use.

High Density with Space-Saving Design
With a 2RU compact size, the RF02 is designed to maximize functionality, supporting up to 18 service cards. This high-density design is ideal for environments where space is at a premium. The RF-02’s efficient layout ensures you get the most out of your rack space, allowing you to consolidate multiple functionalities into a compact unit. This reduces the physical footprint of your setup and streamlines the operational complexity, making the RF02 an essential component for AV infrastructures.

Encoding & Decoding
All-in-One Encoding & Decoding: Kiloview's integrated service cards (FN-60/ FN-50) support H.264/ H.265/ NDI SpeedHQ CODEC, delivering UHD4Kp60 with YCbCr 4:2:2/ 10-bit colour format.

* FN-60：4K P60 HDMI Encoding/Decoding Service Card

  FN-50: 12G-SDI Encoding/Decoding Service Card

Media Gateway Service Card
Versatile Video & Media Protocol Conversion : Each card supports up to 1x 4Kp60/ 4x 1080p60 video conversions and media  transformations.

Comprehensive Format Interchange: Seamlessly convert between H.264/ H.265/ NDI SpeedHQ video formats and Dante/ NDI/ AAC/ MP3/ PCM audio formats.

Exclusive NDI feature support : NDI Bridge Utility is embedded in the SDK, enabling hardware-based Bridge functionality. Also, It supports protocol conversion between NDI High Bandwidth and NDI HX/NDI HX3.

Wide Protocol Support : Effortlessly interchange between NDI/ Dante AV-H/ SRT/ RTMP/ HLS/ TS/ RTSP protocols, with support for over 50 concurrent connections.

NDI Multiview Business Card (FMV-400)
Kiloview's NDI Multiview Business Card (FMV-400) supports up to 16-channel NDI HX, NDI HX3, NDI High Bandwidth video preview and is compatible with NDI 6 HDR. Equipped with two HDMI 2.0b 4K output interfaces for Multiview.

* Note: The final capabilities will be determined by the final official release.
