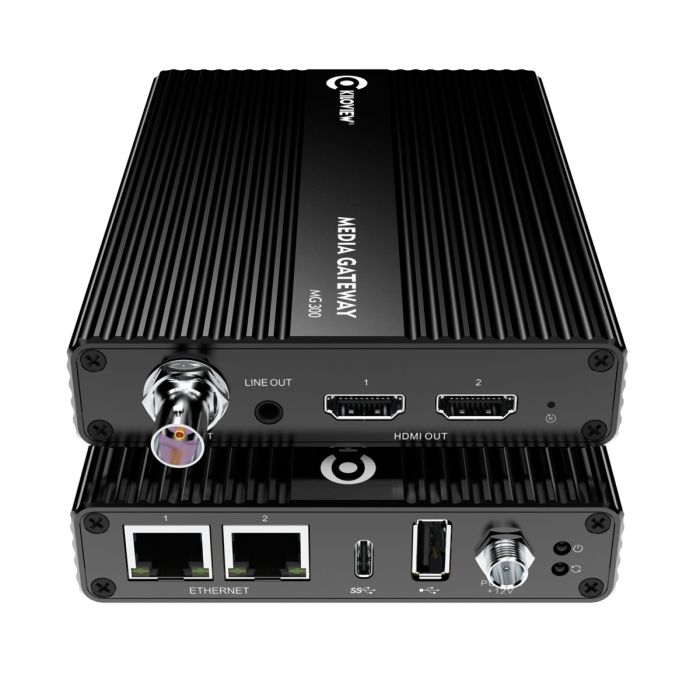

Kiloview MG300 V2 IP Video Media Gateway
4K NDI-HX/SRT/RTSP/HLS to SDI/HDMI decoder/multiviewer; Protocol conversion; IP stream function
MPN: KILO-MG300-V2 SKU: KILO-MG300-V2
Kiloview MG300 V2 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDI|HX (2.0), SRT, RTMP, RTSP, TS-UDP, and HLS to 3G-SDI and 4K HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
MG300 V2 media gateway is a high-performance embedded multi-functional device, which integrates powerful functions including stream protocol conversion, stream distribution, multi-channel video decoding and multi-screen splitting. It is applied to video format conversion, protocol intercommunication, decoding and split screen display from different systems, manufacturers, types and encoding contents. It also works as the stream media server with the capacity for 50 concurrent access.
Kiloview MG300 V2 highlights video transcoding between H.264 and H.265.
and combine multiple video streams into a merged video and push it to the live broadcast platforms.
It supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output 3G-SDI and 4K HDMI. It supports decoding up to 9 channels of videos simultaneous. Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30
- Protocol conversion
- Stream distribution
- Video transcoding between H.264 and H.265
- Decoding up to 4K H.264/ H.265
- 9 channels video split to the display wall
- Multi-stream switching
- 7x24h working mode
- SDK provided
- Monitoring video to live broadcast
- Monitoring video to the public security network
- Dual Output
- Customize output display
- Video previewing
- Support SDI/HDMI embedded audio or 3.5mm analog audio output
- Supports audio mixing
- Dual network ports for multi-purpose management
- Network: 2x 100M/1000M RJ45 adaptive Ethernet
- Decoding Output:
- 1x SD/HD/3G-SDI, up to 1080P 60Hz
- 1x HDMI, up to 3840x2160@60Hz
- Analog Audio Output: 1x 3.5mm Line out
- Analog Audio Input: 1x 3.5mm Line in
- USB: 1x USB 3.0 Type-A
Protocol Support Capability
- Access protocol:
- NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0,
- SIP/ONVIF (customize)
- Output Protocol: NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP
- Protocol Conversion: 9 channels1080P video conversion
- Streaming Distribution: 50 channels of RTSP, 36 channels of RTMP/SRT (Not more than 600Mbps)
- Live Streaming: 9 channels x 4 channel 1080P
Video Decoding Capability
- Number of Decoding:
- 4K 30Hz H.264/H.265: up to 4 simultaneous channels
- 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels
- 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneously
- Video Decoding Standard: H.264, H.265
- SDI Output Format:
- 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/
- 59.94/50, 576i50, 480i60
- HDMI Output Format:
- 4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50
- Compatible with VESA standard format
- Video Rate Range: 128Kbps ~ 40Mbps
- Audio Decoding: AAC G.711 (aLaw/uLaw)
- Audio Rate Range: AAC: 8Kbps ~ 320Kbps G.711: 64Kbps
- Decoding Delay: ≤200ms
- Split Display Style:
- Support 1/2/3/4/5/6/7/8/9 splitting;
- Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding.
Management
- Management Interface: Web
- Remote Management: Support
- Remote Firmware Upgrade: Support
Operating Environment
- Operating Temperature: -25 ~ 60°C
- Dimension & Weight: 140x105x28mm (5.5x4.1x1.1”/380g) (13.4oz)
- Power Consumption: ≤6W
- Power Supply: 12V/1A
- Remark: NDI|HX means NDI|HX Version 2.0
