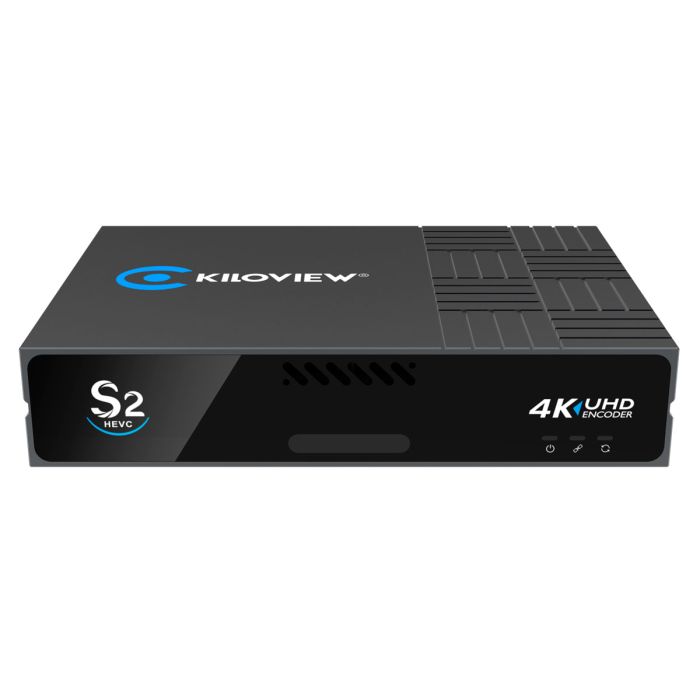

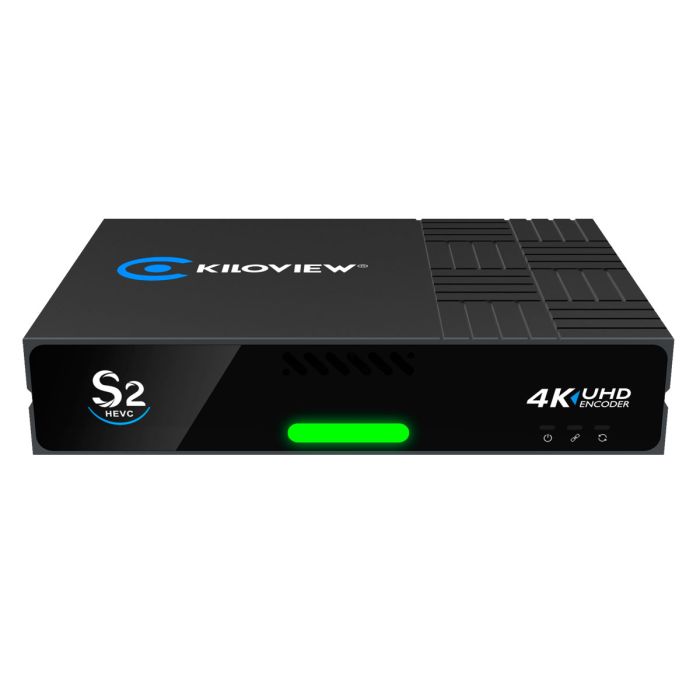

Kiloview S2 H.265/H.264- 4K HDMI Video Encoder
HEVC 4K HDMI Video Encoder
SKU: KILO-S2
The Kiloview S2 is an UHD 4K video encoder which is designed to meet the needs of all 4K video transmission applications.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The S2 supports input resolutions up to 4K60p and encoding resolutions up to 4K 30p with H265 (HEVC/H.264 high-performance encoding. to a wide range of protocols including NDI|HX, SRT, RTMP, RTMPS, HLS, UDF, and RTSP.
With HEVC encoding the S2 offers a lower encoding bitrate and saves more than 50% bandwidth with the same image quality when compared with H.264.
The S2 Pro was designed to need the increasing needs of 4k video. It can be paired with the Kiloview D300 decoder, used to Stream direct to platforms such as Facebook or YouTube, or as an input into production platforms supporting NDI or SRT streams directly.
- HEVC (H.265) Encoding to save over 50% bandwidth
- Supports RTSP/RTMP/RTMPS/HLS/TS-UDP/ NDI|HX
- Both Embedded and 3.5mm analog line-in audio supported
- Dual Stream output (Main-stream and Sub-stream)
- Live stream to 16 platforms simultaneously
- USB for local/NAS recording
- User-friendly Web UI
- Optional Image / text overlays
- Real-time monitoring and preview video (via web UI)
- Built-in tally
- Support for PoE or 12V DC
- Model: S2

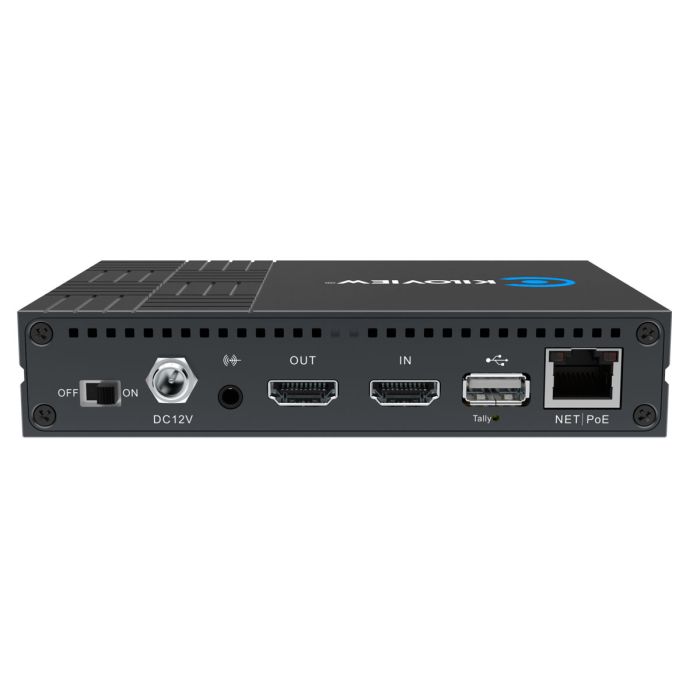

- Video interface: 1 x HDMI 2.0 Input
- Analog audio interface: 1 x 3.5mm
- USB interface: 1 x USB 2.0 Type-A female
- Transmission type: Ethernet
- Video loop: 1 x HDMI 2.0 loop
- Input Video resolution: Up to 4KP60Hz
- Video encoding algorithm: H.265/HEVC/ H.264/AVC, Motion-JPEG, up to 4KP30
- Audio encoding algorithm: AAC/G.711
- Encoding latency: 2 frames
- Media protocols: SRT/RTMP/ RTMPS/HLS/TS over UDP/RTP/RTSP /Onvif/, NDI|HX/SIP
- Tally: Supported
- PoE: Supported
- PTZ: Supported
- Image / Text overlay: Custom defined text and picture overlay supported, which can be set to any position on the screen
- Video storage: USB extended storage, with NAS storage available
- Management: APP/ Web/IMS
- Power Supply: DC 12V 1A
- Power Consumption: 9w
- Working Temperature: -20℃~45℃
- Size: 140*100*28mm
- Weight: 300g
