Kramer ASPEN 3232HD-3G SDI Router
32x32 3G HD–SDI Router
SKU: KRA-ASPEN-3232HD-3G
ASPEN 3232HD-3G is a 32x32 matrix switcher for SDI signals of up to 3G SDI. It is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller. Small and lightweight, it is capable of handling the most demanding applications.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Coming Soon
ASPEN 3232HD-3G is a 32x32 matrix switcher for SDI signals of up to 3G SDI. It is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller. Small and lightweight, it is capable of handling the most demanding applications.
- Max. Data Rate
3Gbps. - HDTV Compatible.
- Multi–Standard Operation
3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M–C/344M, DVB–ASI - Advanced Equalization & re–clocking Technology
Rebuilds the digital signal to travel longer distances. - Supports ANC Data
Embedded audio, teletext, time code, etc. - Cable Equalization
Up to 200m for 1.5G HD signals, 155m for 3G signals. - Latency
less than one Frame. - Versatile Genlocking
Using an analog signal. - Optional Redundant Power Supply.
- 32x32 3G HD–SDI Router
- Max. Data Rate: 3Gpbs (Fully loaded)

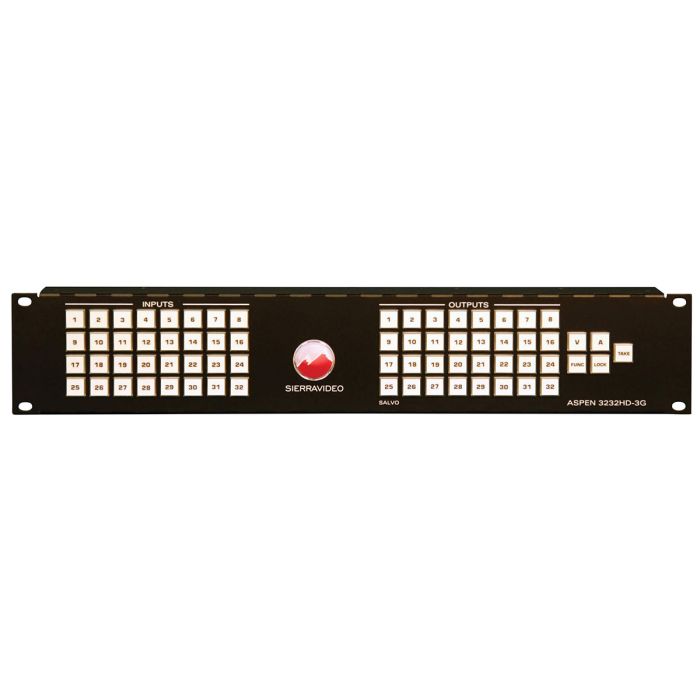

- Control: RS–232, RS–422, Ethernet and Front panel XY.
- Advanced Browser Interface: Control & Set up
- Depth: 2.5 Inches

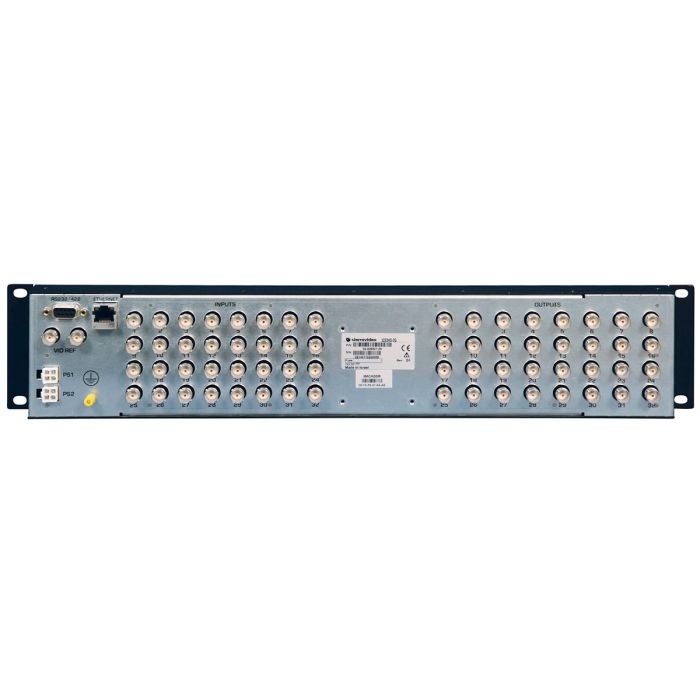

- 3G HD-SDI: BNC | Ethernet: RJ-45
- ASPEN 3232HD-3G
- Power supply
