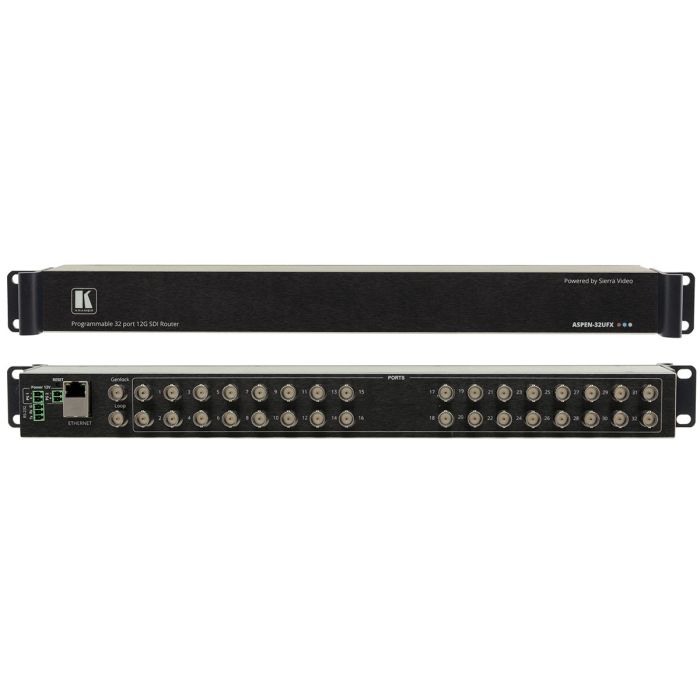

Kramer ASPEN-32UFX 12G-SDI Router

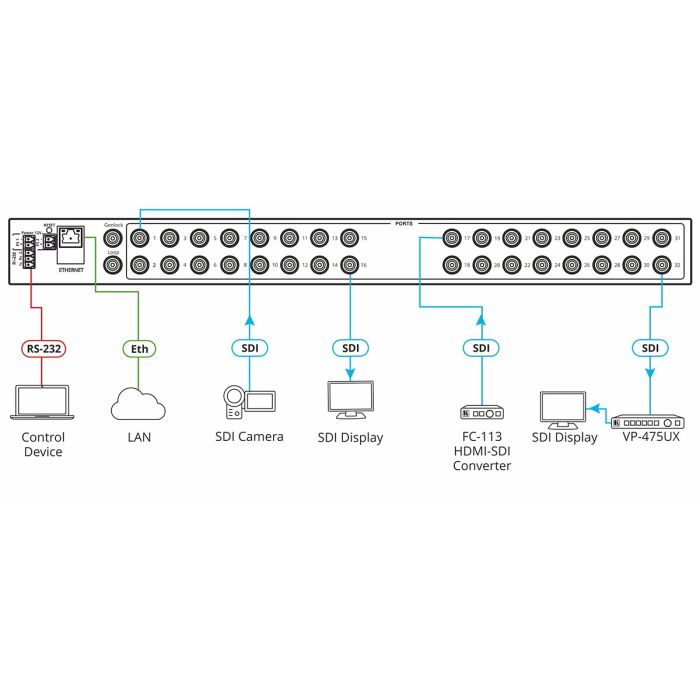

ASPEN−32UFX is a 32−port matrix switcher for SDI signals of up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x31 distribution amplifier, 31x1 switcher, 16x16 matrix switcher or any other possible input−output combination. ASPEN−32UFX is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller.

• Max. Data Rate
  12Gbps.
• HDTV Compatible.
• Multi–Standard Operation
  12G–SDI - SMPTE ST–2082–1, 3G–SDI - SMPTE 424M, HD–SDI - SMPTE 292M, SDI - SMPTE 259M/344M
• Kramer Equalization & re–Klocking™ Technology
  Rebuilds the digital signal to travel longer distances.
• Supports ANC Data
  Embedded audio, teletext, time code, etc.
• Cable Equalization
  Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.
• Clean Switching
  When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
• Versatile Genlocking
  Using an analogue signal.
• Memory Locations
  Stores 8 multiple switches as presets to be recalled and executed when needed.
