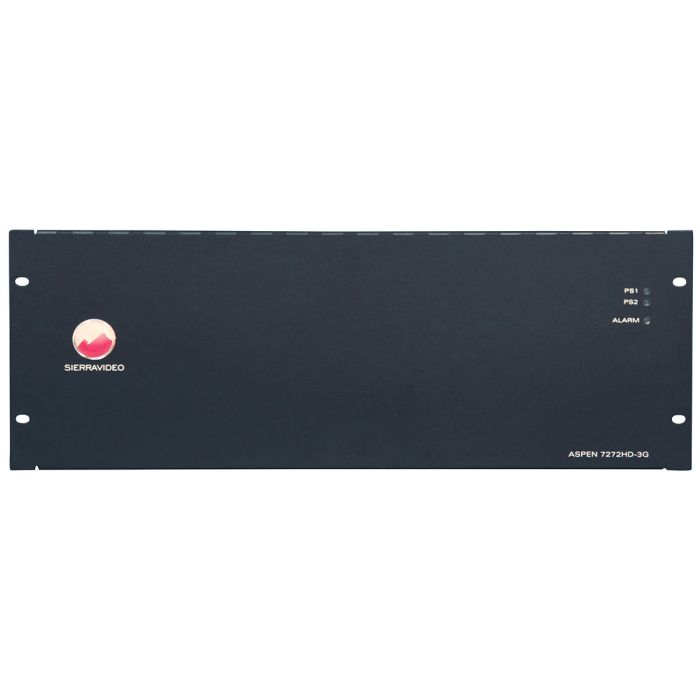

Kramer ASPEN 7272HD-3G SDI Router

ASPEN 7272HD-3G is a 72x72 matrix switcher for SDI signals of up to 3G SDI. The 7272HD-3G is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller. Small and lightweight, it is capable of handling the most demanding applications.

• Max. Data Rate
  3Gbps.
• HDTV Compatible.
• Multi–Standard Operation
  3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M–C/344M, DVB–ASI
• Advanced Equalization & re–clocking Technology
  ebuilds the digital signal to travel longer distances.
• Supports ANC Data
  Embedded audio, teletext, time code, etc.
• Cable Equalization
  Up to 200m for 1.5G HD signals, 155m for 3G signals.
• Latency
  Less than one Frame.
• Versatile Genlocking
  Using an analogue signal.
• Optional Redundant Power Supply.
