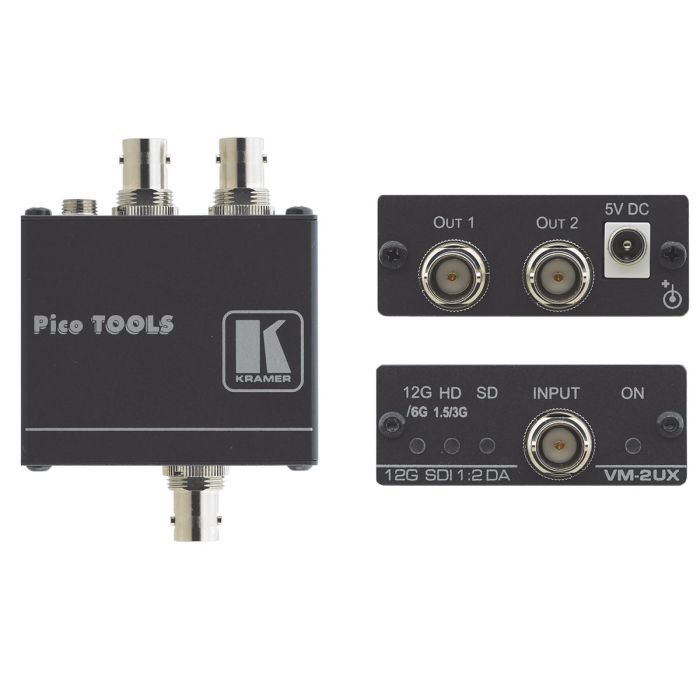

Kramer VM-2UX 1:2 4K 12G SDI Distribution Amplifier

1:2 4K 12G SDI DA

SKU: KRA-VM-2UX

$548.33

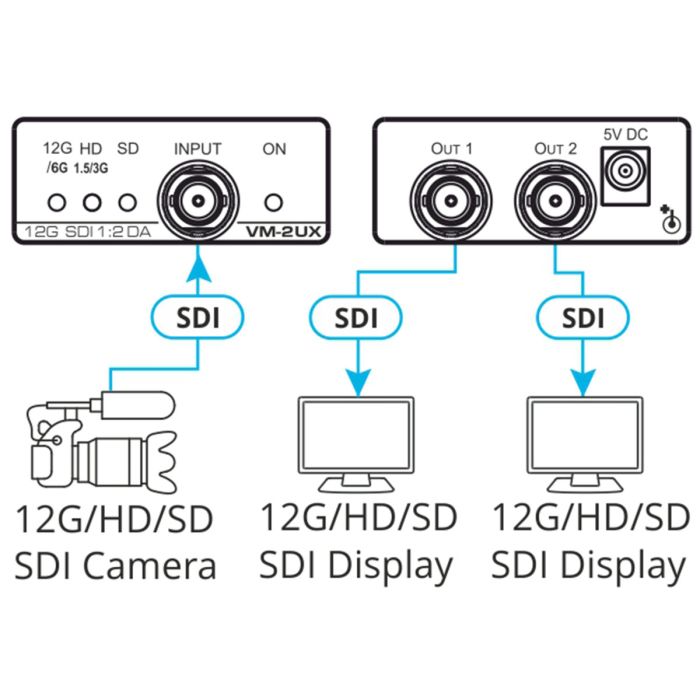

The VM−2UX is a compact and high−performance 1:2 4K distributor for standard broadcast−grade SDI signals of up to 12G transmitted data rate. It auto−adapts to data rate of one SDI input signal, equalizes and re−clocks the signal to improve transmitted signal reach, and distributes the signal to two identical SDI outputs.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

Reliable Wire Connectivity
Coaxial broadcast–grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
Extended–reach Input Extension
Input signal equalization and output signal reclocking to gain extended–reach signal extension. Using Kramer high–quality coaxial SDI cables, supports extension of up to 80m (260ft) for 12G 4K signals.
Transmitted Data Rate
From 270Mbps to 12Gbps data rates.
Max. Resolutionstrong>
4K@60Hz (4:2:2) 30bpp.
SDI Signal Transmission
Auto–adapts to SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting pass–through of standard embedded audio channels with ancillary ID and metadata information.
Easy Installation & Maintenance
Compact Pico TOOLS™ fan–less enclosure for small footprint spaces and over–ceiling mounting, or side–by–side rack mounting. Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.

Applications

SDI video production studios
Broadcast studio and field SDI video production events
Staging and rental deployments
Medical facilities with highly reliable video deployments

1:2 4K 12G SDI DA
1:2 SDI distributor
Resolution: Up to 4K (4:2:2) 30bpp
Data rate: Auto–adapting, up to 12Gbps
Input Reach: Up to 80m (260ft) at 12Gbps
Compliance: SMPTE standards
Lockable connections

Input: 1 SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI) compliant serial video input on a 75Ω BNC connector
Outputs: 2 equalized and reclocked SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI) outputs on 75Ω BNC connectors
Cable Equalization Reach:
- 12Gbps: Up to 80m (260ft) using Kramer cables, 3Gbps and 6Gbps: Up to 100m (330ft)
- 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft)
Video: Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps up to12Gbps data rate
Maximum Output Level: 800mVpp/75Ω
Coupling: AC
Standards Compliance: SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI), ST−2082 (12G−SDI)
Power Consumption: 5V DC, 250mA
Power Source: 5.2V/4A
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: −40° to +70°C (−40° to 158°F)
Humidity: 10% to 90%, RHL non−condensing
Product Dimensions 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
Product Weight 0.5kg (1.1lbs) approx
Shipping Dimensions 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
Shipping Weight 0.9kg (2.1lbs) approx
