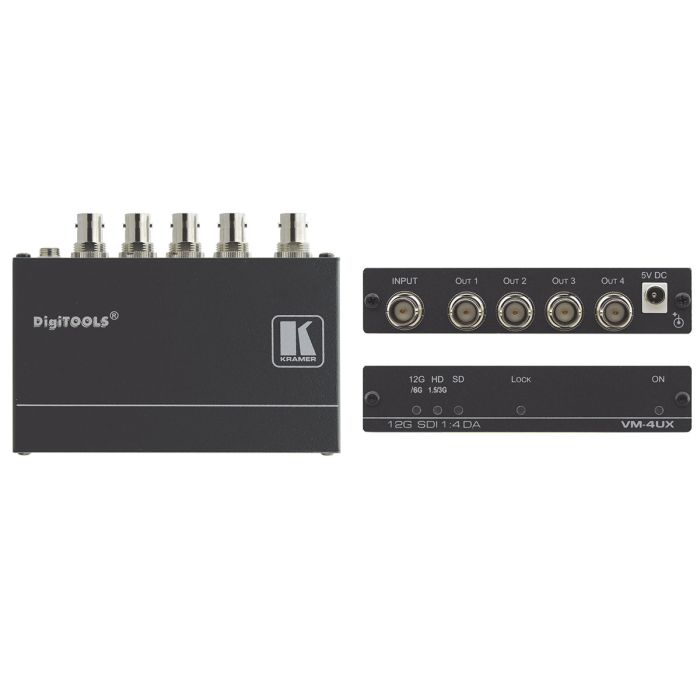

Kramer VM-4UX 1:4 4K 12G SDI Distribution Amplifier

1:4 4K 12G SDI DA

SKU: KRA-VM-4UX

$698.33

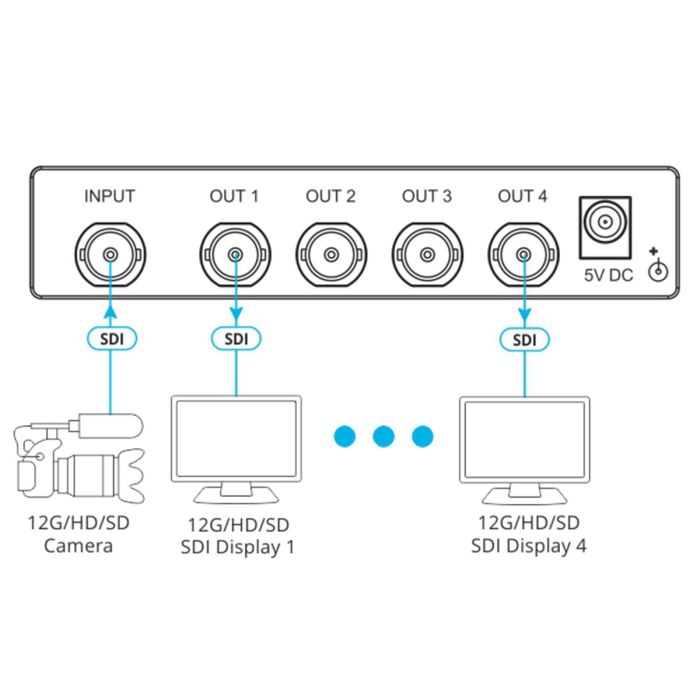

The VM−4UX is a compact and high performance 1:4 4K distributor for standard broadcast−grade SDI signals of up to 12G transmitted data rate. It auto−adapts to the data rate of one SDI input signal, equalizes and re−clocks the signal to improve transmitted signal reach, and distributes the signal to four identical SDI outputs.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Coming Soon

Reliable Wire Connectivity
Coaxial broadcast–grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
Extended–reach Input Extension
Input signal equalization and output signals reclocking to gain extended–reach signal extension. Using Kramer high–quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (262ft) for 12G 4K signals.
Transmitted Data Rate
Auto–adapting from 270Mbps to 12Gbps data rates.
Compliance
Complies with SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) standards.
Max. Resolution
4K@60Hz (4:2:2) 30bpp.
SDI Signal Transmission
SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting pass–through of standard embedded audio channels with ancillary ID and metadata information.
LED Indicators
Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
Easy Installation
Compact DigiTOOLS™ fan–less enclosure for small footprint spaces and over–ceiling mounting, or side–by–side rack mounting.

Applications

SDI video production studios
Broadcast studio and field SDI video production events
Staging and rental deployments
Medical facilities with highly reliable video deployments

1:4 4K 12G SDI DA
1:4 SDI distributor
Resolution: Up to 4K (4:2:2) 30bpp
Data rate: Auto–adapting, up to 12Gbps
Input Reach: Up to 80m (260ft) at 12Gbps
Compliance: SMPTE standards
Lockable connections

Inputs: 1 SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI) compliant serial video, 75Ω on a BNC connector
Outputs: 4 equalized and reclocked SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST 2082 (12G−SDI), outputs 75Ω on BNC connectors
Cable Equalization Reach:
- 12Gbps: Up to 80m (260ft),
- 3Gbps and 6Gbps: Up to 100m (330ft),
- 1.5Gbps: Up to 200m (660ft),
- SD: Up to 300m (980ft), Note: The above specs apply when using Kramer cables
Video: Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate
Maximum Output Level: 800mVpp /75Ω
Coupling: AC
Standards Compliance: SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI), ST−2082 (12G−SDI)
Power Consumption: 5V DC, 250mA
Power Source: 5.2V/4A
Enclosure: Tools size, Aluminum type
Cooling: Convection ventilation
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: −40° to +70°C (−40° to 158°F)
Humidity: 10% to 90%, RHL non−condensing
Product Dimensions 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
Product Weight 0.2kg (0.4lbs) approx
Shipping Dimensions 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
Shipping Weight 0.7kg (1.5lbs) approx
