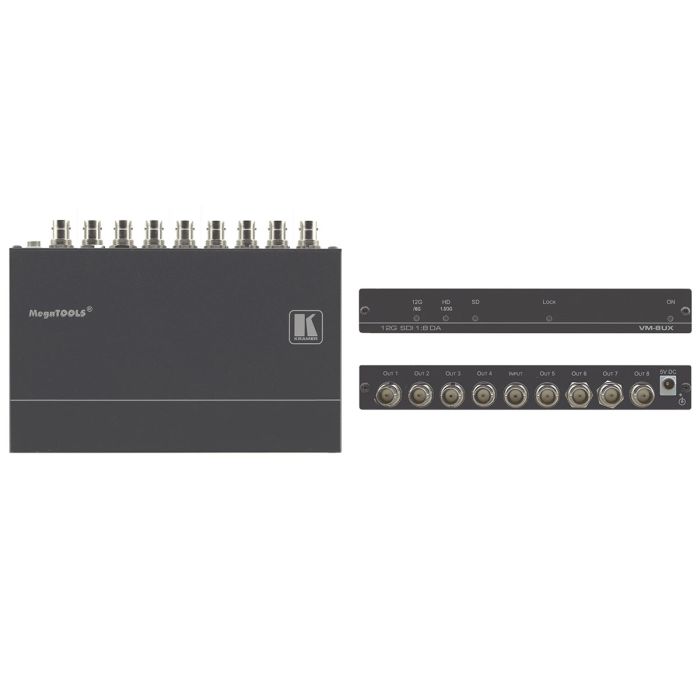

Kramer VM-8UX 1:8 SDI Distribution Amplifier
VM-8UX 1:8 SDI DA
SKU: KRA-VM-8UX

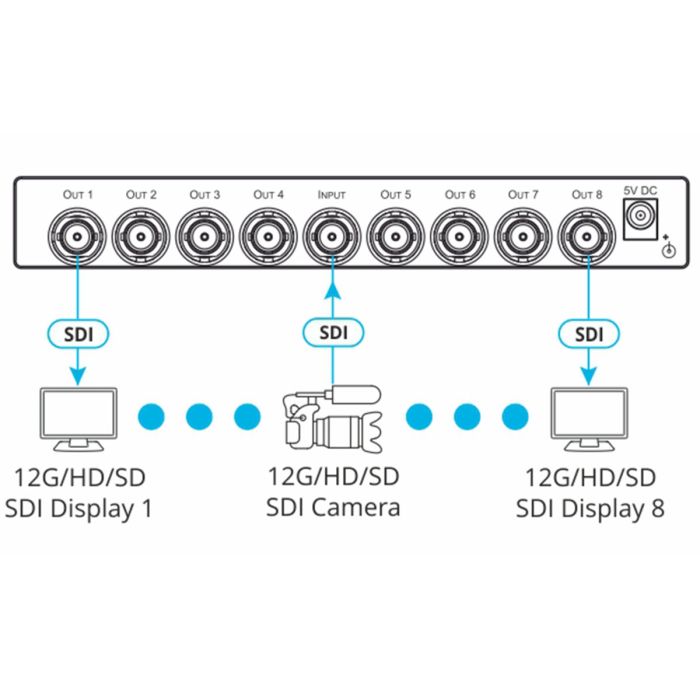

VM-8UX is a compact and high performance 1:8 4K distributor for standard broadcast-grade SDI signals of up to 12G transmitted data rate. It auto-adapts to data rate of one SDI input signal, equalises and re-clocks the signal to improve transmitted signal reach, and distributes the signal to eight identical SDI outputs.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Coming Soon
VM-8UX is a compact and high performance 1:8 4K distributor for standard broadcast-grade SDI signals of up to 12G transmitted data rate. It auto-adapts to data rate of one SDI input signal, equalises and re-clocks the signal to improve transmitted signal reach, and distributes the signal to eight identical SDI outputs.
- Reliable Wire Connectivity
Coaxial broadcast-grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments. - Extended-reach Input Extension
Input signal equalization and output signals reclocking to gain extended-reach signal extension. Using Kramer high-quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (260ft) for 12G 4K signals.
Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non-Kramer coaxial cables. - Transmitted Data Rate
Auto-adapting from 270Mbps to 12Gbps data rates. - Compliance
Complies with SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) standards. - Max. Resolution
4K@60Hz (4:2:2) 30bpp. - SDI Signal Transmission
SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant signals, supporting pass-through of standard embedded audio channels with ancillary ID and metadata information. - LED Indicators
Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting. - Easy Installation
Compact DigiTOOLS™ fan-less enclosure for small footprint spaces and over-ceiling mounting, or side-by-side rack mounting.
Applications
- SDI video production studios
- Broadcast studio and field SDI video production events
- Staging and rental deployments
- Medical facilities with highly reliable video deployments
- 1:8 SDI distributor
- Resolution: Up to 4K (4:2:2) 30bpp
- Data rate: Auto–adapting, up to 12Gbps
- Input Reach: Up to 80m (260ft) at 12Gbps
- Compliance: SMPTE standards
- Lockable connections
- Input: 1 SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI) compliant serial video, 75Ω on a BNC connector
- Outputs: 8 equalized and reclocked SMPTE 259M (SD−SDI), 292M (HD SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI), outputs 75Ω on BNC connectors
- Cable Equalization Reach:
- 12Gbps: Up to 80m (260ft),
- 3Gbps and 6Gbps: Up to 100m (330ft),
- 1.5Gbps: Up to 200m (660ft),
- SD: Up to 300m (980ft), Note: The specs apply when using Kramer cables
- Video: Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate
- Maximum Output Level: 800mVpp /75Ω
- Coupling: AC
- Standards Compliance: SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI), ST−2082 (12G−SDI)
- Power Consumption: 5V DC, 400mA
- Power Source: 5.2V/4A
- Enclosure: Tool, aluminum type
- Cooling: Convection ventilation
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Humidity: 10% to 90%, RHL non−condensing
- Product Dimensions 19.00cm x 11.50cm x 2.70cm (7.48" x 4.53" x 1.06" ) W, D, H
- Product Weight 0.5kg (1.1lbs) approx
- Shipping Dimensions 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
- Shipping Weight 1.0kg (2.2lbs) approx
- 1:8 SDI distributor
- Power supply
- Mounting bracket
- 2 male BNC 75Ω terminators
