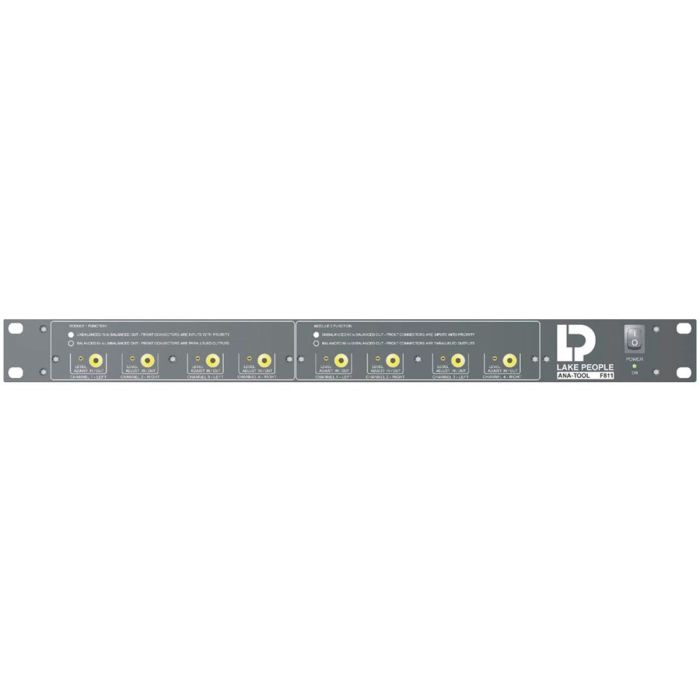

Lake People ANA-TOOL F811 Convert Unbalanced to Balanced Audio Signals (RCA > XLR)

• 2 x 4 identical sections from consumer level to studio level

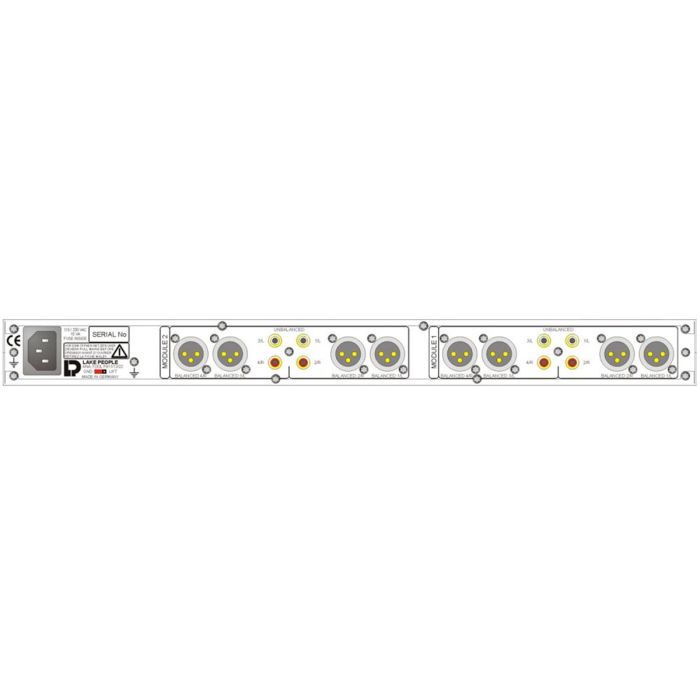

• Rear inputs via Cinch (RCA) sockets
• Front inputs via Cinch (RCA) sockets with priority
• All inputs with gold plated contacts
• Inputs optimized for “-10 dBu” signals
• Impedance 50 kohms
• Internal filters to reduce the bandwidth to a safe and useful range: 5 Hz … 70 kHz (-1 dB)
• Front accessible multiturn trimpots for level adjustment with a range from -3 … +21 dB
• Balancing of the output signals with optimized circuits for highest resistance- and common
• mode rejection ratio (CMRR)
• Output impedance 30 Ohms according to IRT rules
• XLR type output sockets with gold plated contacts
• 19”, 1 U stainless steel case, front colour dark grey

Option:
Outputs with “active feedback” transformers (up to 8 tranformers may be installed)

• Item number 1006212
• Dimensions 483 x 44 x 166 mm (BxHxT)
• Output impedance 30 Ohm
• Input impedance 50 kOhm
• Housing 19" / 1 HE
• Line I/O 8 / 8 (XLR/RCA)
• Max. output level > +25 dBu
• Max. input level > +21 dBu
• Power supply Internal 230 V / 115 V AC
• THD+N (@ -1 dBFs) < -100 dB
• Frequency range 5 Hz - 70 kHz ( -1 dB)
• Crosstalk < -100 dB (@ 15 kHz)
• Gain range -3 - +21 dB

• 1 x ANA-TOOL F811
• 1 x Power Cable
• 1 x Printed Manual
