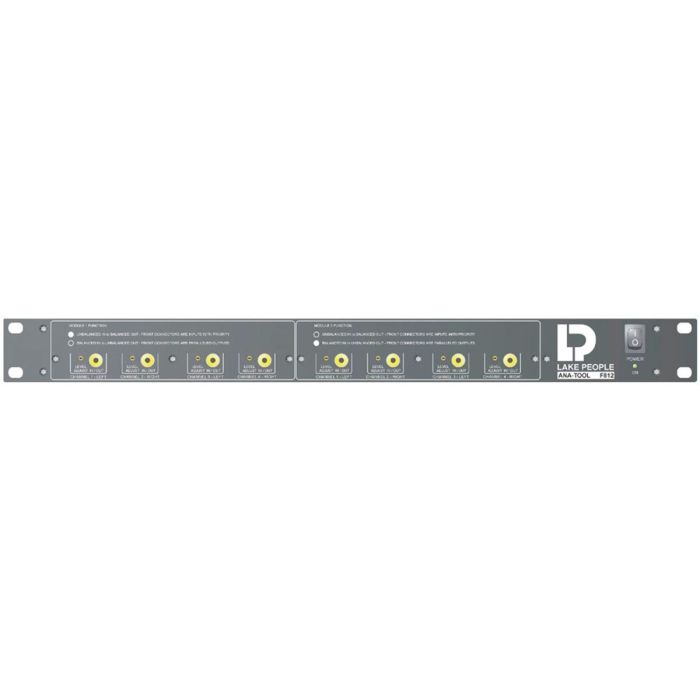

Lake People ANA-TOOL F812 Convert Unbalanced to Balanced Audio Signals (RCA > XLR) and Vice Versa
4-channel balancing amp + 4-channel unbalancing amp
MPN: LAKE-F812 SKU: LAKE-F812
The Lake People ANA-TOOL F812 is a balancing, impedance- and level-matching unit designed to provide interfacing between consumer- and studio equipment.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Lake People ANA-TOOL F812 is a balancing, impedance- and level-matching unit designed to provide interfacing between consumer- and studio equipment.
Features
Balancing, impedance and level matching unit for interfacing between consumer- and studio equipment.
Module 1:
- 4 identical sections from consumer level to “-10 dB” to studio level
- Rear inputs via gold plated Cinch (RCA) sockets
- Front inputs via gold plated Cinch (RCA) sockets with priority
- Front accessible multiturn trimpots for level adjustment
- Balancing of the output signals with highest common mode rejection ratio (CMRR)

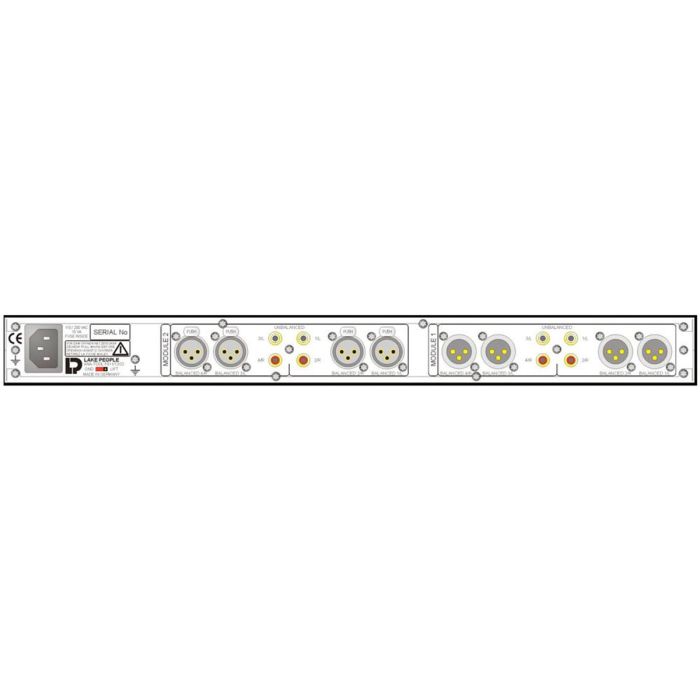

- Rear output with gold plated XLR connectors
Module 2:
- 4 identical sections from studio level to consumer level “-10 dB”
- Rear inputs balanced via gold plated XLR sockets
- Unbalancing of the input signal with highest common mode rejection ratio (CMRR)
- Front accessible multiturn trimpots for level adjustment
- Unbalanced outputs on the front- and rearpanel with gold plated Cinch (RCA) sockets
- Consumer to Studio signal converter / Studio signal to Consumer converter
- Features 2 modules (left and right):
- Module 1 converts Unbalanced (RCA) to Balanced (XLR)
- Module 2 converts Balanced (XLR) to Unbalanced (RCA)
- Balancing of output signals with highest common mode rejection
- 4 identical sections from consumer level “-10 dBu” to studio level
- 4 x differential amplifiers (difference amplifiers)
- Balancing, impedance, and level adjustment
- Front-facing spindle trimmers for level adjustment
- 4 x balancing amplifiers
- Made in Germany
- Item number 1006213
- Dimensions 483 x 44 x 166 mm (BxHxT)
- Input impedance Module 1: 50 kOhm / Module 2: 20 kOhm
- Housing 19" / 1 HE
- Line I/O 4 / 4 (XLR/RCA)
- Max. output level Module 1:
- Module 2:
- Max. input level Module 1: > +21 dBu / Module 2: > +25 dBu
- Power supply Internal 230 V / 115 V AC
- THD+N (@ -1 dBFs) < -100 dB
- Frequency range 5 Hz - 70 kHz ( -1 dB)
- Crosstalk < -100 dB (@ 15 kHz)
- Gain range Module 1: -3 - +21 dB / Module 2: -21 - +3 dB
- 1 x ANA-TOOL F812
- 1 x Power Cable
- 1 x Printed Manual
