Lake People ANA-TOOL F822 Convert Balanced to Unbalanced Audio Signals (XLR > RCA)

The Lake People ANA-TOOL F822 is a balancing, impedance- and level-matching unit designed to provide interfacing between consumer- and studio equipment.

• 2 x 4 identical sections from studio level to consumer level "-10 dBu"

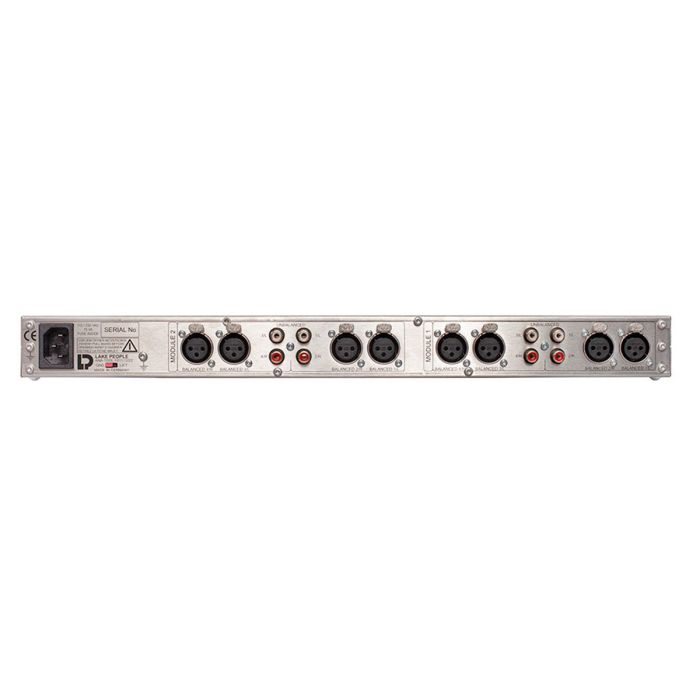

• Rear inputs via gold plated XLR sockets
• Inputs optimized for studio level signals signals
• Impedance 20 kohms
• internal differencial amplifiers with special circuitry for highest CMRR
• Internal filters to reduce the bandwidth to a safe and useful range: 5 Hz … 70 kHz (-1 dB)

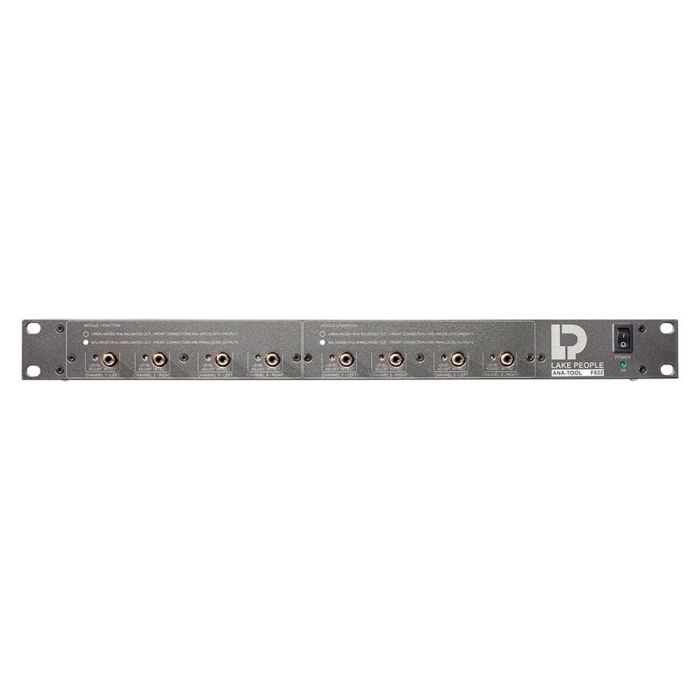

• Front accessible multiturn trimpots for level adjustment with a range from -21 … +3 dB
• Unbalanced outputs on the front and rear panel with gold plated RCA connectors
• Output impedance < 15 Ohm
• 19”, 1 U stainless steel case, front color dark grey

• Item number 1006214
• Dimensions 483 x 44 x 166 mm (W x H x D)
• Output impedance < 15 Ohm
• Housing 19" / 1 HE
• Line I/O 8 / 8 (XLR/RCA)
• Max. output level > +21 dBu
• Max. input level > +25 dBu
• Mic gain 20 kOhm
• Power supply Internal 230 V / 115 V AC
• THD+N (@ -1 dBFs) < -100 dB
• Frequency range 5 Hz - 70 kHz ( -1 dB)
• Crosstalk < -100 dB @ 15 kHz
• Gain range -21 - +3 dBu

• 1 x ANA-TOOL F822
• 1 x Power Cable
• 1 x Printed Manual
