Lake People ANA-TOOL F833 2 x 4 in 1 / 4 x 2 in 1 Summing Amplifier

The Lake People ANA-TOOL F833 is a summing amplifier with two identical sections, each with two balanced inputs and one balanced output (4 x 2 in 1).

• 2 x 2 Identical sections with two balanced inputs and one balanced output each (4 x 2 in 1)

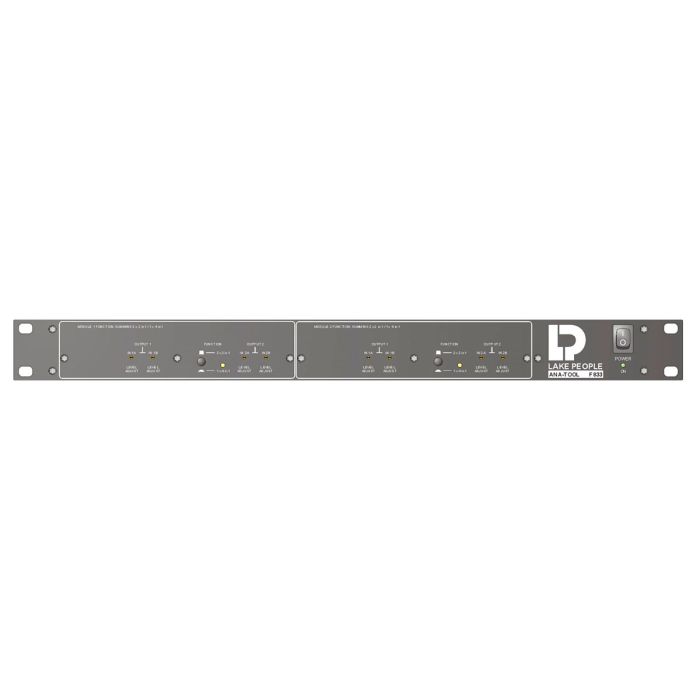

• Front side is switchable from 2 x 2 in 1 to 4 in 1 (output signal can then be split to both outputs)

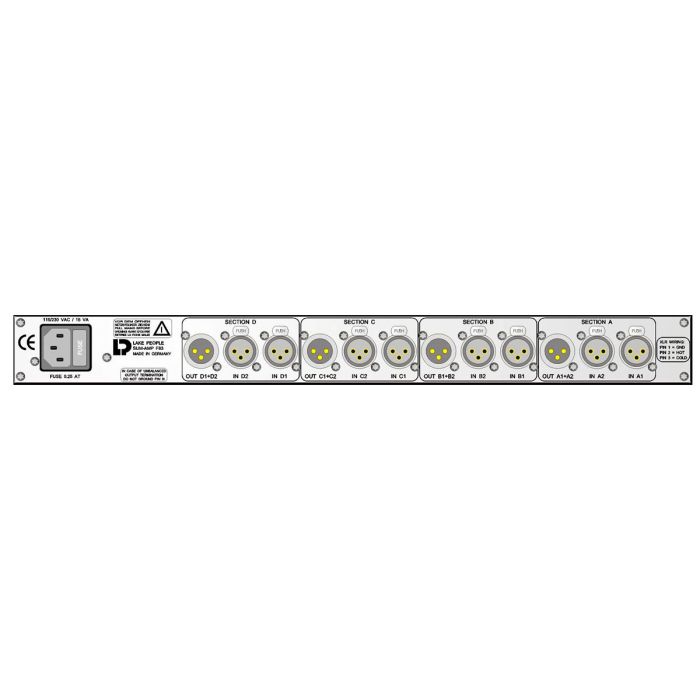

• Rear side inputs balanced symmetrically via XLR
• Optimised for line level signals
• Impedance: 20 kOhm
• Differentiation of the input signals with the highest common mode rejection (CMMR)
• Internal filters for band limitating to a safe and useful range from 5-40 kHz (-1 dB)
• Multiturn trimpots on the front for level adjustment in the range of -12 up to 12 dB
• Balancing of the output signals with optimised circuits for highest resistance - and voltage
• common mode rejection ratio
• IRT compliant output impedance of 30 ohms
• XLR input and output sockets with gold-plated contacts
• 19”, 1 U stainless steel case, front colour dark grey

• Item number 1006215
• Dimensions 483 x 44 x 166 mm (W x H x D)
• Output impedance < 15 Ohm
• Input impedance 20 kOhm
• Housing 19" / 1 HE
• Line I/O 8 / 4 (XLR)
• Max. output level > +21 dBu
• Max. input level > +25 dBu
• Power supply Internal 230 V / 115 V AC
• THD+N (@ -1 dBFs) < -100 dB
• Frequency range 5 Hz - 40 kHz (-1 dB)
• Crosstalk < -100 dB @ 15 kHz
• Gain range -21 - +3 dB

• 1 x ANA-TOOL F833
• 1 x Power Cable
• 1 x Printed Manual
