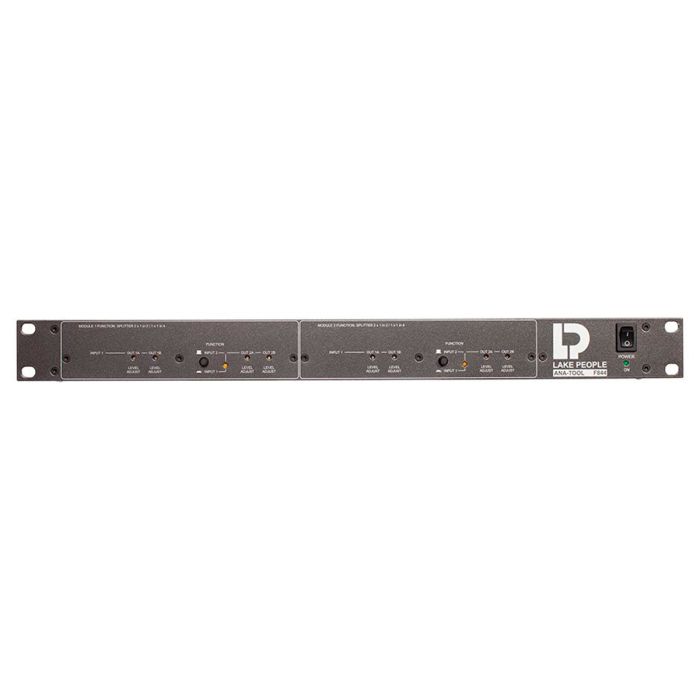

Lake People ANA-TOOL F844 2 x 1 in 4 / 4 x 1 in 2 Splitting Amplifier, 19"

The Lake People ANA-TOOL F844 is a splitting amplifier with two identical sections, each with two balanced inputs and one balanced output (4 x 2 in 1).

• 4 identical sections with one balanced input and two balanced outputs each (4 x 1 in 2)
• Front operated switch for 2 x 1 in 2 or 1 in 4 operation (1 in 8 with internal access)

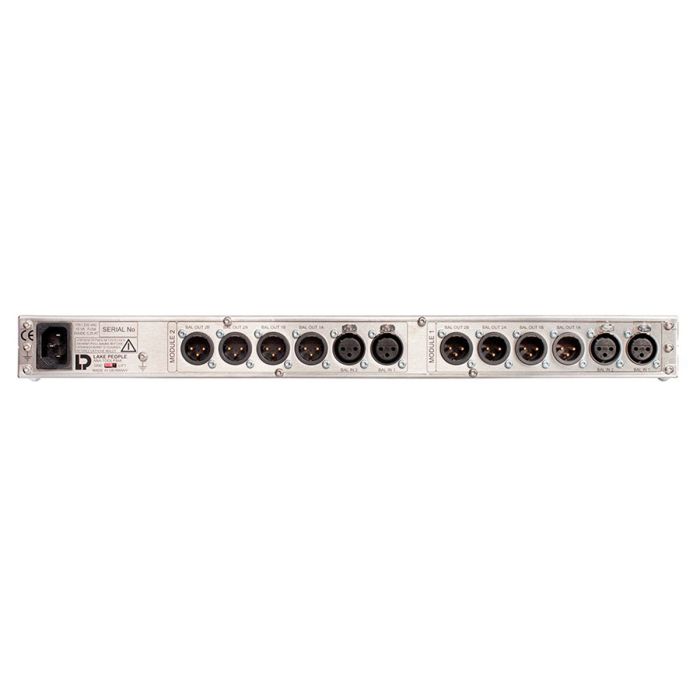

• Rear inputs electronically balanced via XLR
• XLR sockets with gold plated contacts
• Optimized for line-level signals, impedance 20 kohms
• Differencial input circuits specialized for highest common mode rejection ratio (CMRR)
• Internal filters to reduce the bandwidth to a save and useful range: 5 Hz … 70 kHz (-1 dB)
• Front accessible multiturn trimpots for level adjustment with a range from -12 … +12 dB
• Balancing of the output signals with optimized circuits for highest resistance- and voltage
• common mode rejection ratio (CMRR)
• Output impedance 30 Ohms according to IRT rules
• XLR type output sockets with gold plated contacts
• 19”, 1 U stainless steel case, front colour dark grey

• Item number 1006216
• Dimensions 483 x 44 x 166 mm (BxHxT)
• Output impedance 30 Ohm
• Input impedance 20 kOhm
• Housing 19" / 1 HE
• Line I/O 4 / 8 (XLR)
• Max. output level > +25 dBu
• Max. input level > +25 dBu
• Power supply Internal 230 V / 115 V AC
• THD+N (@ -1 dBFs) < -100 dB
• Frequency range 5 Hz - 40 kHz (-1 dB)
• Crosstalk < -100 dB @ 15 kHz
• Gain range -12 - +12 dB

• 1 x ANA-TOOL F844
• 1 x Power Cable
• 1 x Printed Manual
