Lake People DIGI-TOOL F611 AES/EBU Splitter & Distribution Amplifier
2 x 1 in 4 AES/EBU splitter
MPN: LAKE-F611 SKU: LAKE-F611

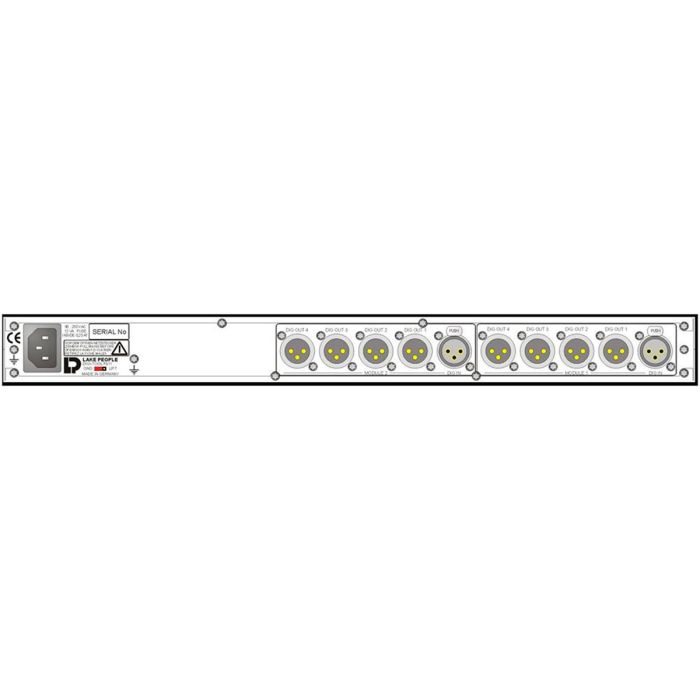

The Lake People DIGI-TOOL F611 is an AES/EBU Splitter with 2 modules, each with 1 input and 4 outputs. Inputs and outputs are transformer balanced, with impedance 110 ohms via XLR sockets according to AES 3/11.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Lake People DIGI-TOOL F611 is an AES/EBU Splitter with 2 modules, each with 1 input and 4 outputs. Inputs and outputs are transformer balanced, with impedance 110 ohms via XLR sockets according to AES 3/11.
The highly sensitive inputs regenerate improper or weak input signals, whilst the high output voltages are able to drive AES3 signals over long distances.
The Lake People DIGI-TOOL F611 offers failsafe operation through switchable Auto-Mode Multimode power supply 90 … 260V AC.
- AES3 Splitter
- 2 x Modules (1 in / 4 out)

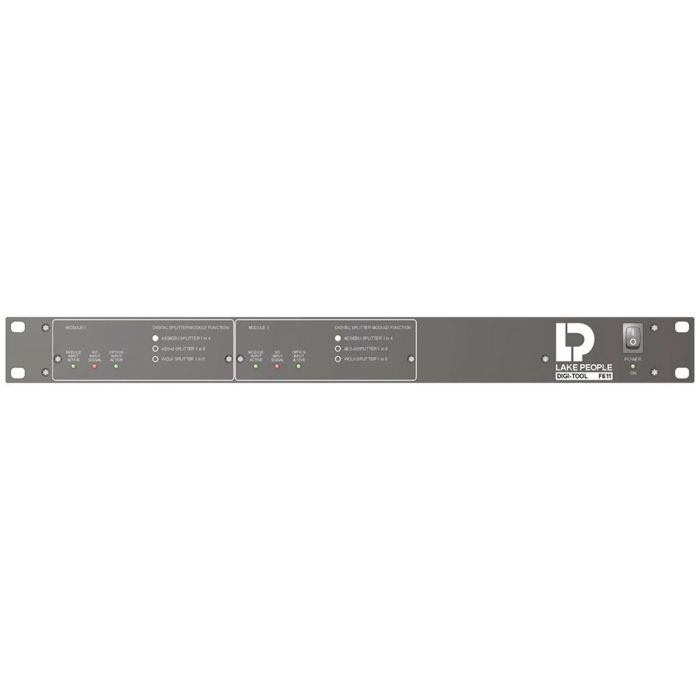

- Front panel status LEDs
- Made in Germany
- Item number 1006251
- Dimensions 483 x 44 x 166 mm (BxHxT)
- AES/EBU I/O 2 / 8 (XLR)
- Bit depth 24 Bit
- Output impedance 110 Ohm
- Input sensitivity < 200 mV
- Input impedance 110 Ohm
- Additional features Optional: Multi-Sync option available
- Housing 19" / 1 HE
- Sample rate Max. 192 kHz
- Power supply Internal 230 V / 115 V AC
- 1 x DIGI-TOOL F611
- 1 x Power Cable
- 1 x Printed Manual
