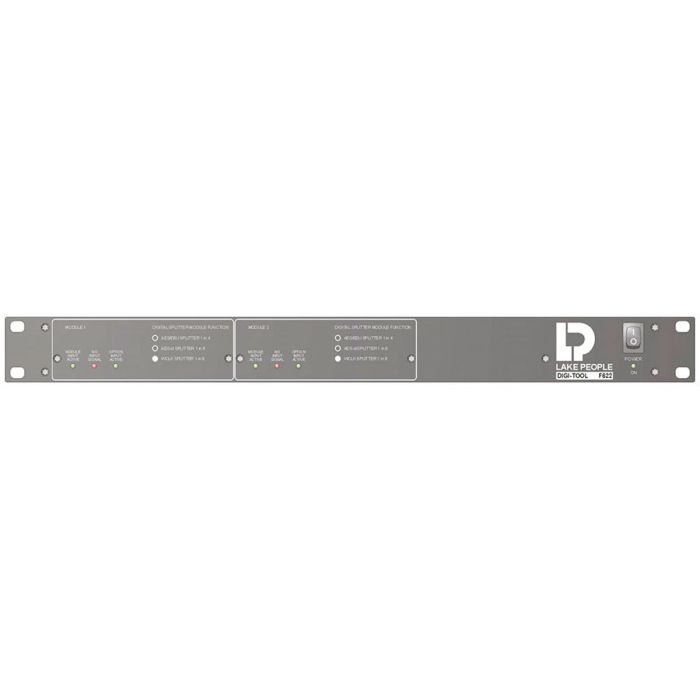

Lake People DIGI-TOOL F622 AES3id & WordClock Splitter / Distribution Amplifier
2 x 1 in 8 WCLK/AES-id splitter
MPN: LAKE-F622 SKU: LAKE-F622
The Lake People DIGI-TOOL F622 is a versatile digital audio splitter and distribution amplifier designed for use in professional recording and broadcast studios.
The F622 can handle both wordclock (WCLK) and AES-id signals, providing reliable signal distribution.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Lake People DIGI-TOOL F622 is a versatile digital audio splitter and distribution amplifier designed for use in professional recording and broadcast studios.
The F622 can handle both wordclock (WCLK) and AES-id signals, providing reliable signal distribution.
It has 2 inputs and 16 outputs, organized into two identical modules, each with 1 input and 8 outputs. It can operate as either two separate 1x8 splitters or a single 1x16 splitter.
High Sensitivity: The inputs are highly sensitive, capable of regenerating weak or corrupted signals, ensuring high-quality output.
Output Voltage: High output voltages (5 Vpp for wordclock and 1 Vpp for AES-id) allow the unit to maintain signal integrity over long distances.
Adjustable Impedance: Output impedance can be switched from 75 ohms to 50 ohms via jumpers. It can also be configured to output "Superclock 256 Fs" signals.
The unit is housed in a 19" 1RU rack-mountable design, with an internal power supply that automatically adjusts between 90 and 260 VAC.
- Digital distribution amplifier for WCLK or AES3-id signals
- 2 inputs and 16 outputs
- Two identical modules with 1 input and 8 outputs each
- Internal switching also allows for 1 input to 8 outputs

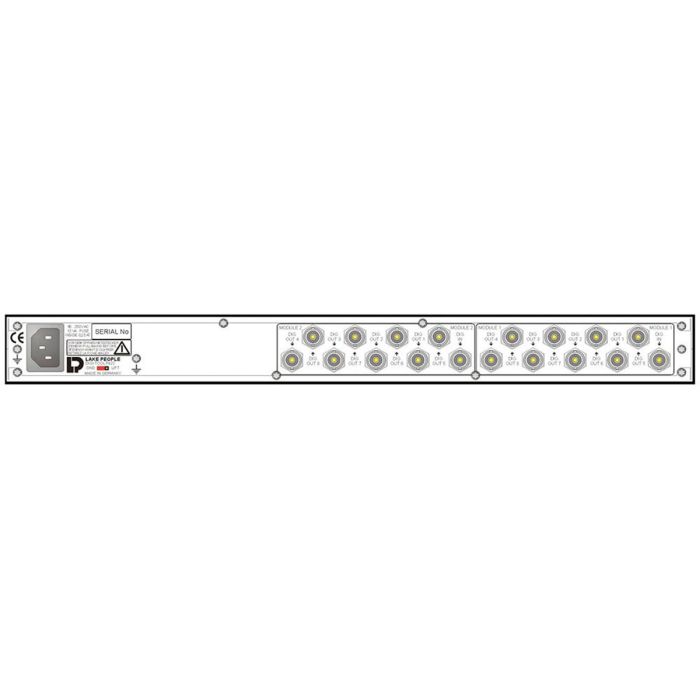

- Inputs and outputs unbalanced, impedance 75 Ohms via BNC connectors
- Highly sensitive inputs for regenerating dirty and degraded signals
- High output voltages for bridging long distances
- Output impedance switchable from 75 Ohms to 50 Ohms via jumpers
- Switchable to "Superclock 256 Fs" via jumpers
- Item number 1006253
- Dimensions 483 x 44 x 166 mm (W x H x D)
- Bit depth 24 Bit
- Output impedance 50 / 75 Ohm
- Input sensitivity < 200 mV
- Input impedance 75 Ohm
- Additional features Optional: Multi-Sync Option available
- Housing 19" / 1 HE
- Power supply Internal 230 V / 115 V AC
- SPDIF I/O 2 / 16 (BNC)
- 1 x DIGI-TOOL F622
- 1 x Power Cable
- 1 x Printed Manual
