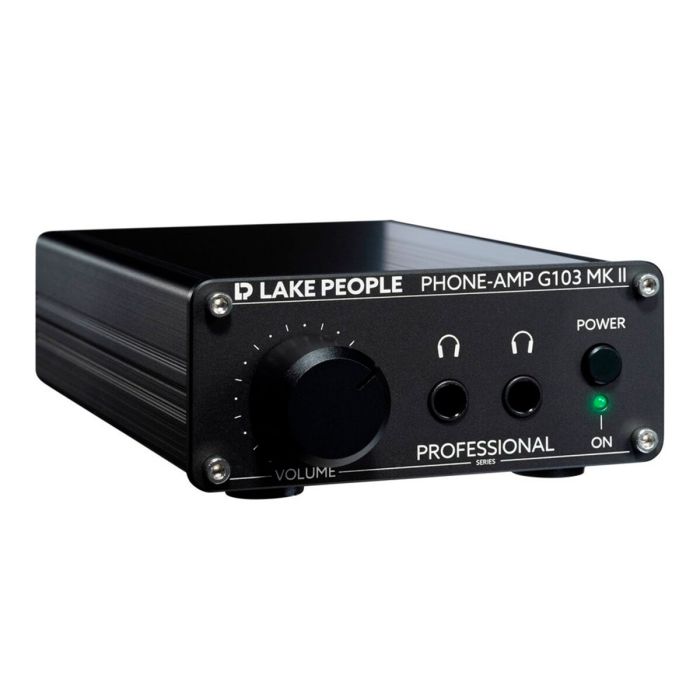

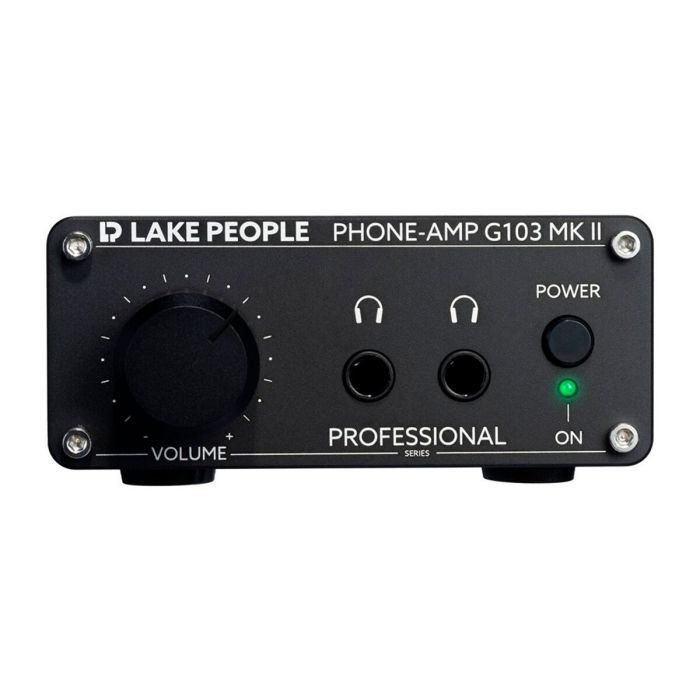

Lake People G103-P MKII-B (Broadcast Version) Stereo Headphone Amplifier

The Lake People Phone-Amp G103-P MKII-B Broadcast Version is a stereo headphone amplifier designed for recording studios and live sound. Unlike most comparable models with a fixed output gain, the G103-P MKII-B features adjustable gain via its internal jumpers, to better match specific headphone characteristics. As a result, this headphone amplifier is able to drive nearly all existing headphones - from 8 … 600 ohms load impedance.

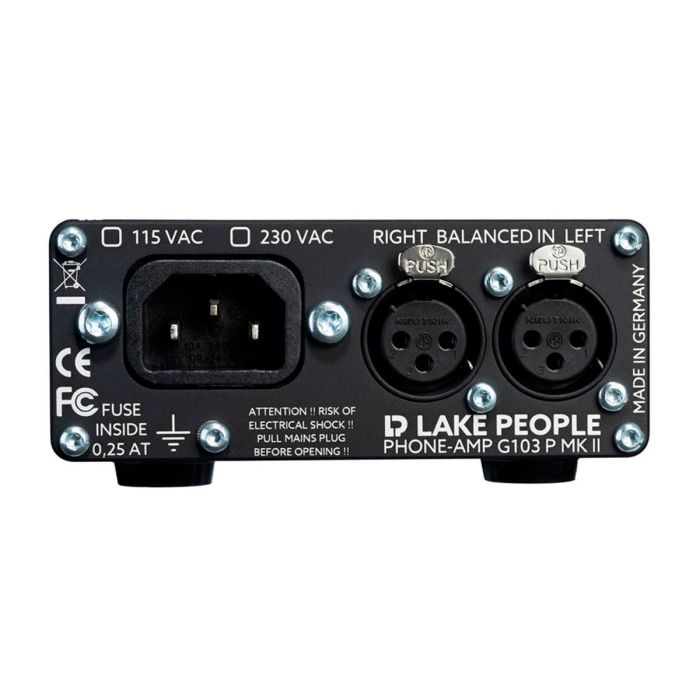

The G103-P MKII-B features balanced analogue inputs on XLR connections.

Because of its noise- and THD-optimized circuitry layout, G103-P MKII-B covers high quality demands.

Despite the compact dimensions, the G103-P MKII-B offers optimum flexibility and high power. Reliability even under rough or improper handling conditions has been another important goal of development. Thus, the unit is absolutely long-term short-circuit proof.

In addition, the G103-P MKII-B is equipped with filters to prevent overload by inaudibly low and high frequencies.

The case of G103-P MKII-B is made of black anodized aluminium, including the front- and back panels, providing high mechanical stability and resistance against the roughest of conditions on the road. The outer case provides excellent electrical conductivity for optimum EMC characteristics, limiting against any unwanted electromagnetic interference.

Mains power is connected via a three-pin IEC/CEE socket and a matching three-wire mains cable. The unit is factory-set to a mains voltage of 230 V AC.

Mains voltage may vary between 190 and 250 without any effect on flawless operation. The built-in mains transformers provide the internal supply voltages of approx. +/- 25 V.
