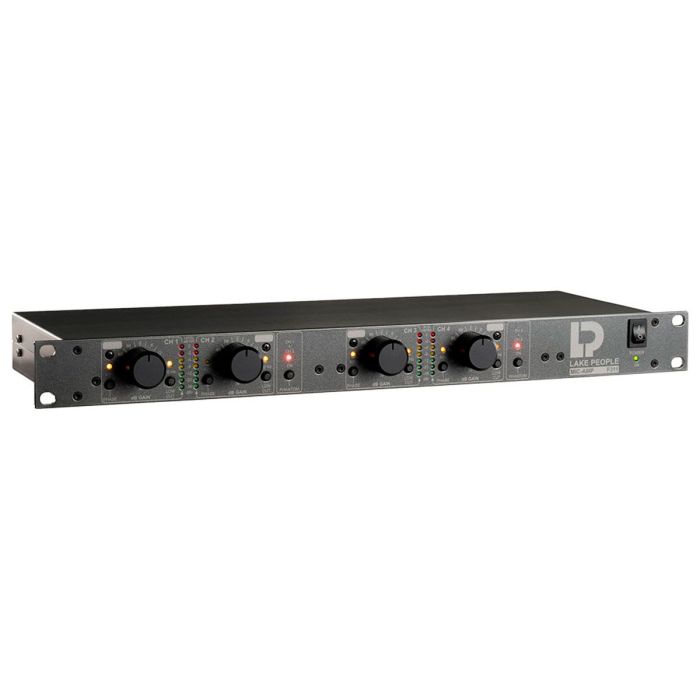

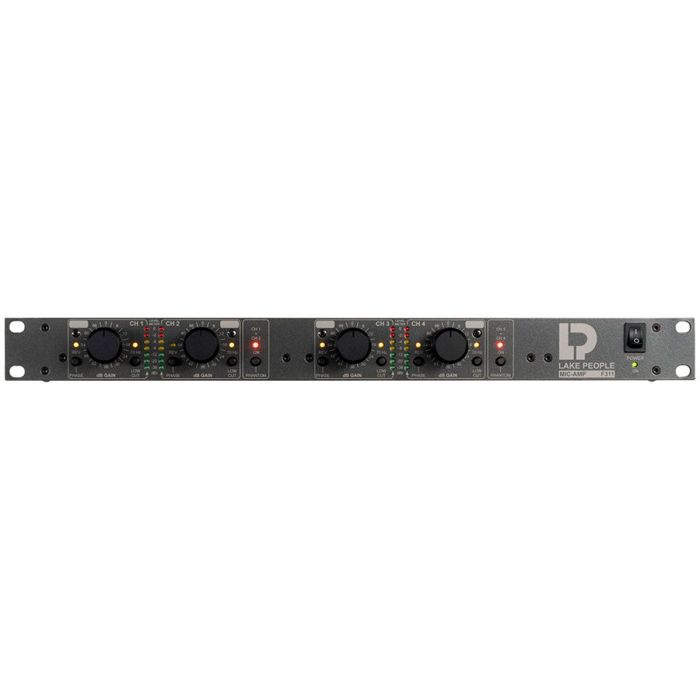

Lake People Mic-Amp F311 Q Professional 4-Channel Microphone Preamplifier
4-Channel microphone preamp
MPN: LAKE-F311-Q SKU: LAKE-F311-Q
The F-SERIES from Lake People encompasses top-tier audio products, boasting exceptional features, superior technical specifications, and impeccable craftsmanship.
The MIC-AMP F311 Q is a four-channel ultra-low noise microphone preamplifier with excellent audio performance, 66dB of gain, plus low cut, Phase invert and 48v Phantom power.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The F-SERIES from Lake People encompasses top-tier audio products, boasting exceptional features, superior technical specifications, and impeccable craftsmanship.
The MIC-AMP F311 Q is a four-channel ultra-low noise microphone preamplifier with excellent audio performance, 66dB of gain, plus low cut, Phase invert and 48v Phantom power.
Ideal for "on-location" recording, bypassing insufficient mixing console preamps or "direct-to-tape" sessions.
Gain is settled with costly 12-step switches and so exactly reproducable and equal for both channels.
Forget simple and cheap gain adjustments via potentiometers - Lake People leaves that to the competition!
The amp is mains powered via a ISC/CEE socket with either 230 or 115 V AC (internally switchable).

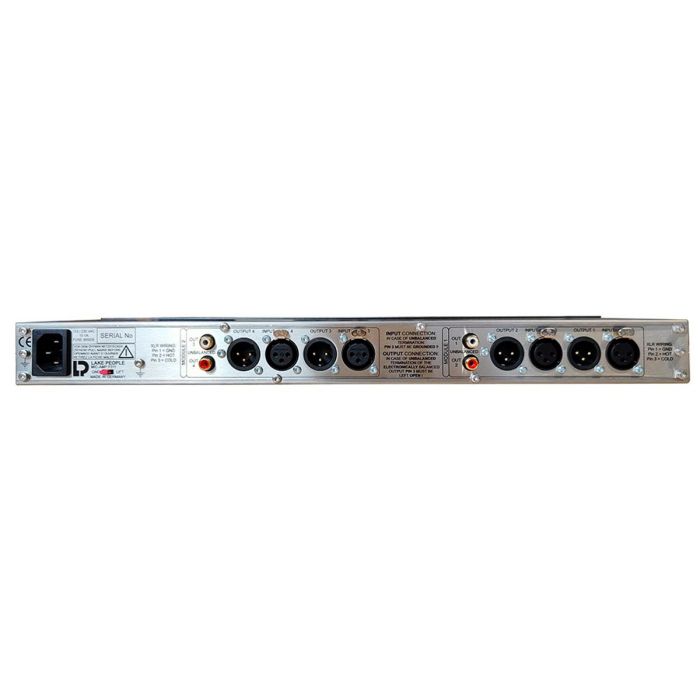

- Electronically balanced inputs and outputs via XLR
- Unbalanced outputs via cinch/RCA
- Switchable Lo-Cut, 12 dB/Oct. with 70 Hz corner frequency
- 7-stage level display, -36 … 0 dBr, internally calibratable
- Precise step switch for adjusting the gain
- Phantom power 48v can be switched for 2 channels each
- Extremely broadband frequency response 5 Hz - 150 kHz @ - 3dB
- 0 ... +66 dB switchable in 12 steps of 6 dB each
- Noise -129 dB at 60 dB gain
- Unbalanced outputs via RCA
- Made in Germany
- Item number 1006621
- Dimensions 483 x 44 x 166 mm (WxHxT)
- Output Impedance < 30 Ohm
- Input Impedance 5 kOhm
- Additional Features Lo-Cut, 48V phantom power, phase reversal, 4-stage level display
- Housing 19" / 1 HE
- Max. Output Level > +25 dBu
- Max. Input Level > +21 dBu
- Mic Gain 0 - +66 dB
- Noise -129 dB (@ 60 dB gain)
- Power Supply Internal 230 V / 115 V AC
- THD+N (@ -1 dBFs) < 0.001 %
- Frequency Range 5 Hz - 70 kHz (-3 dB)
- Amplifier Channels 4
- 1 x PHONE-AMP F311 Q
- 1 x Power Cable
- 1 x Printed Manual
