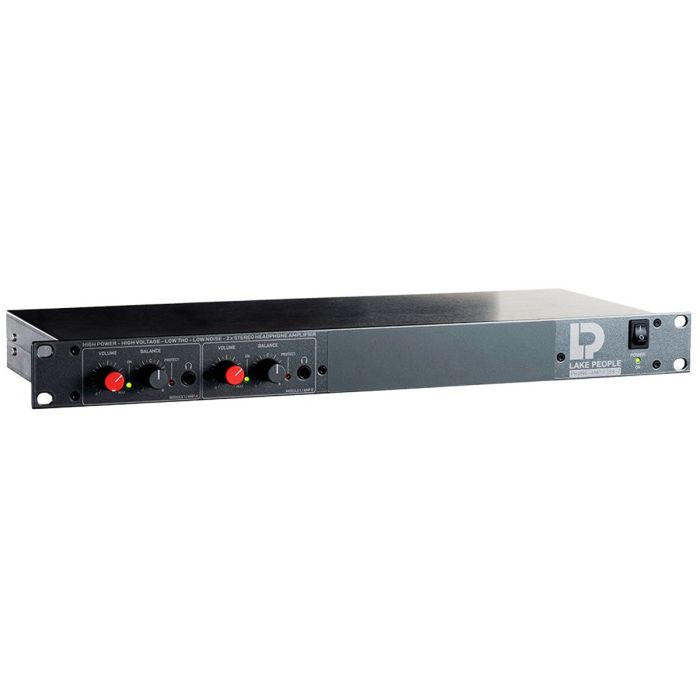

Lake People Phone-Amp F388-2-Q 1U, 19" Rack-Mount Quad Headphone Amplifier
4-Channel headphone amp, 19"
MPN: LAKE-F388-2-Q SKU: LAKE-F388-2-Q
The F388-2-Q is a powerful and durable headphone amplifier in 19" format with an two additional balanced stereo input pairs on the back.
Each of the four headphone outputs features an identical amp section, with independent volume and balance control for each stereo pair.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The F388-2-Q is a powerful and durable headphone amplifier in 19" format with an two additional balanced stereo input pairs on the back.
Each of the four headphone outputs features an identical amp section, with independent volume and balance control for each stereo pair.
The stereo signal from module 1 can be looped through to module 2 with a link switch.
Internally, Pre-Gain can be set to -12 / -6 / 0 / +6 / +12 dB to adapt the amp to virtually every source - headphone combination.
The amplifiers feature a very low output impedance, driving low-impedance headphones without any colouration.
And thanks to the F388-2-Q's unusually high internal operating voltage, a more than adequate sound level is maintained even with high-impedance headphones.
- 19", 1U rack mount Stereo headphone amplifier
- 4 x balanced signal inputs via XLR
- 4 x headphone outputs with independent volume and balance control
- Dedicated stereo amplifier for each front panel headphone output
- Amplification can be switched internally to -12 / -6 / 0 /+6 / +12 dB
- 2 x Additional outputs via 1/4” stereo jacks on the back panel
- Made in Germany
- Item number 1006996
- Dimensions 483 x 44 x 166 mm (WxHxT)
- Input Sensitivity +6 dBu
- Input Impedance 10 kOhm
- Housing 19" / 1 HE
- Headphone Out 4
- Line I/O 4 / 4
- Max. Output Level 425mW (600 Ohm) /
- 800 mW (300 Ohm) /
- 2250 mW (100 Ohm) /
- 1620mW (50 Ohm) /
- 1100 mW (32 Ohm) /
- 490 mW (16 Ohm)
- Signal-to-Noise Ratio (SNR) > 120dBA
- Power Supply Internal 230 V / 115 V AC
- THD+N (@ -1 dBFs) < 0.002 %
- Frequency Range 5 Hz - 50 kHz (-0.5 dB)
- Crosstalk < -80 dB
- Amplifier Channels 4
- 1 x PHONE-AMP F388-2-Q
- 1 x Power Cable
- 1 x Printed Manual
