Lexicon PCM96 Surround Reverb Processor (AES Only)
Parallel Stereo and Surround Reverb/Effects Processor w/ Digital I/O
MPN: LEX-PCM96-AES SKU: PCM96SUR-D
Building on the success of the PCM96, the new PCM96 Surround offers more presets, more configuration options, and more inputs and outputs. The PCM96 Surround gives you industry standard reverbs and effects, with tremendous flexibility. Use the PCM96 Surround as a plug-in with your DAW, or keep it connected to your mixing board. Either way, you have a multitude of configuration options to choose from, without having to move any cables.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Call for Lead Time
Building on the success of the PCM96, the new PCM96 Surround offers more presets, more configuration options, and more inputs and outputs. The PCM96 Surround gives you industry standard reverbs and effects, with tremendous flexibility. Use the PCM96 Surround as a plug-in with your DAW, or keep it connected to your mixing board. Either way, you have a multitude of configuration options to choose from, without having to move any cables.

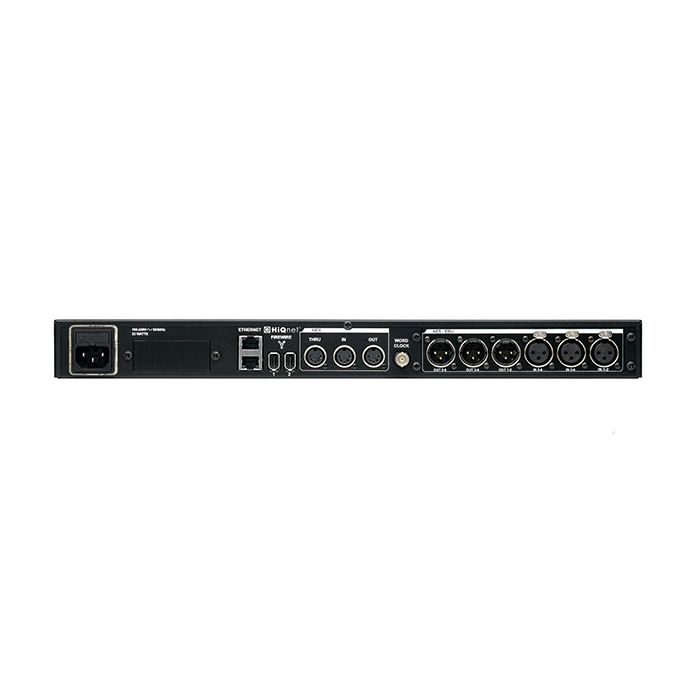

2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O
New Parallel Stereo and Sorround configurations
50 legendary Lexicon reverbs, delays, and modulation effects
Lexion's new Surround Room algorithm, used to generate a vast array of room-related effects for music and post
New Pitch algorithms
Seamless automation and control via Ethernet or FireWire
Over 2200 factory presets, including recognizable classics from Lexicon's immense library of sounds
Hardware Plugin capability inside Mac VST, Audio Units, or RTAS software
32-bit floating point processing
Sample rates up to 96kHz
External BNC Wordclock
MIDI in, out and thru
768 user presets
Compact Flash for additional storage
Analogue Inputs
- Connectors: One 25-pin Dsub female connector
- Impedance: 20K Ohm, balanced
- Level (for 0 dbFS)
- +4dBu mode: +20dBu
- -10dBV mode: 8.2dBu
- Freq Response @96K
- 20Hz - 22kHz, ±.15dB
- 20Hz - 46kHz ±.5dB
- A/D Conversion: 24 bits
- A/D Dyn Range: >112 dB unweighted, 115dB A-weighted
- THD: <0.002% 20 → 20kHz @ +4dBu
- Crosstalk @ 1Khz: <–75dB at 20 → 20k with a +20dBu input signal
Analogue Outputs
- Connectors: One 25-pin Dsub female connector
- Impedance: 30 Ohm, electronically balanced
- Level (for 0 dbFS)
- +4dBu mode: +20dBu
- -10dBV mode: 8.2dBu
- Freq Response @96K
- 20Hz - 22kHz, ±.15dB
- 20Hz - 46kHz ±.5dB
- D/A Conversion: 24 bits
- D/A Dyn Range: 112 dB unweighted, 115 dB A-weighted
- THD: <0.002% 20Hz - 20kHz at +4dBu
- Crosstalk @ 1kHz: <–75dB at 20Hz - 20kHz with a +20dBu input signal
Digital Audio I/O
- Connectors: One 25-pin Dsub female connector
- Two FireWireTM Ports
- Format: AES/EBU/FireWire (400Mb)
- Word Size: 24 bits
Sample Rates
- Internal: 44.1kHz/48kHz/88.2kHz/96kHz
- Accuracy: within ±50ppm
- External: 44.1kHz/48kHz/88.2kHz/96kHz
- Lock Range: ±2% of nominal
