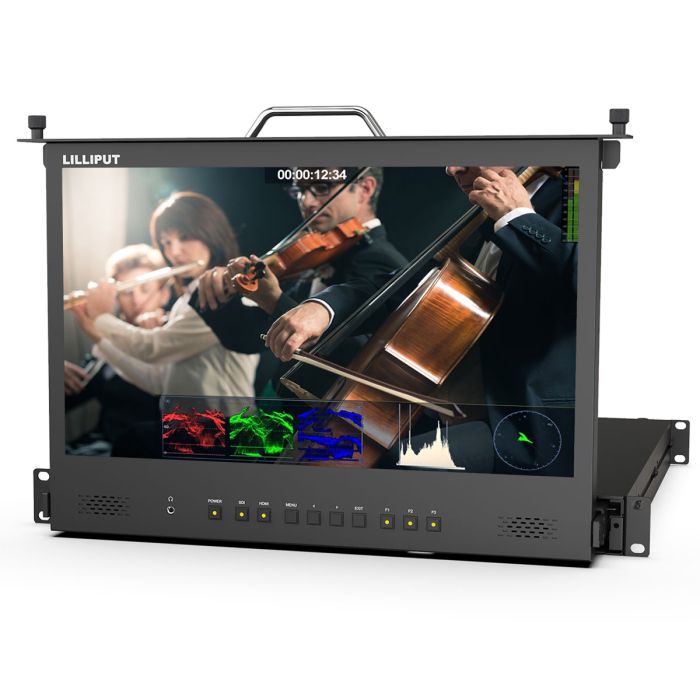

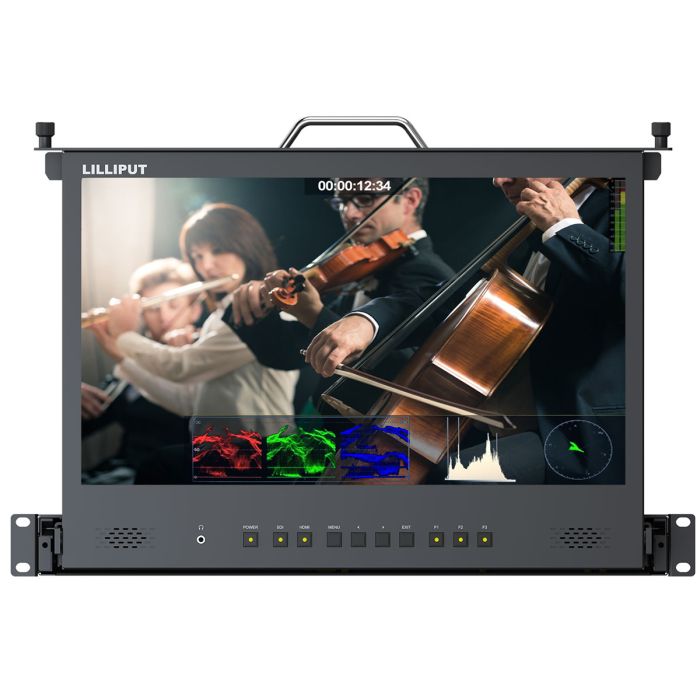

Lilliput RM-1731S 17.3 Inch 3G-SDI 1RU Pull-Out Rackmount Monitor
Rack Mount Monitor
MPN: RM-1731S SKU: RM-1731S

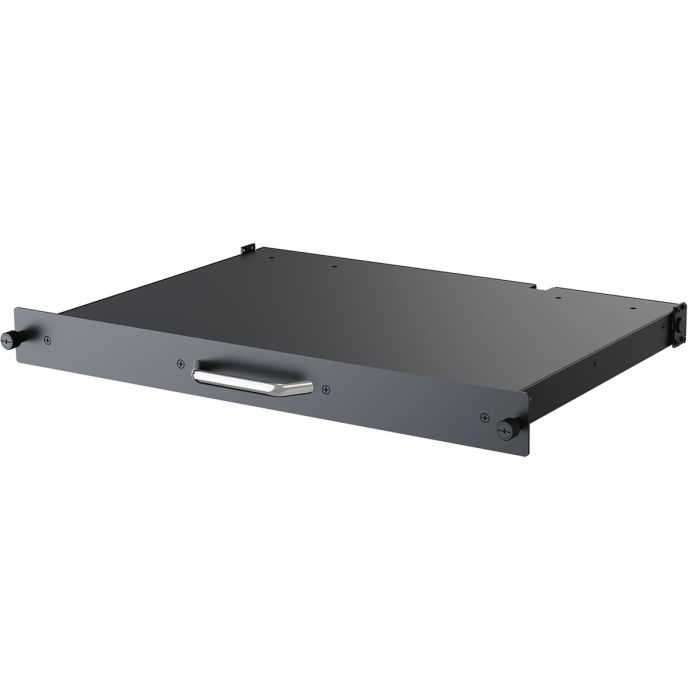

The RM-1731S is a 1RU pull-out rackmount monitor, featuring a 17.3 inch full HD IPS screen with excellent picture quality and good colour reduction for both video and text. It’s interfaces support 3G-SDI and HDMI2.0 signals inputs and loop outputs. The ideal solution for streaming workflows, live events and installation into space-conscious rack systems.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The RM-1731S is a 1RU pull-out rackmount monitor, featuring a 17.3 inch full HD IPS screen with excellent picture quality and good colour reduction for both video and text. It’s interfaces support 3G-SDI and HDMI2.0 signals inputs and loop outputs. The ideal solution for streaming workflows, live events and installation into space-conscious rack systems. For the advanced camera auxiliary functions, such like waveform, vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.
- Feature: 1920x1080, HDMI2.0/SDI, ,
- Screen Size:17.3 inches
- Resolution:1920x1080
- Screen:IPS
- Aspect Ratio:16:9
- Housing Material:Metal
- Brightness:300 cd/m^2
- Inputs:3G-SDI, HDMI, LAN
- Remote Control
- HDR/3D-LUT
Display
- Size: 17.3”
- Resolution: 1920×1080
- Brightness: 300cd/m²
- Aspect ratio: 16:9
- Contrast: 800:1
- Viewing Angle: 170°/170°(H/V)

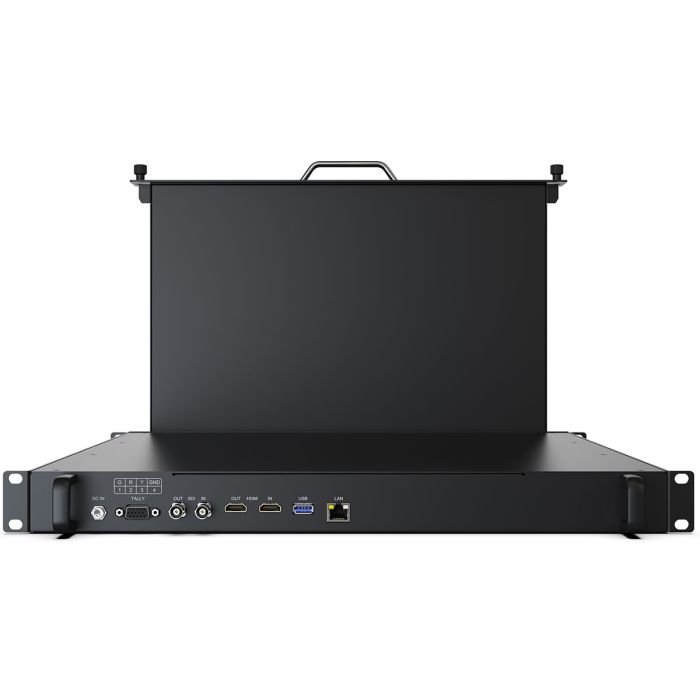

Video Input
- SDI: 1×3G
- HDMI: 1×HDMI 2.0
- LAN: 1
Video Loop Output
- SDI: 1×3G
- HDMI: 1×HDMI 2.0
Supported In / Out Formats
- SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60…
- HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60
Audio In/Out
- SDI: 12ch 48kHz 24-bit
- HDMI: 8ch 24-bit
- Ear Jack: 3.5mm – 2ch 48kHz 24-bit
- Built-in Speakers: 2
Power
- Operating power: ≤14W(12V)
- DC In: DC 10-24V
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
Other
- Dimension(LWD): 482.5×44×507.5mm
- Weight: 8.9kg (with case)
