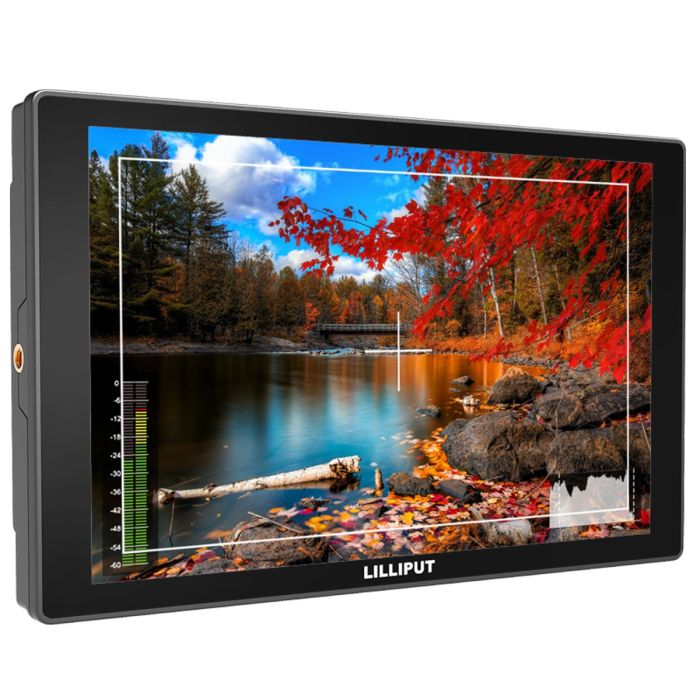

Lilliput A11 10.1 Inch 4K Camera-top Monitor
10.1 inch 4K Camera-top monitor
SKU: A11
This 10.1” monitor is compatible with world-famous 4K/FHD camera brands, providing cameramen with an enhanced photography experience. It is ideal for a variety of applications, including on-site filming, live broadcasting, moviemaking, and post-production.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually ships in 2-3 Days
A Better Camera Assist
The A11 is designed to complement world-famous 4K and FHD camera brands, enhancing the photography experience for professionals. It is ideal for a variety of applications, including on-site filming, live broadcasting, movie production, and post-production.

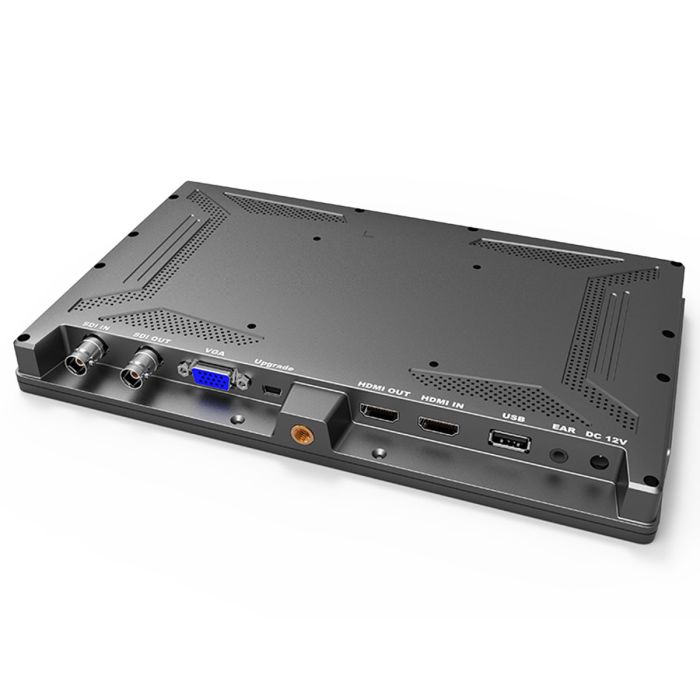

4K HDMI / 3G-SDI Input & Loop Output
- Supports 3G-SDI signals for high-quality video transmission.
- 4K HDMI format supports 4096×2160 at 24p and 3840×2160 at 23/24/25/29/30p.
- HDMI/SDI loop output allows signals to be sent to another monitor or device for extended viewing.
Excellent Display
- 10.1-inch LCD panel with 1920×1200 native resolution for superior image clarity.
- High contrast ratio of 1000:1 and 320 cd/m² brightness.
- 175° wide viewing angle for an immersive FHD visual experience.
- Full lamination technology enhances display quality and reduces reflections.
G+G Technology
The Glass+Glass (G+G) technology provides a smooth and durable body design while offering the widest viewing experience. This enhances the performance of auxiliary functions when used with camera kits.
Camera Auxiliary Functions & User-Friendly Controls
- Equipped with essential camera assist tools, including peaking, false color, and an audio level meter.
- F1 & F2 user-definable buttons allow quick access to custom auxiliary functions such as peaking, underscan, and check field.
- Dial control enables easy adjustments to sharpness, saturation, tint, and volume.
Battery & Mounting Options
- VESA 75mm mount design for flexible installation.

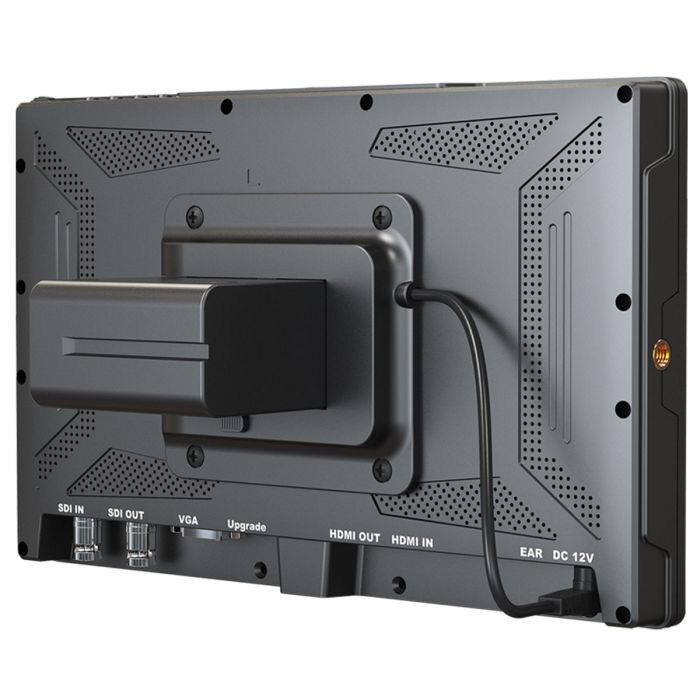

- Supports Sony F-series batteries (F970 battery provides over 4 hours of continuous operation).
- Compatible with optional V-lock and Anton Bauer mounts for extended power solutions.
- High-resolution 1920×1200 pixel display
- High contrast ratio of 1000:1
- Supports 4K HDMI input with loop-through output
- Supports 3G-SDI input with loop-through output
- Supports VGA input for added compatibility
- Features unique Glass+Glass technology for enhanced durability and clarity
- F1 & F2 user-definable buttons for quick access to auxiliary functions
- Includes advanced camera auxiliary functions for professional monitoring
- Comes with battery plates compatible with Sony F-970
- Equipped with 75mm VESA mounting holes for flexible installation
Display
- Size: 10.1”
- Resolution: 1920 × 1200
- Brightness: 320 cd/m²
- Aspect Ratio: 16:10
- Contrast Ratio: 1000:1
- Viewing Angle: 175° (H) / 175° (V)
Video Input
- SDI: 1 × 3G-SDI
- HDMI: 1 × HDMI 1.4
- VGA: 1
Video Loop Output
- SDI: 1 × 3G-SDI
- HDMI: 1 × HDMI 1.4
Supported Input & Output Formats
- SDI: 720p (50/60), 1080i (50/60), 1080pSF (24/25/30), 1080p (24/25/30/50/60)
- HDMI: 720p (50/60), 1080i (50/60), 1080p (24/25/30/50/60), 2160p (24/25/30)
Audio Input & Output (48kHz PCM Audio)
- SDI: 12-channel, 48kHz, 24-bit
- HDMI: 2-channel, 24-bit
- Ear Jack: 3.5mm, 2-channel, 48kHz, 24-bit
- Built-in Speakers: Yes (1)
Power
- Operating Power: ≤13W
- DC Input: DC 7-24V
- Compatible Batteries: NP-F Series
- Battery Input Voltage: 7.2V (nominal)
Environmental Conditions
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
Other Specifications
- Dimensions (L × W × D): 252 × 157 × 25 mm
- Weight: 550g
