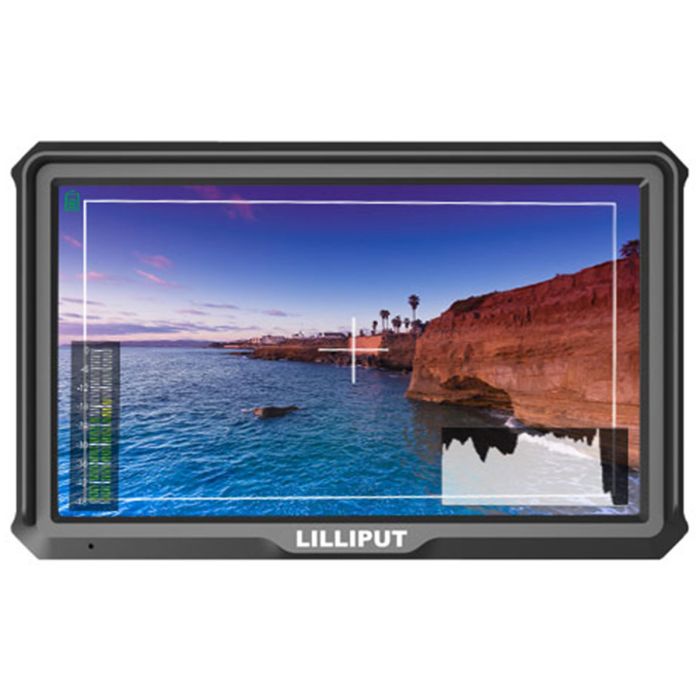

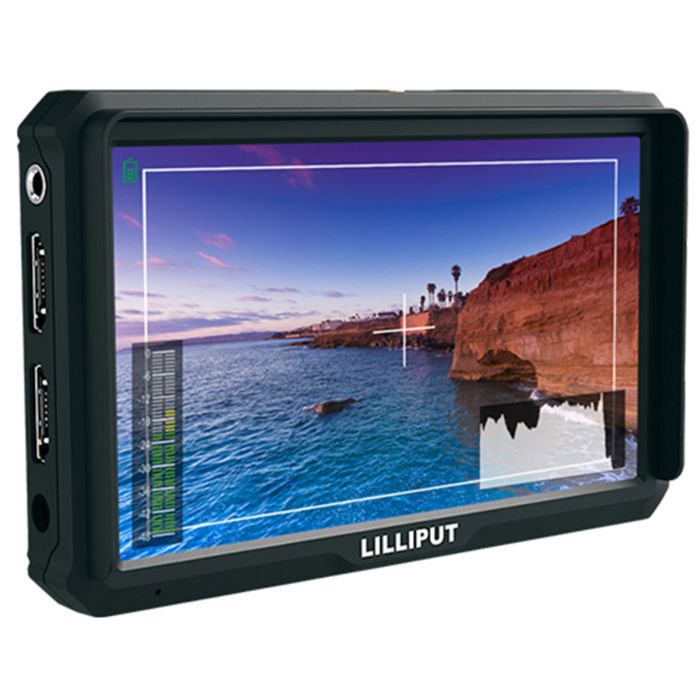

Lilliput A5 5-Inch 4K HDMI Monitor

The A5 is a portable camera-top monitor designed specifically for handheld stabilizers and micro-film production. It weighs only 118g and features a 5-inch 1920x1080 Full HD display with excellent picture quality and accurate color reproduction. The HDMI ports support signal input up to 4096x2160 (4K) and loop output. Advanced camera auxiliary functions, such as peaking filter and false color, have undergone professional testing and calibration, ensuring accurate parameters that meet industry standards.

A Better Camera Assist
The A5 is compatible with world-renowned 4K/FHD camera brands, providing cameramen with an enhanced photography experience for a variety of applications, including on-site filming, live broadcast, movie production, and post-production.

4K HDMI Input & Loop Output
The 4K HDMI format supports 4096×2160 at 24p and 3840×2160 (23/24/25/29/30p). HDMI signals can be looped through to another monitor or device when input to the A5.

Excellent Display
The A5 features a creatively integrated 1920x1080 native resolution on a 5-inch 8-bit LCD panel, offering clarity far beyond retina-level resolution. It boasts a 1000:1 contrast ratio, 400 cd/m² brightness, and a 170° wide viewing angle. With full lamination technology, it delivers every detail in stunning Full HD visual quality.

Wide Color Gamut
The A5 supports a wide color space, including ITU-R BT.709, and is equipped with precise color calibration for accurate color reproduction and excellent grayscale performance.

Camera Auxiliary Functions & Easy-to-Use
The A5 offers a range of auxiliary functions to assist with photography and filmmaking, including peaking, false color, and an audio level meter. The F1 and F2 user-definable buttons allow for quick access to custom functions like peaking, underscan, and checkfield. Use the arrow buttons to select and adjust settings such as sharpness, saturation, tint, and volume.

Dual-Purpose Battery Plate & 118g Lightweight Design

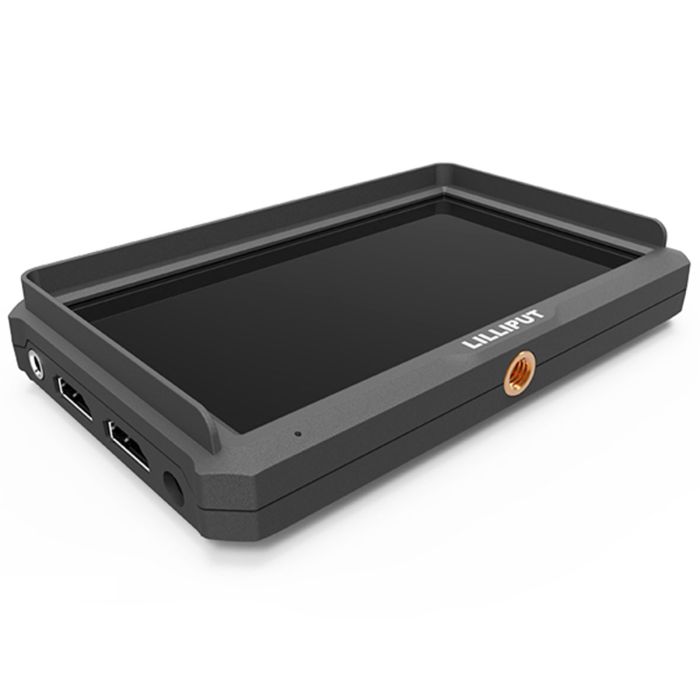

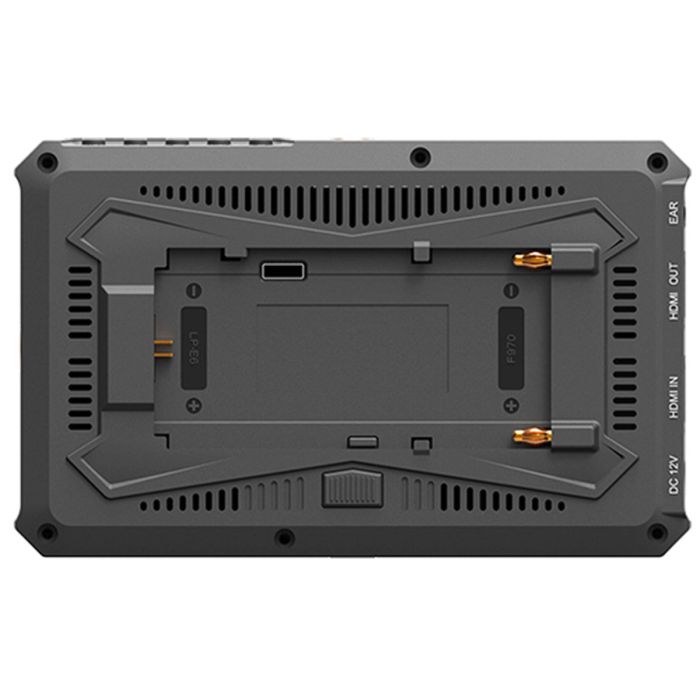

The A5 is compatible with two types of lithium batteries (Sony NP-F and Canon LP-E6) for a single battery plate, providing extended operational time for cameramen during shoots. Its lightweight design makes it highly convenient for outdoor or handheld use. The hot shoe mount allows easy attachment of the A5 to the top of a camera or camcorder.
