Lilliput BM150-12G 15.6 Inch 12G-SDI Broadcast Director Monitor
15.6 inch HDMI/12G-SDI Fight-Case and Rack-Mountable Monitor with 4K panel, Quad-View and Tally
MPN: BM150-12G SKU: BM150-12G
The BM150-12G is a 15.6-inch 4K broadcast monitor with Ultra HD resolution, 12G-SDI and HDMI connectivity, and multi-view support - ideal for professional broadcast, on-site monitoring, and live production environments.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The BM150-12G is part of LILLIPUT’s BM-12G series of 4K broadcast monitors. This 15.6-inch director monitor features a 3840 × 2160 Ultra HD native resolution and a 1000:1 contrast ratio, delivering an excellent viewing experience.
It supports 12G-SDI input with loop-through output and is backward compatible, as well as HDMI inputs up to 4K at 60Hz. The monitor can display multiple signals simultaneously; including 12G-SDI, 3G-SDI, and HDMI - in multi-view mode.

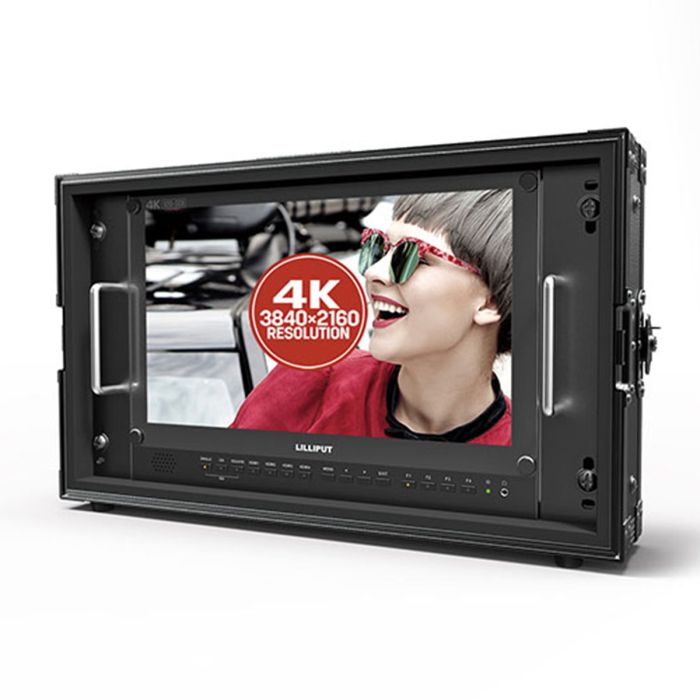

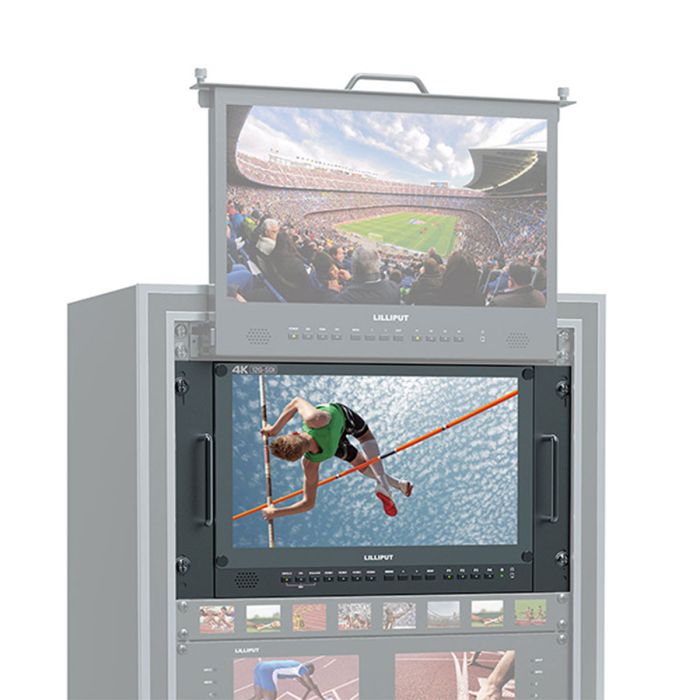

Supplied with a carry case and a 6U rackmount option, it offers flexible mounting solutions for broadcast, on-site monitoring, and live production environments
- Screen Size:15.6 inches Resolution:3840x2160
- Screen:IPS
- Aspect Ratio:16:9
- Housing Material:Metal
- Brightness:330 cd/m^2

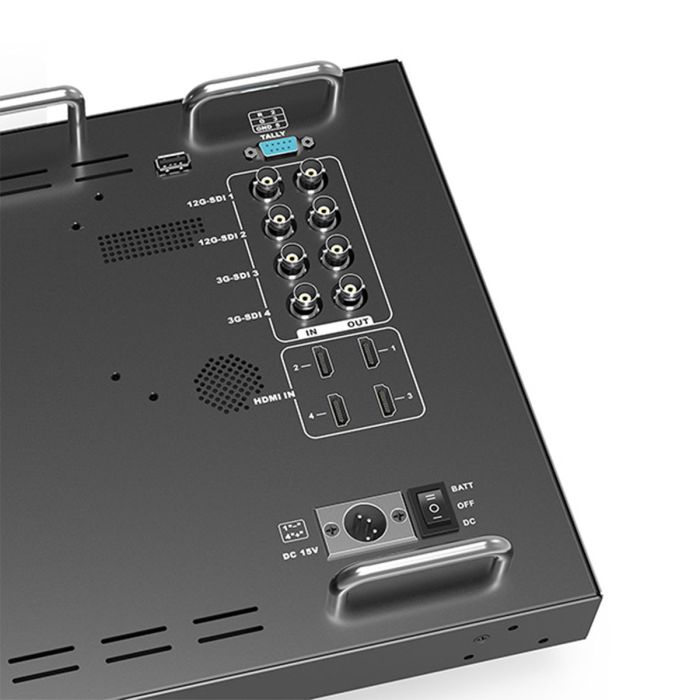

- Inputs:12G-SDI, 3G-SDI, HDMI, Tally
- SDI inputs and loop outputs
- Intelligent SDI Monitoring

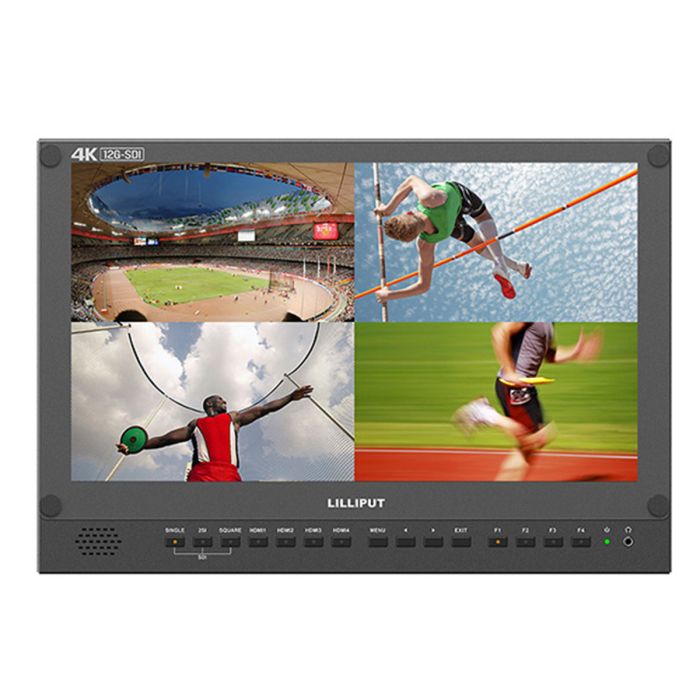

- Quad View
Display
- Panel: 15.6″
- Resolution: 3840*2160
- Aspect Ratio: 16:9
- Brightness: 330 cd/m²
- Contrast: 1000: 1
- Viewing Angle: 176°/176°（H/V)
Video Input
- SDI: 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
- HDMI: 1×HDMI 2.0, 3xHDMI 1.4
Video Loop Output
- SDI: 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
Supported In/Out Formats
- SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
- HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio)
- SDI: 12ch 48kHz 24-bit
- HDMI: 2ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 2
Power
- Operating power ≤32W
- DC In DC 12-24V
- Compatible batteries V-Lock or Anton Bauer Mount
- Input voltage (battery) 14.4V nominal
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
Other
- Dimension(LWD): 389×267×38mm / 524×305×170mm (with case)
- Weight: 3.4kg / 12kg (with case)
