Lilliput BM150-4KS 12.5 Inch 4K Broadcast Director Monitor

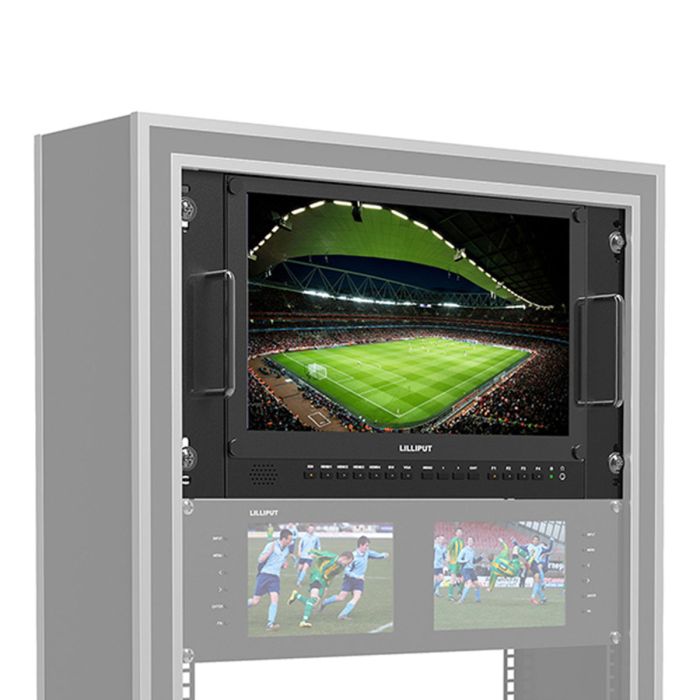

15.6 inch HDMI/3G-SDI flight-case and rack-mountable monitor with 4K panel, Quad-View and Tally
MPN: BM150-4KS SKU: BM150-4KS
BM150-4KS is a 4K broadcast monitor suitable for director and filmmakers, developed specifically for FHD/4K/8K cameras, switchers and other signal transmission devices. Features 3840×2160 Ultra-HD native resolution screen with excellent quality and good colour reduction.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
BM120-4KS is a 12.5″ 4K resolution monitor with 3840 x 2160 native resolution. It features two HDMI 2.0 inputs that support 4K HDMI 60Hz, and it also has two HDMI 1.4b as well as a 3G-SDI, VGA, and DVI input. The monitor features a single 3G-SDI output.. It supports SDR, HDR 10,3D-LUT, peaking, false, histogram,etc.

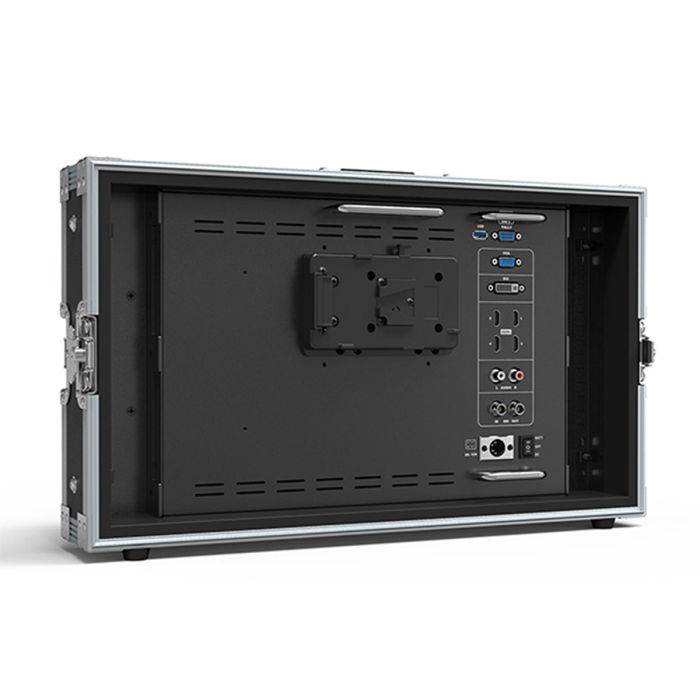

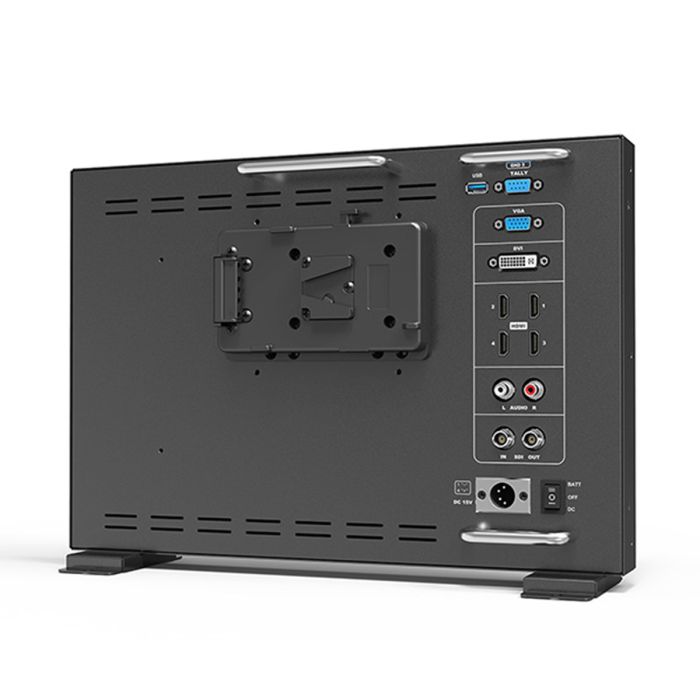

It is built into a hard protective carry on flight case which is just about 4KG. The LCD monitor is mounted on the lid, while the inputs, outputs, power connectors, and control buttons, V mount battery plates reside in the bottom, allowing you to connect your monitor without having to access the back of the monitor. An external rail with 1.4″-20 threaded holes along the side of the case is ideal for mounting wireless devices that can be powered by the 8 VDC output from monitor, It is designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment or can be used by camera crews to shoot outdoors in the field.
- Portable and lightweight
- Excellent Color Space

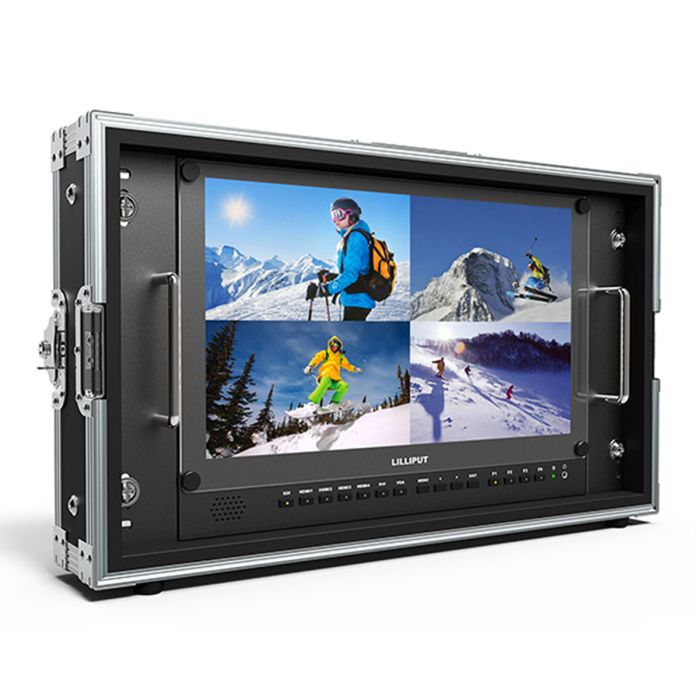

- Quad Views Display
- 4K HDMI & 3G-SDI
- Support External Wireless Transmitter
- HDR
- 3D LUT
- Camera Auxiliary Functions: Povides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.
- Outdoor Power Supply: The V-mount battery plate is embedded in the suitcase and can be powered by a 14.8V lithium V-mount battery. Provides extra power when shooting outdoors in the field.
- V-mount Battery: Compatible with mini V-mount battery brands on the market. A 135Wh battery will keep the monitor working for 7 - 8 hours.The length and width of the battery should not exceed 120mm×91mm.
Display
- Panel: 12.5″ LCD
- Physical Resolution: 3840*2160
- Aspect Ratio: 16:9
- Brightness: 400 cd/m²
- Contrast: 1500: 1
- Viewing Angle: 170°/170°（H/V)
Input
- 3G-SDI: 3G-SDI (support up to 1080p 60Hz)
- HDMI: HDMI 2.0 ×2 (support up to 4K 60Hz) / HDMI 1.4b ×2 (support up to 4K 30Hz)
- DVI: 1
- VGA: 1
- Audio: 2 (L/R)
- Tally: 1
- USB: 1
Output
- 3G-SDI: 3G-SDI (support up to 1080p 60Hz)
Audio
- Speaker: 1
- Ear Jack: 1
Power
- Input Voltage DC 10-24V
- Power Consumption ≤23W
- Battery Plate: V-mount battery plate
- Power Output: DC 8V
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: 10℃~60℃
Other
- Dimension(LWD): 356.8mm × 309.8mm × 122.1mm
- Weight: 4.35kg (include accessories)
