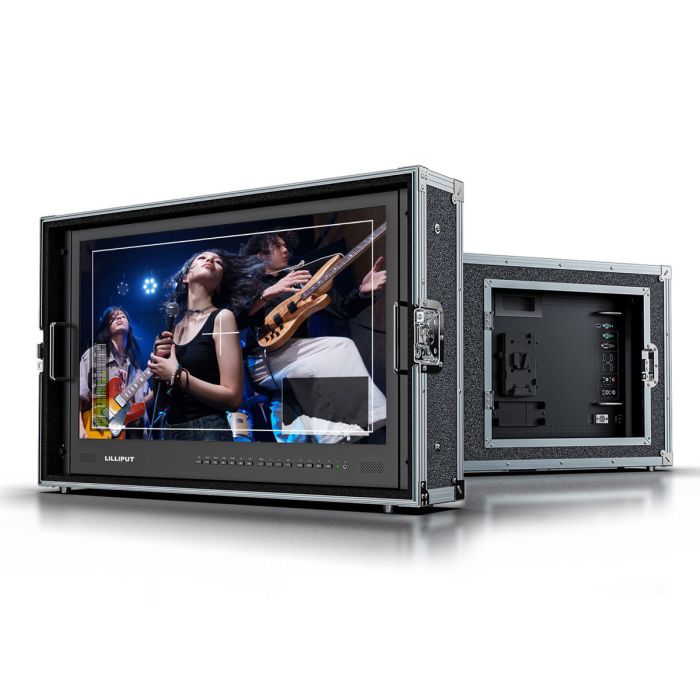

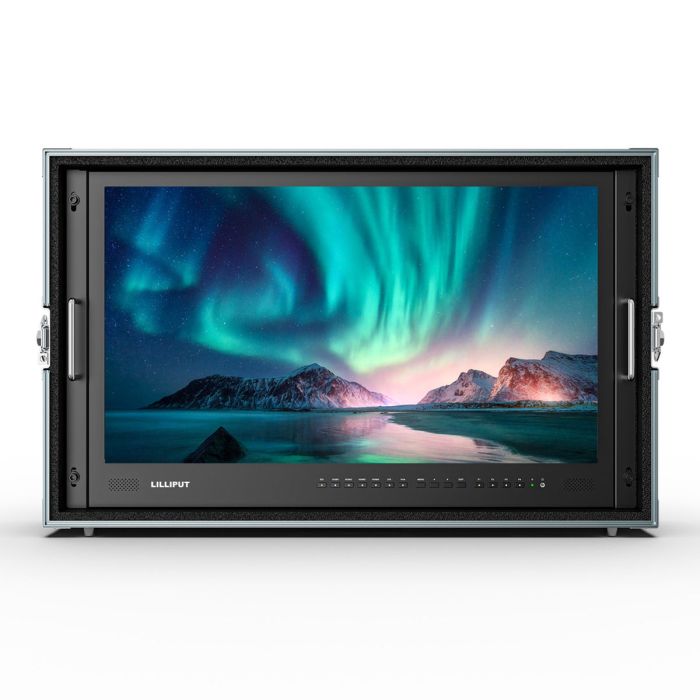

Lilliput BM281-4KS 28" 4K Carry-On Broadcast Monitor
28 inch HDMI/3G-SDI Flight-Case and Rack-Mountable Monitor with 4K panel, Quad-View and Tally
MPN: BM281-4KS SKU: BM281-4KS
The BM281-4KS is a broadcast director monitor designed for use with FHD, 4K, and 8K cameras, switchers, and other signal transmission devices. It features a 3840 × 2160 Ultra HD native resolution, delivering excellent image clarity and accurate colour reproduction.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days

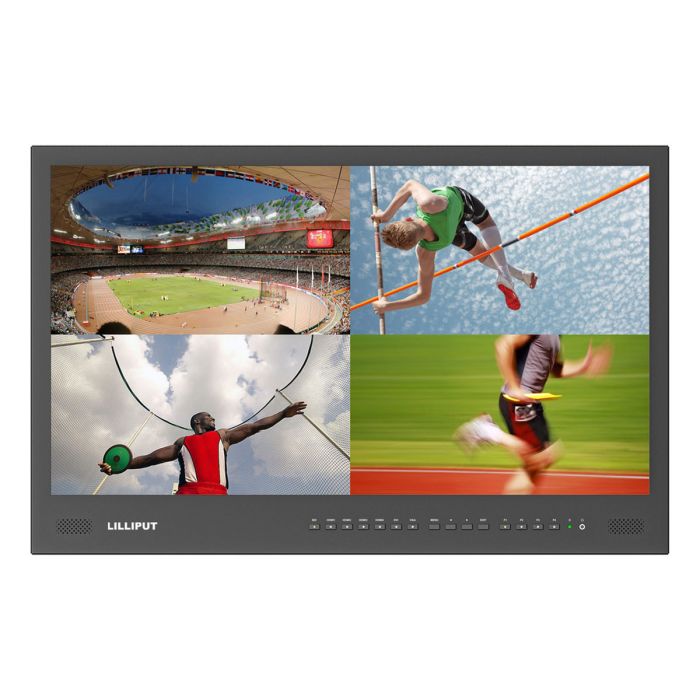

The BM281-4KS is a broadcast director monitor designed for use with FHD, 4K, and 8K cameras, switchers, and other signal transmission devices. It features a 3840 × 2160 Ultra HD native resolution, delivering excellent image clarity and accurate colour reproduction. The monitor supports 3G-SDI and four 4K HDMI inputs, with the ability to display multiple signals simultaneously in quad-view. This makes it an efficient solution for multi-camera monitoring applications
The BM281-4KS is designed for flexible deployment, supporting both stand-alone and portable use. It’s ideal for studios, film production, live events, and microfilm applications
- Supports 4K HDMI signal
- 3D-LUT
- HDR
- 3G-SDI
- Easy to use
Display
- Panel: 28″
- Resolution: 3840*2160
- Aspect Ratio: 16:9
- Brightness: 300 cd/m²
- Contrast: 1000: 1
- Viewing Angle: 178°/178°（H/V)
- HDR: HDR 10 （under HDMI model）
- Supported Log formats: Sony SLog / SLog2 / SLog3…
- Look up table (LUT) support: 3D LUT (.cube format)
- Technology: Calibration to Rec.709 with optional calibration unit
Video Input
- SDI: 1x 3G
- HDMI: 1×HDMI 2.0, 3xHDMI 1.4
- DVI: 1
- VGA: 1
Video Loop Output
- SDI: 1×3G
Supported In/Out Formats
- SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
- HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio)
- SDI: 12ch 48kHz 24-bit
- HDMI: 2ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 2
Power
- Operating power ≤51W
- DC In DC 12-24V
- Compatible batteries V-Lock or Anton Bauer Mount
- Input voltage (battery) 14.4V nominal
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
Other
- Dimension(LWD): 663×425×43.8mm / 761×474×173mm (with case)
- Weight: 9kg / 21kg (with case)
