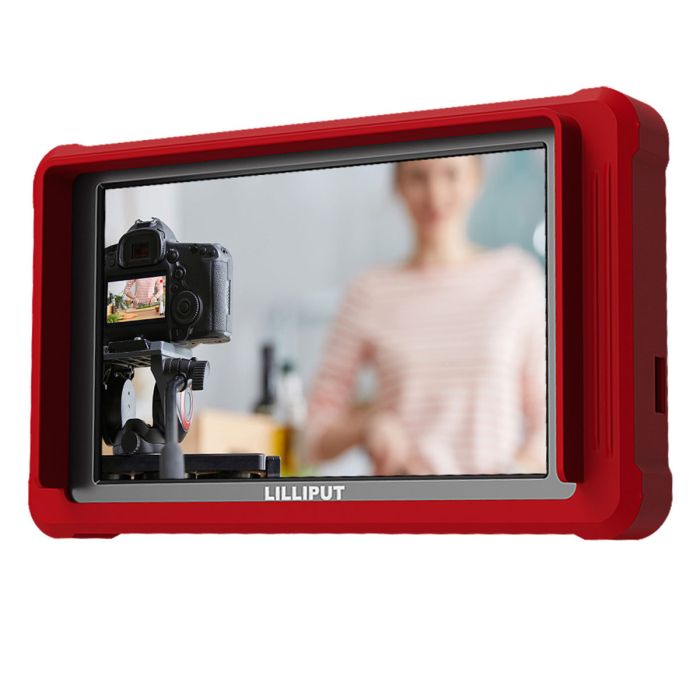

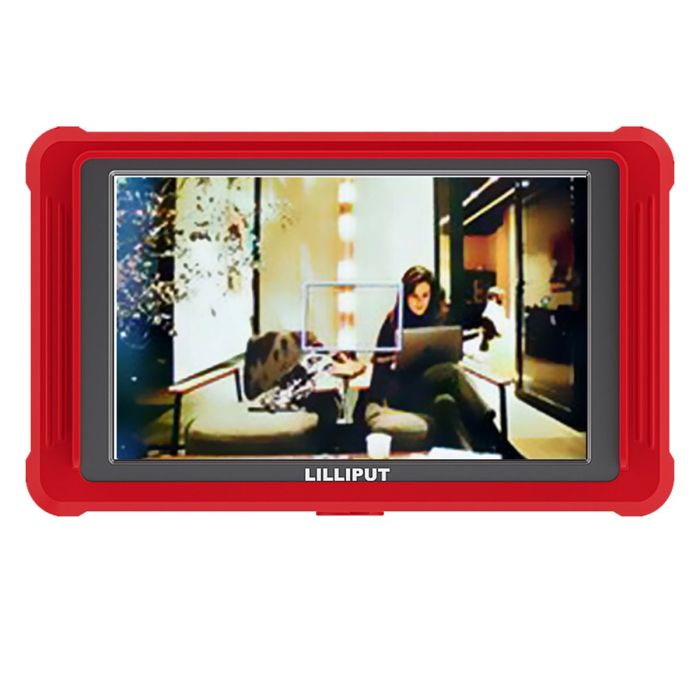

Lilliput FS5 5-Inch On-Camera Monitor

The FS5 is a professional on-camera monitor that is compatible with FHD/4K camcorders and DSLR cameras. It features a 5.4-inch, 1920x1200 Full HD native resolution screen, delivering excellent picture quality and accurate color reproduction. The SDI ports support 3G-SDI signal input and loop output, while the HDMI ports support up to 4K signal input and loop output. The aluminum housing, combined with a silicone case, enhances the monitor's durability. Additionally, it boasts an impressive 88% DCI-P3 color gamut, providing an outstanding viewing experience.

Excellent Display
The 5.4" 16:10 LTPS panel with 1920×1200 full HD resolution, 1100:1 high contrast, 160° wide viewing angles, 600cd/m² high brightness, 88% DCI-P3 color space, which offers an outstanding viewing experience.

Color Space
Color space affects the richness of a picture’s color. The better the color space, the better the color reproduction.

• DCI-P3
• Rec. 709

HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Supports ST 2084 300 / 1000 / 10000 and HLG.

3D-LUT
3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles.  Built-in 3D-LUT, featuring 17 default luts and 6 user luts.

3G-SDI INPUT / OUTPUT
SDI supports up to 1920×1080 60p/50p/30p/25p/24p (3G-SDI signal) and is downward compatible with HD-SDI and SD-SDI.

Signal Flow:

Camcorder → Input → On-Camera Monitor → Output →  Display Device

3G-SDI signal can loop output to another monitor or device when 3G-SDI signal is input to this model.

4K 60Hz HDMI 2.0
HDMI 2.0 supports up to 4096×2160 60p/50p/30p/25p/24p and 3840×2160 60p/50p/30p/25p/24p.

Signal Flow:

Camera → Input → On-Camera Monitor → Output → Display Device

Some commercially available DSLR cameras (GH-5, R5, etc.) have been upgraded to HDMI 4K 60Hz video output, making this monitor compatible with the best output video formats of DSLR cameras on the market.

Camera Auxiliary Functions
Provides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color, and an audio level meter.

Features:

• Time Code
• 3D-LUT
• HDR
• Gamma
• Pixel Zoom
• Vector Scope
• Waveform
• Level Meter
• Peaking
• False Color
• Histogram
• Exposure
• Check Field
• Color Bar
• Freeze
• Pixel to Pixel
