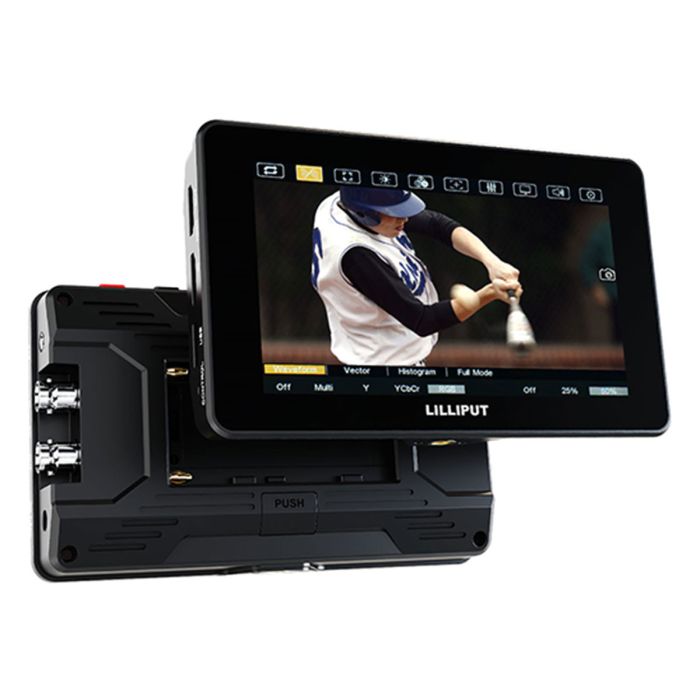

Lilliput HT5S 5-Inch High Brightness Monitor

The HT5S is a high-precision on-camera monitor featuring an impressive 2000-nit ultra-high brightness touchscreen LCD. It offers seamless control of the video camera menu on set, making it an ideal choice for photographers and filmmakers, especially for outdoor video and film production.

5.5" 2000 NITS ULTRA-BRIGHT TOUCH CAMERA CONTROL MONITOR
Precision on-camera monitor with ultra-high brightness and touch screen, which is capable of controlling video camera menu on set.

• 2000 Nits
• 1920×1080
• Touch Screen
• Camera Control
• 3G-SDI / HDMI2.0

2000 NITS AUTO DIMMING
5.5” 1920×1080 physical resolution, with 2000 nits ultra-high brightness for outdoor sunlight readability.

• Color Calibration - Color calibration supports the PRO/LTE version of ColourSpace CMS provided by Light Illusion.
• HDR - Making lighter and darker details more clearly visible. Supports ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.
• 3D LUT - Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

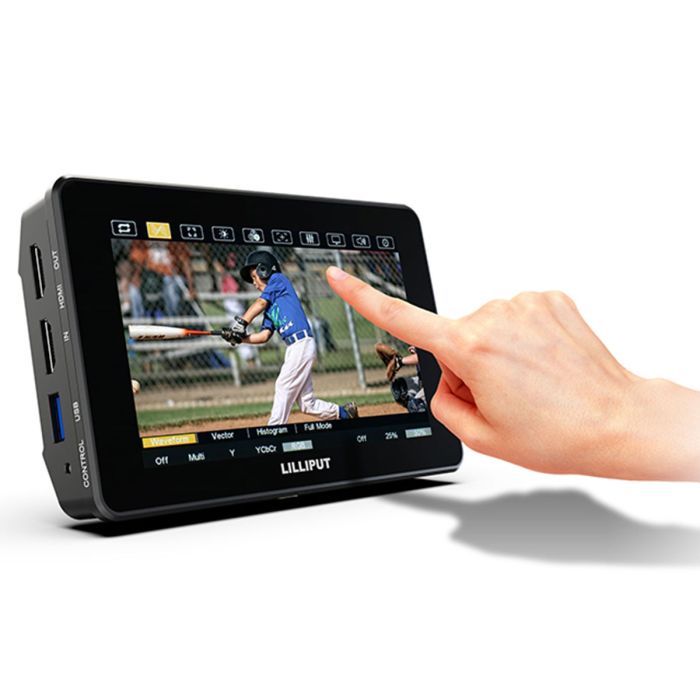

TOUCH CONTROL - EASY TO USE
Easy and convenient touch commands to quickly wake up the menu on screen, then adjust camera assist functions, display, and settings.

Touch Functions:

• FUNCTIONS
• VOLUME
• BACK LIGHT
• DISPLAY
• ZOOM IN
• ZOOM POSITION

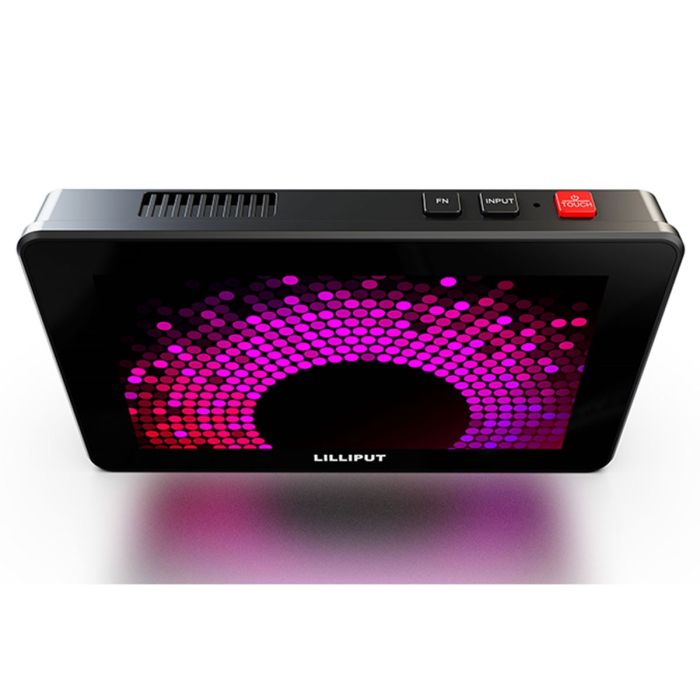

Note: Touch function can be switched off by POWER button.

CONTROL CAMERA BY LANC CABLE
The LANC cable enables the monitor to be interfaced with the Sony video camera for the purpose of controlling some camera functions.

HOW TO CONTROL?

ACTIONS FEEDBACK - Users can control the camera's functions and menus directly on the monitor.

UI FOR CAMERA CONTROL - Tap the “camera” icon on the right of the menu to access the UI of camera control.

FOCUS: Controlling the focus of the video camera.

ZOOM: Controlling the zoom in and out of the video camera lens.

IRIS: Controlling the aperture size of the video camera lens.

MENU CONTROL: Controlling the menu of the video camera.

Note: Some cameras do not support all control functions.

CAMERA ASSIST FUNCTIONS

• WAVEFORM
• HISTOGRAM
• FALSE COLOR
• ANAMORPHIC DE-SQUEEZE (1.33X, 1.5X, 1.8X, 2X)
• PEAKING FOCUS
• EXPOSURE
• Vector Scope
• Waveform
• 3D-LUT
• HDR
• Pixel Zoom
• Level Meter
• Peaking
• False Color
• Histogram
• H/V Delay
• Exposure
• Check Field
• Image Flip
• De-Squeeze
• Marker
• Freeze
• Timecode

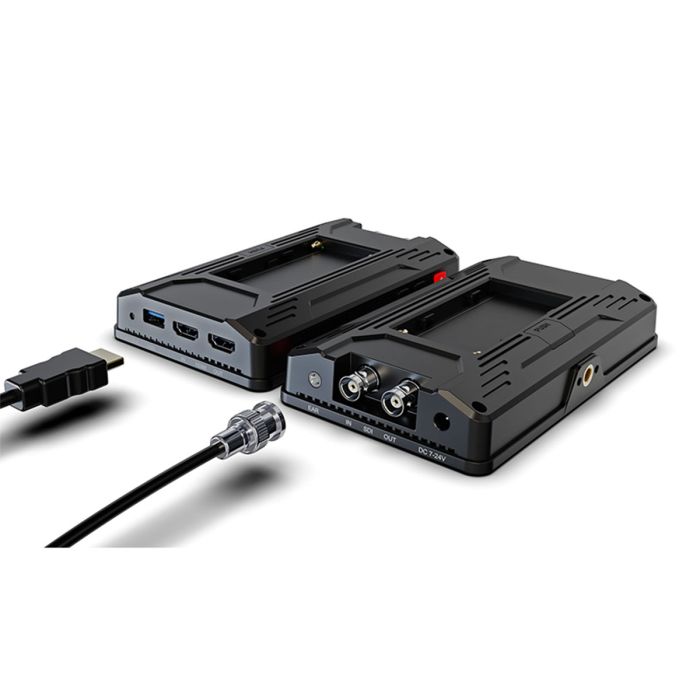

HDMI 2.0 UP TO 2160P 60HZ
Equipped with HDMI 2.0 input and loop output interfaces, which support up to 2160p 60Hz video signal.

3G-SDI UP TO 1080P 60HZ
Equipped with 3G-SDI input and loop output interfaces, which support up to 1080p 60Hz video signal.
