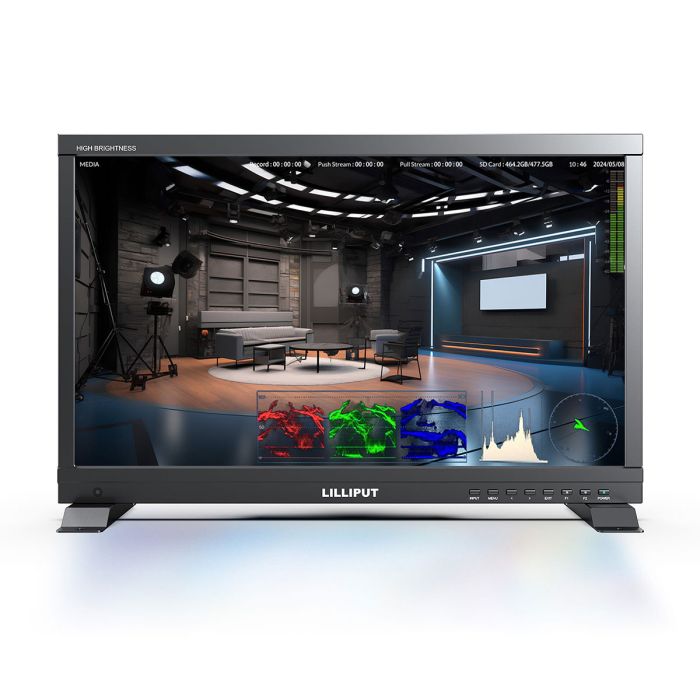

Lilliput PVM220S-E 21.5 Inch Live Stream Recording Monitor
21.5 inch HDMI/SDI preview video monitor with Daisy-Chain, HDR, 3D-LUT, Video Recording
MPN: PVM220S-E SKU: PVM220S-E
The LILLIPUT PVM220S-E is a professional high-brightness monitor designed for live streaming and recording. It is packed with features tailored for photographers, videographers, and directors. The monitor supports multiple inputs, including 3G SDI and HDMI 2.0, ensuring high-quality live stream monitoring. Additionally, it can record HDMI or SDI video signals and save them to an SD card, with support for up to 1080p signal format.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The LILLIPUT PVM220S-E is a professional high-brightness monitor designed for live streaming and recording. It is packed with features tailored for photographers, videographers, and directors. The monitor supports multiple inputs, including 3G SDI and HDMI 2.0, ensuring high-quality live stream monitoring. Additionally, it can record HDMI or SDI video signals and save them to an SD card, with support for up to 1080p signal format.
- 21.5 inch 1920 x 1080 lcd panel
- 1000 nits max brightness
- 3G-SDI
- HDMI 2.0
- 1000M LAN(Optional PoE)
- Storage: Up to 512GB SD Card Support
- Video Record
- Live Stream Push/Pull
- 3D-LUT
- HDR
- Gammas
- Waveform
- Vectorscope
- False Color
Display
- Panel: 21.5″
- Physical Resolution: 1920*1080
- Aspect Ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000: 1
- Viewing Angle: 178°/178°（H/V)
- HDR: ST2084 300/1000/10000/HLG
- Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
- Look up Table(LUT)support: 3D LUT (.cube format)
- Technology: Calibration to Rec.709 with optional callibration unit

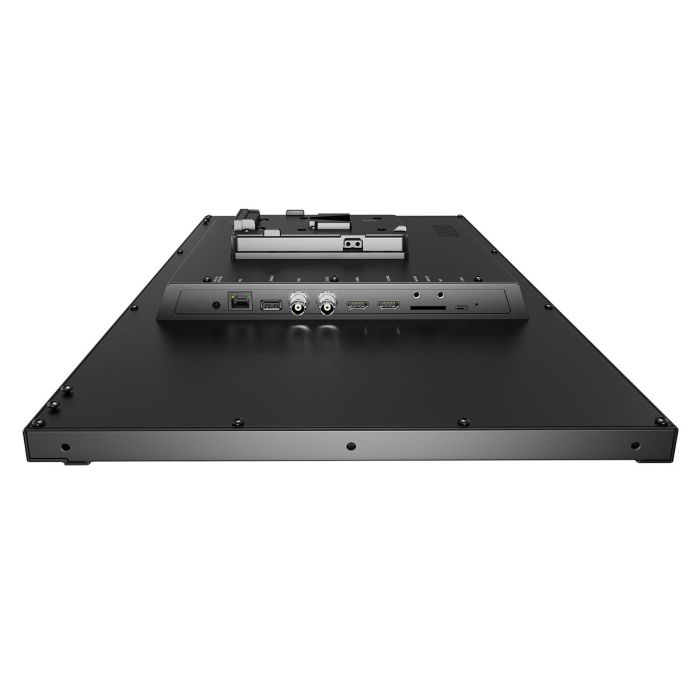

Video Input
- SDI: 1×3G (Supported 8K-SDI Formats Quad Link)
- HDMI: 1×HDMI 2.0
Video Loop Output
- SDI: 1×3G
- HDMI: 1×HDMI 2.0
- LAN 1×1000M, PoE is optional
Supported Formats
- SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
- HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
- IP: Push/Pull Streaming: YCbCr 4:2:2 video code (support up to 32Mbps@1080p60)
- Streaming Formats: Push Streaming: SRT, RTMP.Pull Streaming: RTMP, RTSP, HTTP, HTTPS, NDI|HX(Optional)
Recording
- Video Resolution 1920×1080 / 1280×720 / 720×480
- Frame Rates 60 / 50 / 30 / 25 / 24
- Audio SR 44.1kHz / 48kHz
- Storage SD card, support 512GB
- Split Rec File 1min / 5 mins / 10 mins / 20 mins / 30 mins / 60mins
Audio In/Out (48kHz PCM AUDIO)
- SDI: 2ch 48kHz 24-bit
- HDMI: 8ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 1
Power
- Input Voltage DC 9-24V
- Power Consumption ≤53W (DC 15V / Optional PoE PD function, supports IEEE802.3 bt protocol)

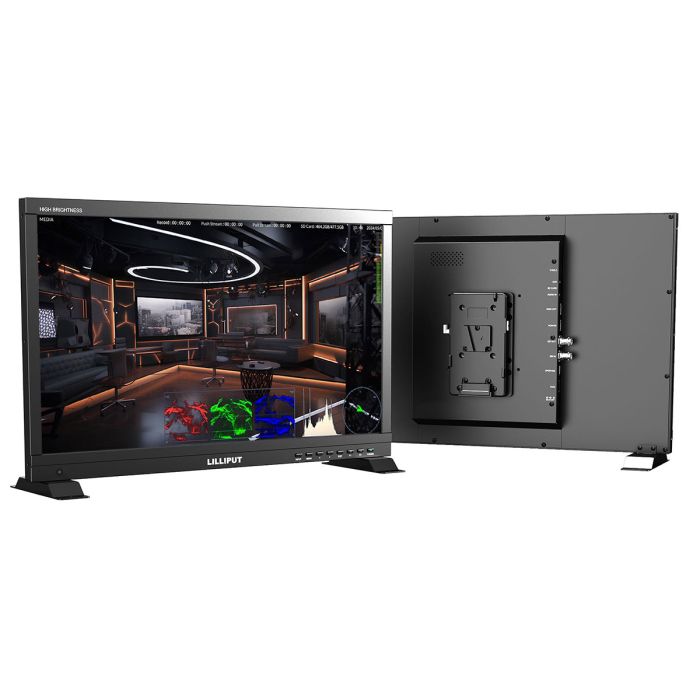

- Compatible Batteries V-Lock or Anton Bauer Mount (Optional)
- Input Voltage(battery) 14.8V nominal
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
Other
- Dimension(LWD): 508mm × 321mm × 47mm
- Weight: 4.75kg
