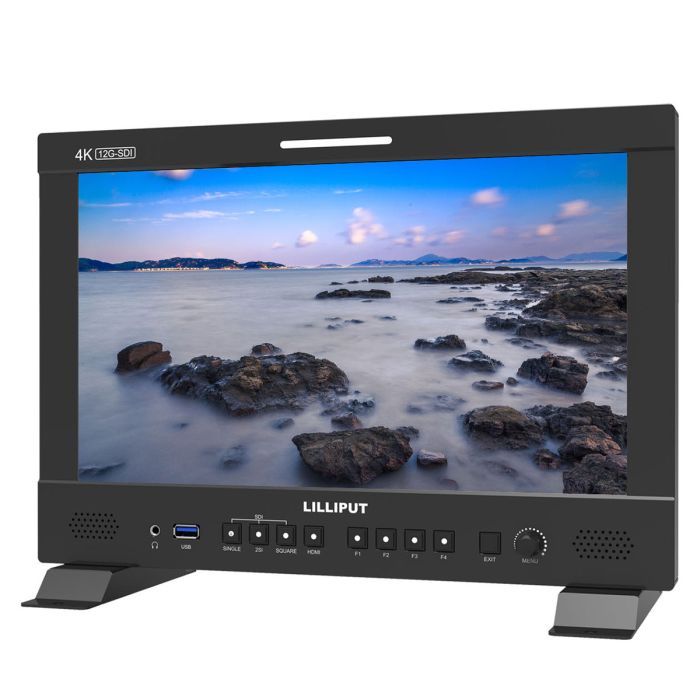

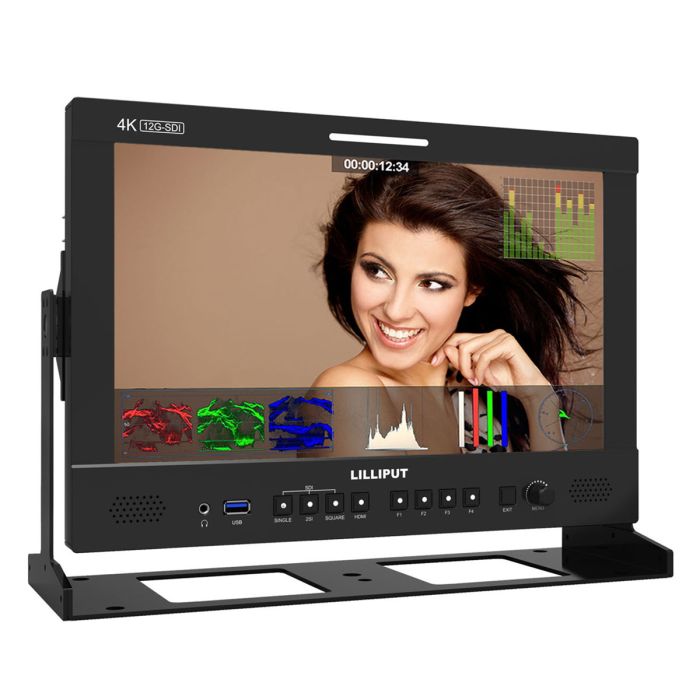

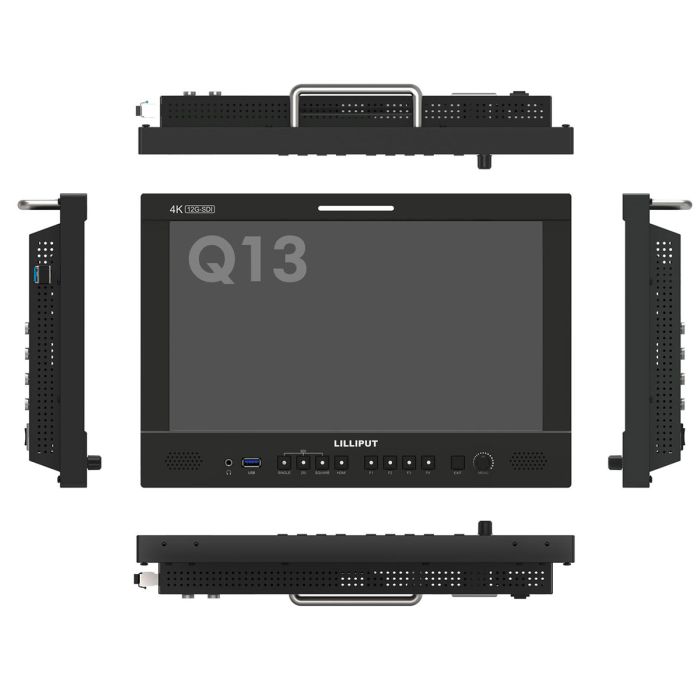

Lilliput Q13-8K 13.3 Inch 12G-SDI Broadcast Monitor

The Lilliput Q13 is a professional studio monitor designed with features tailored for photographers, videographers, and cinematographers. It supports a wide range of input options, including 12G SDI and 12G-SFP Fiber Optic input connections for broadcast-quality monitoring. Additionally, it includes Audio Vectoring, which uses a Lissajous graph shape to visualize the depth and balance of stereo recordings. The monitor also allows you to connect your computer to control settings via dedicated applications, offering enhanced flexibility for professional use.

13.3" Studio/Broadcast Monitor

The Lilliput Q13 is a studio/broadcast monitor designed for professional camcorder and camera applications in video production and filmmaking. It provides high-quality monitoring for both video production and movie-making, ensuring accurate visuals for professional-grade content creation.

12G-SDI / 4K HDMI Signal

• 12G-SDI, 4K HDMI, and 12G-SFP+ signal transmission methods are integrated into the display, eliminating concerns about signal compatibility.

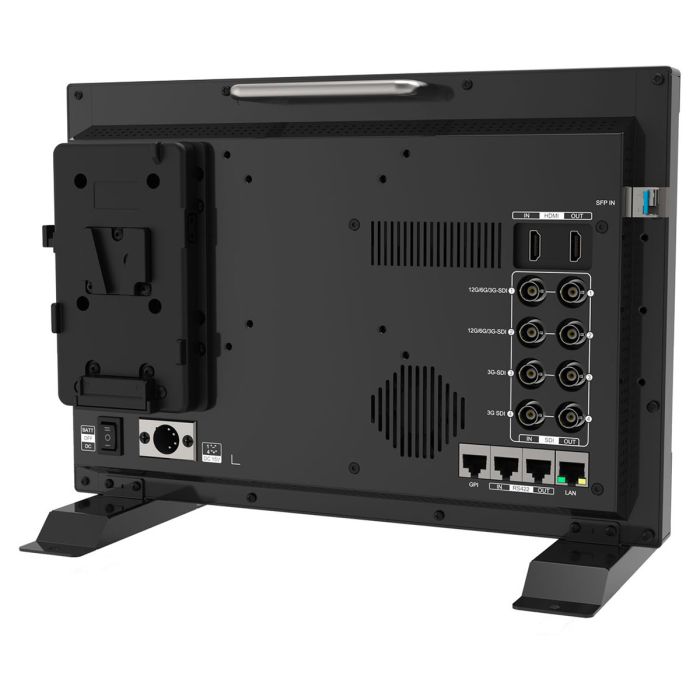

• Equipped with 12G-SDI, 3G-SDI, and HDMI 2.0 input/output interfaces, it supports 4096x2160 (60p, 50p, 30p, 25p & 24p) and 3840x2160 (60p, 50p, 30p, 25p, 24p) resolutions.
• The 12G-SFP+ interface allows transmission of 12G-SDI signals via the SFP Optical module, making it ideal for most broadcast environments.

Accurate Color Calibration
The monitor features a specific calibration to accurately reproduce the colors of the image color space. It supports color calibration with the Pro/LTE version of the ColorSpace CMS by Light Illusion, ensuring precise and professional-level color accuracy for various production needs.

• Color Temperatue - Filmmakers often have their own preferences for different color temperatures based on the mood and feel of the scene. The monitor offers five default color temperature settings: 3200K, 5500K, 6500K, 7500K, and 9300K, which can also be customized to suit the user’s specific needs.
• Gammas - Gamma redistributes tonal levels to better match how our eyes perceive them. By adjusting the gamma value from 1.8 to 2.8, more bits are allocated to describe dark tones, where the camera is relatively less sensitive, resulting in improved detail and contrast in shadowed areas.

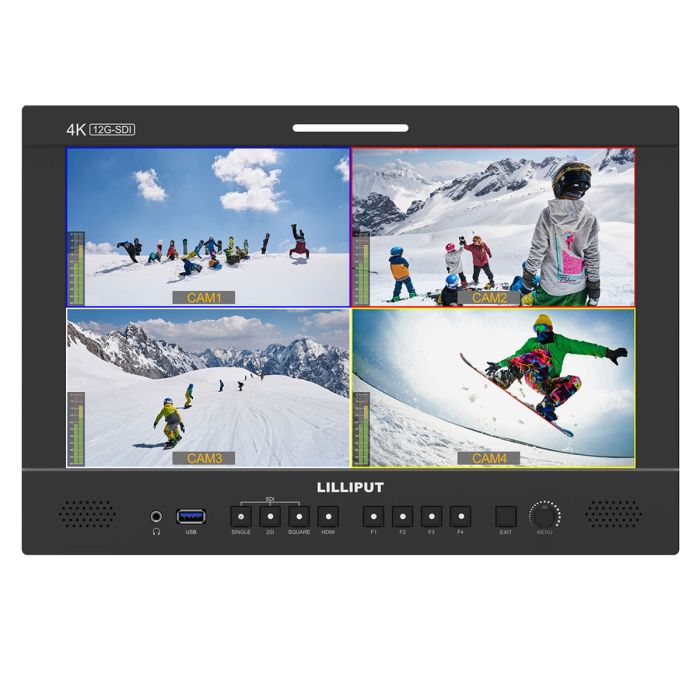

Quad-Split Multiview
In quad-split multiview mode, any input signals can be selected and switched between 12G-SDI, 3G-SDI, HDMI 2.0, and 12G-SFP+. Additionally, images can be differentiated with colorful borders, enhancing the monitoring experience and making it easier to distinguish between multiple signals.
