Lilliput Q15-8K 12G-SDI 15.6 Inch Production Monitor
15.6 inch HDMI/12G-SDI production broadcast monitor with 4K panel, 3D-LUT, Remote Control, Quad-View and Tally
SKU: Q15-8K

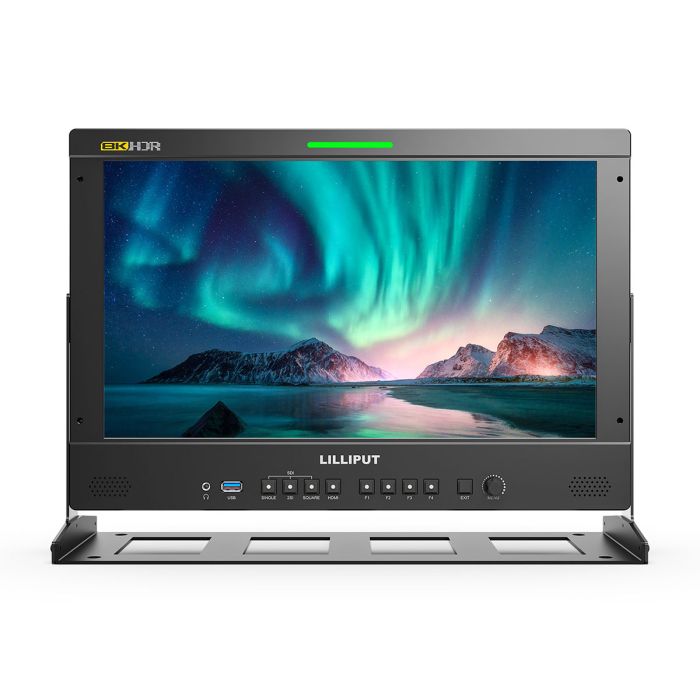

The Lilliput Q15-8K is a 15.6” professional monitor with 8K resolution, designed for video production, post-production, and color-critical workflows. It supports accurate color calibration via ColourSpace CMS (PRO/LTE) and includes built-in tools such as waveform, vectorscope, histogram, and false color overlays. Multiple input options (HDMI, SDI, DisplayPort) make it compatible with a wide range of video sources, and its compact, durable design is suitable for both studio and on-location use.
Ask our team about our Price Match Pledge.
Get in touchIn stock
Usually ships in 2-3 Days
The Lilliput Q15-8K is a professional-grade 15.6” monitor designed for video production, post-production, and color-critical workflows. Its ultra-high 8K resolution ensures every detail is visible, making it suitable for color grading, digital imaging, and on-set monitoring. The monitor is compact and portable, allowing use both in studios and on location without compromising performance.
One of the key features of the Q15-8K is its support for accurate color calibration through ColourSpace CMS (PRO and LTE versions). This ensures colors are reproduced faithfully according to the original image or video source, providing a reliable reference for professional workflows. The monitor also includes built-in monitoring tools such as waveform, vectorscope, histogram, and false color overlays, enabling precise evaluation of exposure, color balance, and signal quality.
The Q15-8K offers versatile connectivity options, supporting HDMI, SDI, and DisplayPort inputs. Its robust design combines portability with durability, making it suitable for a variety of professional environments.
8K Ultra HD Resolution
The Lilliput Q15-8K provides a resolution of 7680×4320 pixels, delivering exceptional detail and clarity. This makes it suitable for reviewing high-resolution footage and performing detailed color grading or image analysis.
Accurate Color Calibration
The monitor supports precise color calibration using ColourSpace CMS (PRO and LTE versions). This ensures that colors are represented accurately and consistently, which is essential for post-production, grading, and any color-critical work.

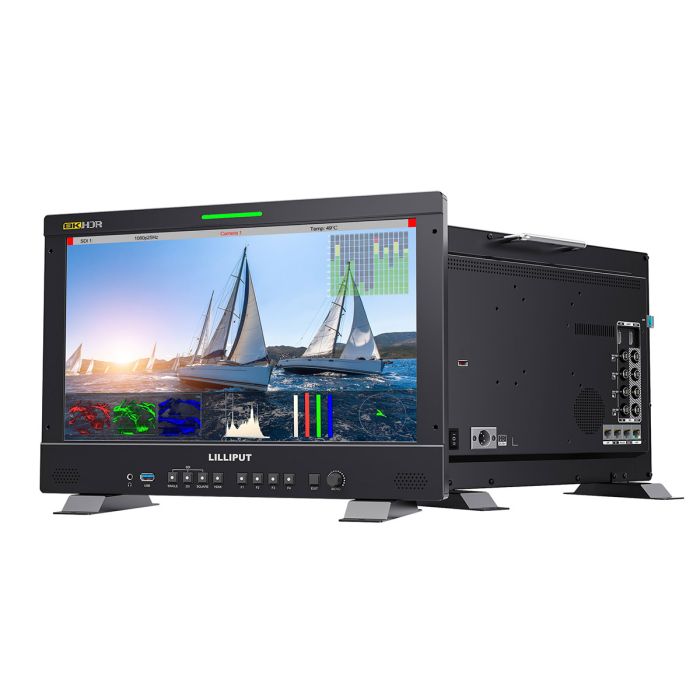

Professional Monitoring Tools
The Q15-8K includes waveform, vectorscope, histogram, and false color overlays. These tools allow users to evaluate exposure, color balance, and signal levels directly on the monitor, reducing the need for external analysis tools.
Versatile Connectivity
The monitor offers multiple input options, including HDMI, SDI, and DisplayPort. This flexibility allows it to be integrated into a wide range of video workflows, from camera monitoring to post-production review.

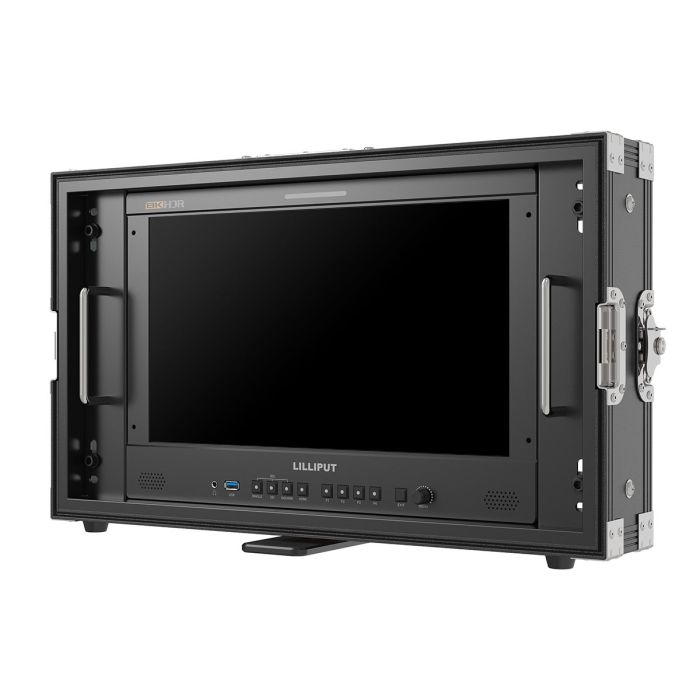

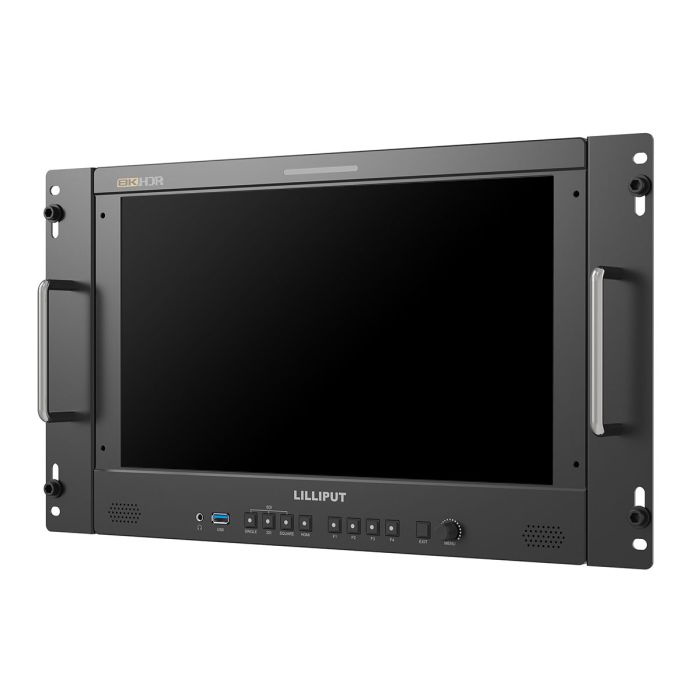

Portable and Durable Design
Despite its high-resolution capabilities, the Q15-8K is compact and lightweight. Its robust construction ensures it can withstand regular use in both studio and on-location environments without sacrificing performance.
Display
- Panel: 15.6"
- Physical Resolution: 3840 × 2160
- Aspect Ratio: 16:9
- Brightness: 600 cd/m²
- Contrast: 1700:1
- Viewing Angle: 170° / 170° (H/V)
- HDR: ST2084 300 / 1000 / 10000 / HLG
- Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog / User-defined
- Look Up Table (LUT) Support: 3D LUT (cube format)
- Calibration: Calibration to Rec. 709 with optional calibration unit

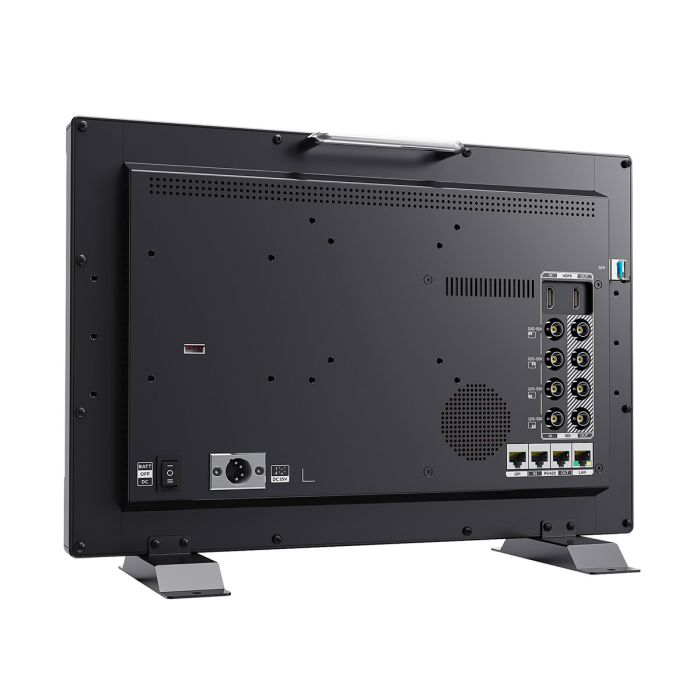

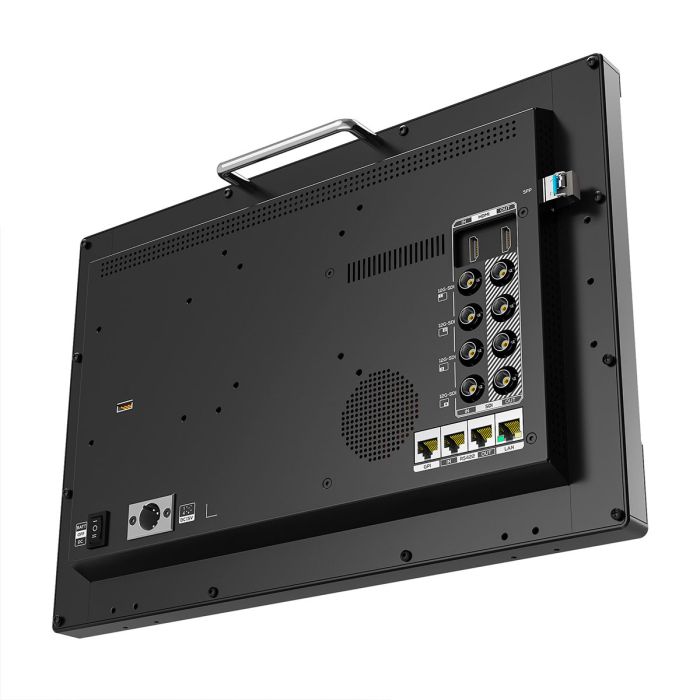

Video Input
- SDI: 4 × 12G (supports 8K-SDI formats Quad Link)
- SFP: 1 × 12G SFP+ (optional fiber module)
- HDMI: 1 × HDMI 2.0
Video Loop Output
- SDI: 4 × 12G (supports 8K-SDI formats Quad Link)
- HDMI: 1 × HDMI 2.0
Supported Formats
- SDI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60
- SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Audio In/Out (48 kHz PCM Audio)
- SDI: 16 channels, 48 kHz, 24-bit
- HDMI: 8 channels, , 24-bit
- Ear Jack: 3.5 mm
- Built-in Speakers: 2
Remote Control
- RS422: Input / Output
- GPI: 1
- LAN: 1
Power
- Input Voltage: DC 12–24V
- Power Consumption: ≤37W (at 15V)
- Compatible Batteries: V-Lock or Anton Bauer Mount
- Input Voltage (Battery): 14.8V nominal
Environment
- Operating Temperature: 0°C ~ 50°C
- Storage Temperature: -20°C ~ 60°C
Other
- Dimensions (L × W × D): 393 × 267 × 41.4 mm
- Weight: 2.9 kg
