Lilliput Q18-8K 17.3 Inch 8K 12G-SDI Production Monitor
17.3" 8K 12G-SDI Production Monitor
SKU: Q18-8K

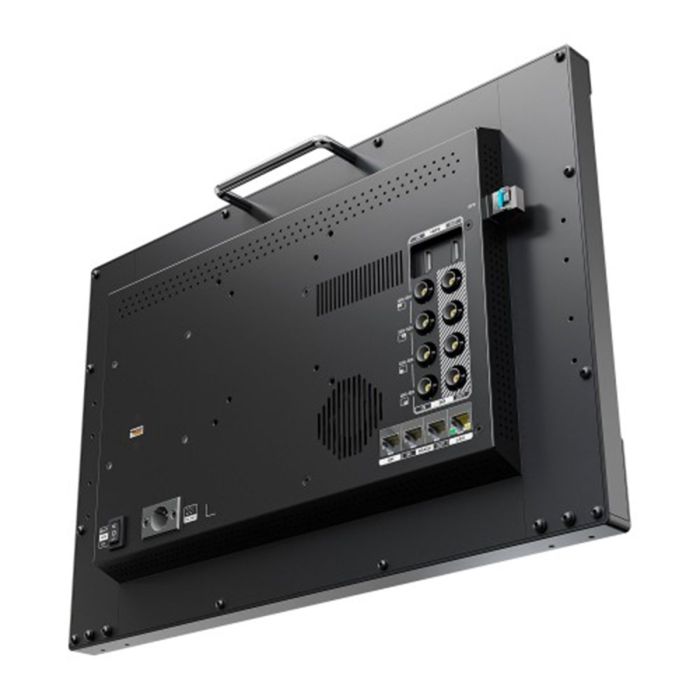

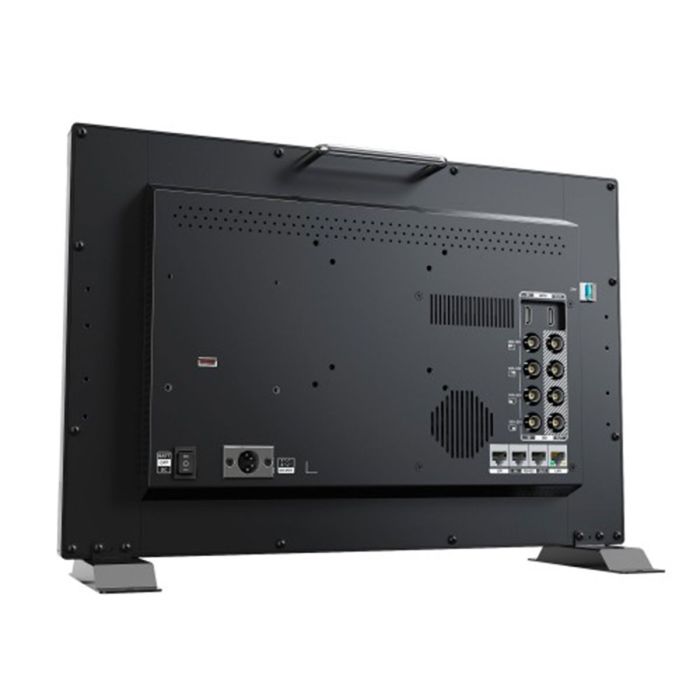

The Lilliput Q18-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Lilliput Q18-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.
With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.
Display
- Aspect Ratio: 16:9
- Brightness: 400cdm²
- Colour Space: REC .709 and DCI-P (90%)
- Contrast Ratio: 1200 : 1
- Resolution: 3840 x 2160
- Viewing Angle: 170° / 170°
- HDR: ST2084 300/1000/10000/HLG
- LUT Support: 3D LUT (.cube format)
- Screen Size: 17.3"
- Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use
Supported Formats
- HDMI Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
- SDI Formats Supported: 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
- SFP Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
Monitor Specification
- Video Inputs: SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input
- Video Outputs: SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output
Size
- Dimensions: 433.9 x 294.2 x 45.7 mm
Power
- Input Voltage: DC 12V - 24V
- Power Consumption: <= 40W (15V)
Environment
- Operating Temperature: 0°C - 50°C
- Storage Temperature: -20°C to 60°C
