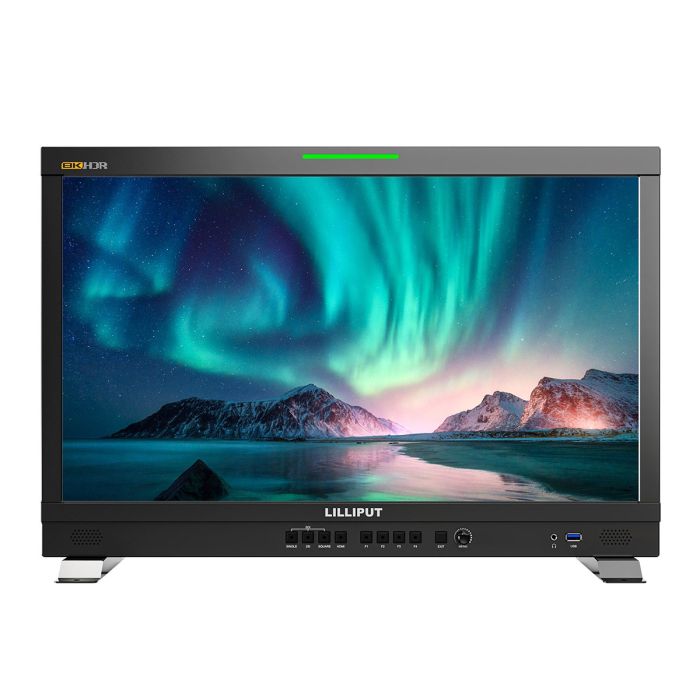

Lilliput Q23-8K 23.8 Inch 8K 12G-SDI Broadcast Production Studio Monitor
23.8 inch HDMI/12G-SDI production broadcast monitor with 4K panel, 3D-LUT, Remote Control, Quad-View and Tally
SKU: Q23-8K
Lilliput Q23-8K is a professional studio production monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
LILLIPUT Q23-8K is a professional studio production monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring. It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.
LAN/ RS422
Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the
monitor before control.
Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+. Images can be differentiated with colourful borders. When the quad split multiview function is turned on, there are four buttons that will turn into signal switching function, and each button corresponds to one image respectively. The photographer can quickly switch between different input signals through these four buttons.
Easy-to-use
F1~F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial to select and
adjust the value among of sharpness, saturation, tint and volume, etc.
- Quad View
- 3D-LUT, HDR
- Support Up to 8K 60Hz Video: In addition to the different 4K 60Hz video signals provided by four single-link 12G-SDI, the monitor with four 12G-SDI
interfaces is also compliant with the ST2082-12 video protocol standard and can generate video signals up to 8K 60Hz. - Gammas
- Remote Control: Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can be used to control multiple monitors.

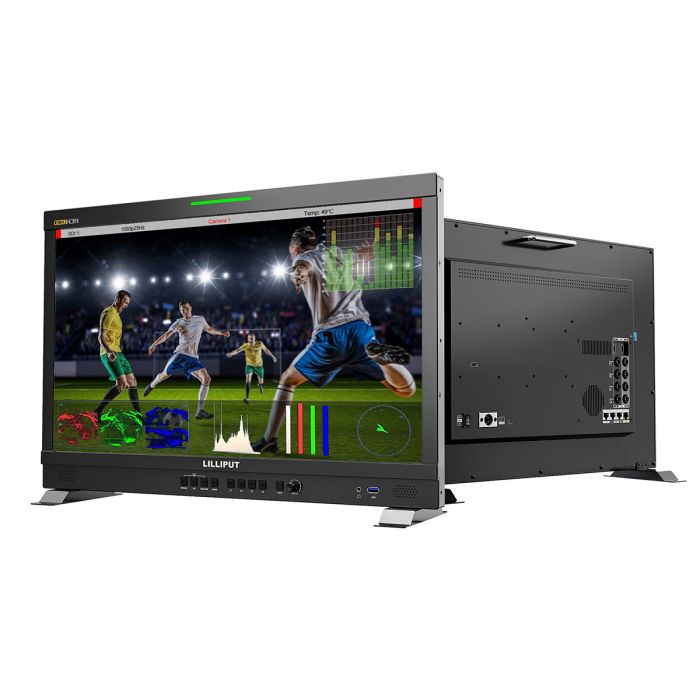

- Audio vector
- Accurate Colour Calibration: A specific calibration to reproduce the colours of the image colour space. Colour calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.
Display
- Panel: 23.8″ LCD
- Physical Resolution: 3840*2160
- Aspect Ratio: 16:9
- Brightness: 300 cd/m²
- Contrast: 1000: 1
- Viewing Angle: 178°/178°（H/V)
- HDR: ST2084 300/1000/10000/HLG
- Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
- Look up Table(LUT)support: 3D LUT (.cube format)
- Technology: Calibration to Rec.709 with optional calibration unit

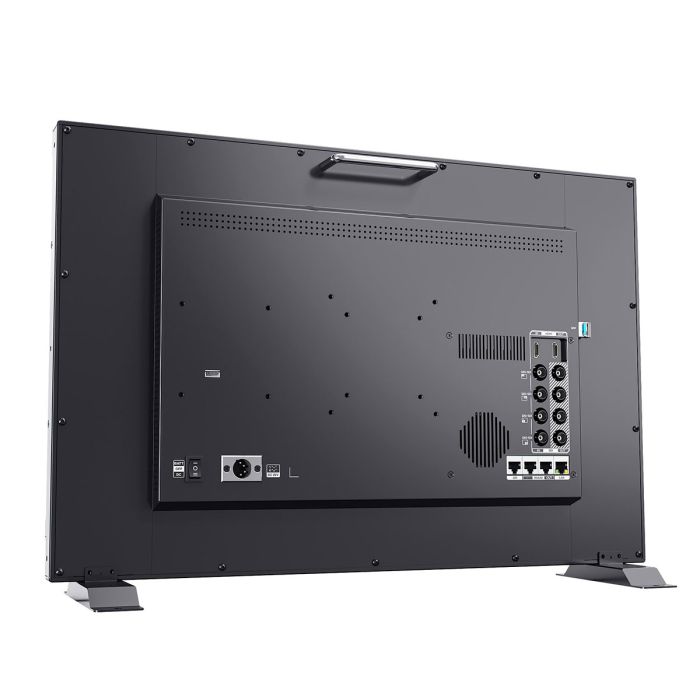

Video Input
- SDI: 4×12G (Supported 8K-SDI Formats Quad Link)
- SFP: 1×12G SFP+(Fiber module for optional)
- HDMI: 1×HDMI 2.0
Video Loop Output
- 4×12G (Supported 8K-SDI Formats Quad Link)1×3G SDI
- HDMI: 1×HDMI 2.0
Supported Formats
- SDI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
- SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
- HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
Audio In/Out (48kHz PCM AUDIO)
- SDI: 16ch 48kHz 24-bit
- HDMI: 8ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 2
Remote Control
- RS422: In/Out
- GPI: 1
- LAN: 1
Power
- Input Voltage DC 12-24V
- Power Consumption ≤60W (15V)
- Compatible Batteries: V-Lock or Anton Bauer Mount
- Input Voltage(battery): 14.8V nominal
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
Other
- Dimension(LWD): 567mm × 376.4mm × 45.7mm
- Weight: 7.4kg
