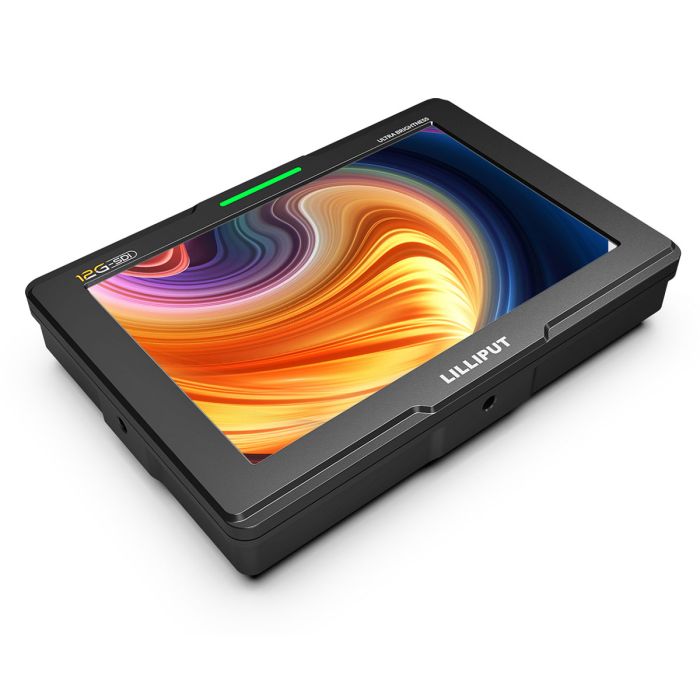

Lilliput Q7-12G 7-Inch 12G-SDI Ultra Bright On-Camera Monitor
7 inch HDMI/SDI On-Camera Field Monitor with HDR, 3D-LUT, Picture-in-Picture and Tally
SKU: Q7-12G
Q7-12G is a professional camera-top monitor came with an amazing 2000 nits Ultra Bright LCD screen, specifically for photography and film maker, ideally suited for outdoor video and film shooting. This 7 inch LCD monitor has 1920×1200 Full HD native resolution and 1200:1 high contast providing superior picture quality, and support 4K HDMI and 12G-SDI signal inputs and loop outputs.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Q7-12G is a professional camera-top monitor came with an amazing 2000 nits Ultra Bright LCD screen, specifically for photography and film maker, ideally suited for outdoor video and film shooting.
This 7 inch LCD monitor has 1920×1200 Full HD native resolution and 1200:1 high contast providing superior picture quality, and support 4K HDMI and 12G-SDI signal inputs and loop outputs.

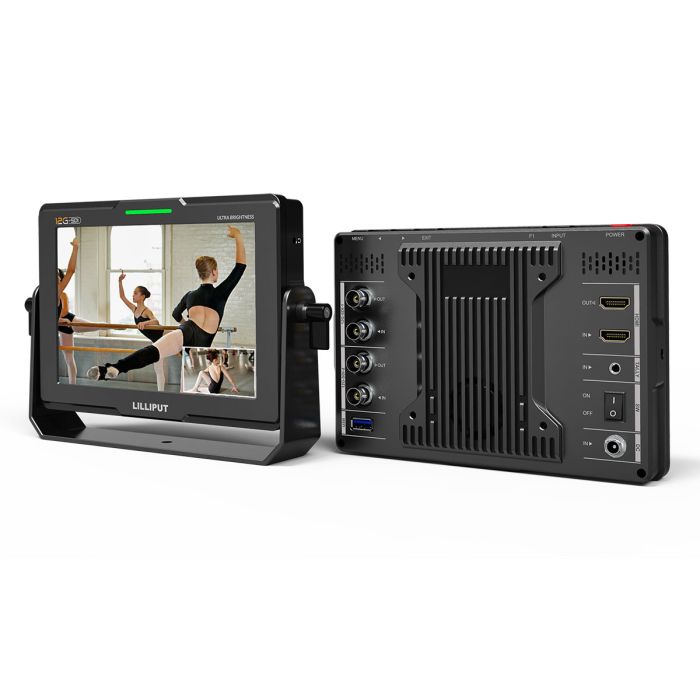

It is possible to receive 2× 12G-SDI signals and diaplay at the same time through the picture-in-picture function, the size and position of which can be adjusted.And HDMI signals up to 4K 60Hz which is compatible with the latest DSLR cameras on the market with an HDMI 2.0 interface.
- 7 inch LCD monitor
- 2000nits
- HDR 3D-LUT
- Delicate Milled
- 4K HDMI
- 12G-SDI
Display
- Panel: 7″ LCD
- Physical Resolution: 1920*1200
- Aspect Ratio: 16:10
- Brightness: 2000 nit
- Contrast: 1200: 1
- Viewing Angle: 170°/170°（H/V)
- HDR ST2084 300/1000/10000/HLG
- Supported Log formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
- Look up table (LUT) support 3D LUT (.cube format)
Signal Input
- SDI: 2×12G-SDI
- HDMI: 1×HDMI 2.0
- Tally: 1
Signal Loop Output
- SDI: 2×12G-SDI
- HDMI: 1×HDMI 2.0
- SDI: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,
Supported Formats
- HDMI: 1080i 60/50, 720p 60/50, 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50,
720p 60/50 - SDI: 16ch 48kHz 24-bit
Audio In/Out (48kHz PCM AUDIO)
- HDMI: 8ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 1
Power
- Input Voltage DC 7-24V
- Power Consumption ≤20W (12V)
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
Other
- Dimension(LWD): 186mm × 128mm × 32.5mm
- Weight: 785g
