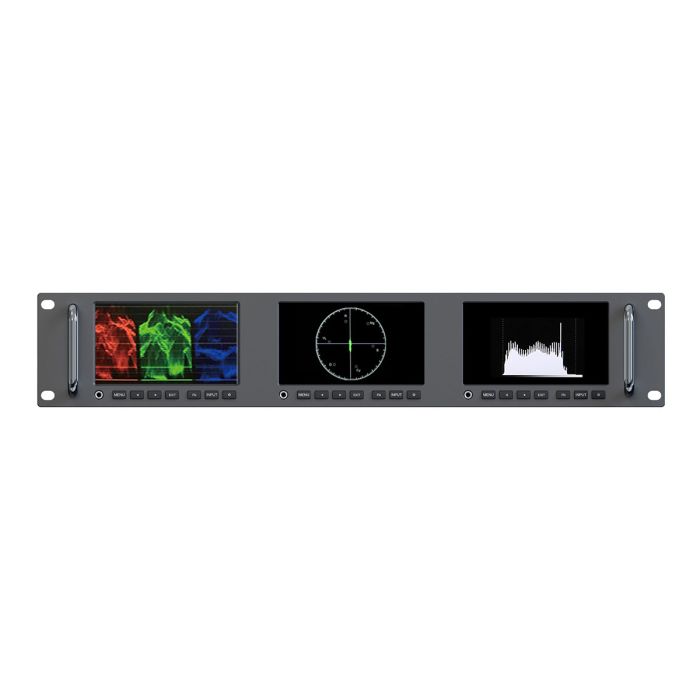

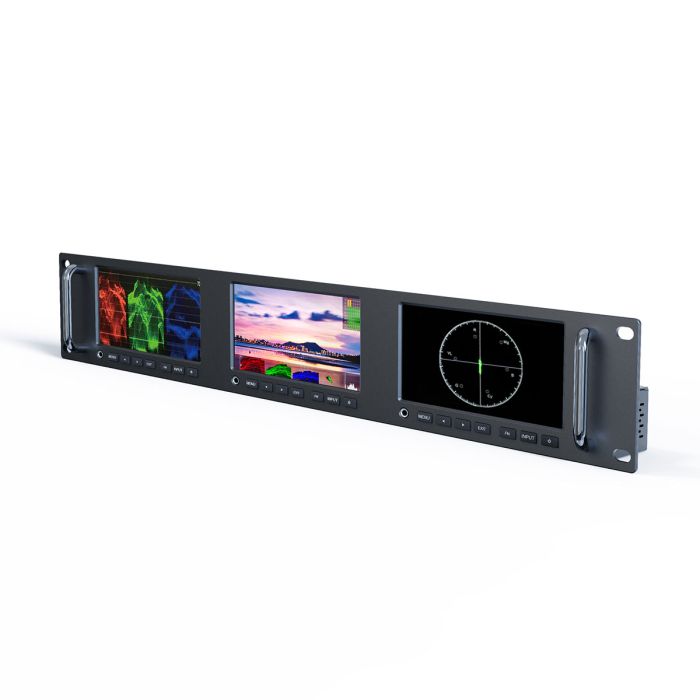

Lilliput RM-503S 5 Inch Full HD 2RU Rack Mount Monitor
3x 5 inch HDMI/SDI, 2U Rack-Mountable Monitor with Daisy-Chain, Remote Control
MPN: RM-503S SKU: RM-503S
A professional rackmount monitor for broadcast and live streaming, ideal for video walls and OB trucks. Featuring HDMI 2.0 and 3G-SDI I/O, HDR, 3D LUTs, waveform monitoring, wide colour gamut support, and advanced assist tools including false colour, timecode, and peaking
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
A rackmount monitor designed for broadcast and live streaming applications, ideal for use in video walls and broadcast trucks. It supports HDMI 2.0 and 3G-SDI input and output, along with advanced monitoring tools including multiple waveform modes, HDR, and 3D LUTs. The monitor offers a wide colour gamut with selectable standards such as Native, SMPTE-C, Rec.709, and EBU. Additional features include comparison mode, multiple colour temperature options, and essential assist tools like false colour, aspect markers, timecode display, colour bars, and focus peaking
- Rack mount
- Easy remote control
- 98% DCI-P3 Screen
- HDR
- 3D-LUT
Display
- Size: 3x5″
- Resolution: 1920×1080
- Aspect Ratio: 16:9
- Brightness: 450cd/m²
- Contrast: 1000:1
- Viewing Angle: 160°/160°(H/V)
- Color Space: 98% DCI-P3
- LUT Support: 3D-LUT (.cube format)
Video Input
- 3G-SDI: 3
- HDMI: 3 HDMI2.0(supports up to 4K 60Hz)
- LAN: 1
Video Loop Output
- 3G-SDI: 3
- HDMI: 3 HDMI2.0(supports up to 4K 60Hz)
Supported In/Out Formats
- SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
- HDMI: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50…
Audio In/Out (48kHz PCM Audio)
- Ear phone slot: 3
Power
- Operating power: 2.5A(12V)
- DC In: DC 12-24V
- Power Consumption: ≤27W
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
Other
- Dimension(LWD): 480×116×88mm
- Weight: 2.1kg
