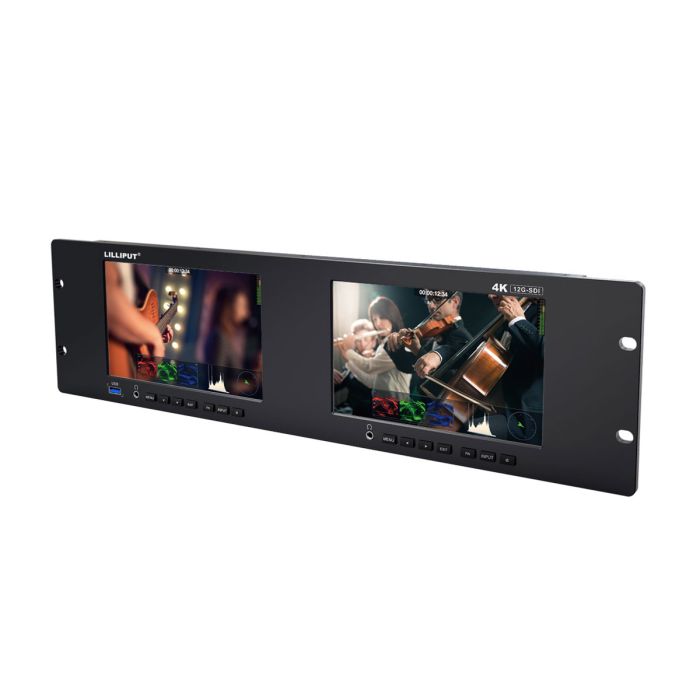

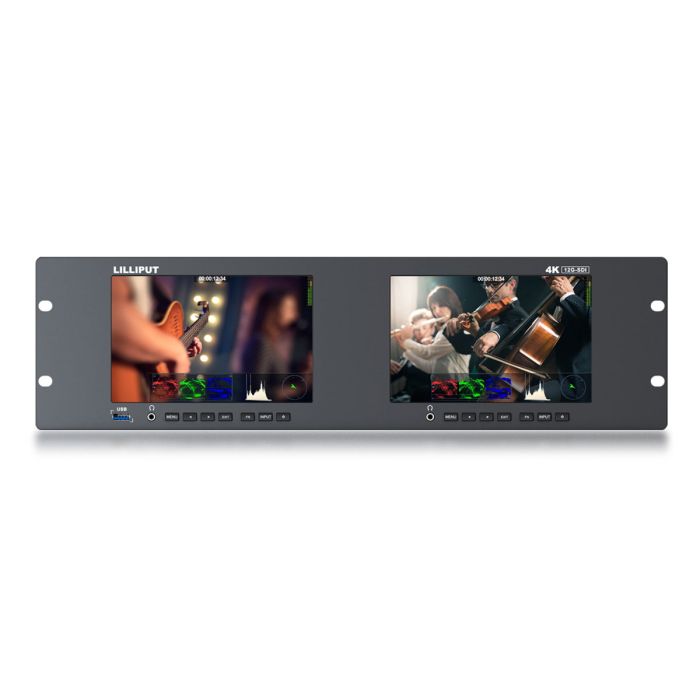

Lilliput RM-7026-12G Dual 7-Inch 3RU Rackmount 12G-SDI Monitor
2x 7 inch HDMI/12G-SDI, 3U Rack-Mountable Monitor with Daisy-Chain, Remote Control
MPN: RM-7026-12G SKU: RM-7026-12G
The RM7026-12G is a dual 7-inch 3RU rackmount monitor with 12G-SDI and HDMI connectivity, 1000-nit high-brightness displays, and LAN-based remote control. Designed for broadcast and live production, it offers flexible daisy-chain integration and reliable, high-quality monitoring in any environment.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The RM7026-12G is a dual 7-inch 3RU rackmount monitor designed for professional broadcast and live production environments. Featuring two high-brightness 1000-nit displays, it delivers clear, vibrant images—even in outdoor conditions. With support for 12G-SDI and HDMI inputs, as well as daisy-chain connectivity, it offers flexible integration into demanding workflows. The monitor also supports LAN-based remote control, allowing users to manage signal sources, functions, and audio settings directly from a connected computer—making it a powerful and efficient solution for rack-mounted monitoring
- Dual 7” displays – Monitor two sources simultaneously

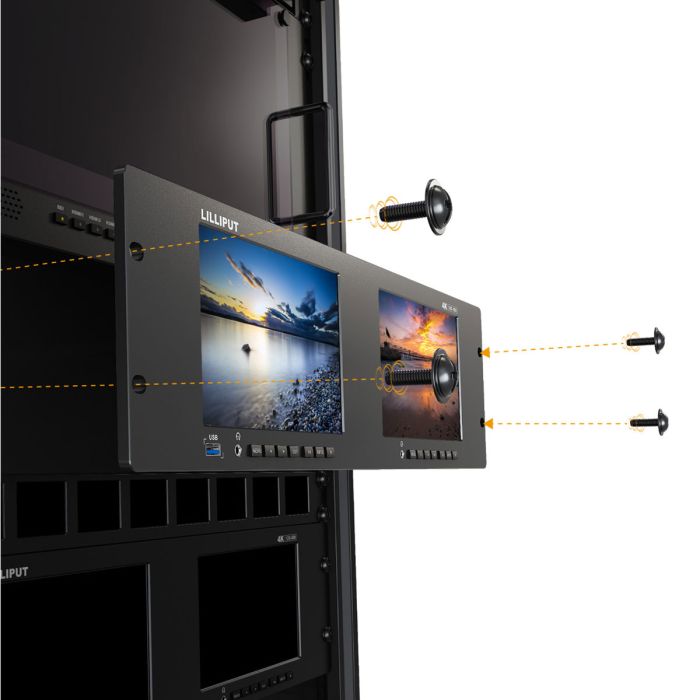

- 3RU rackmount design – Perfect for broadcast, OB trucks, and studio racks

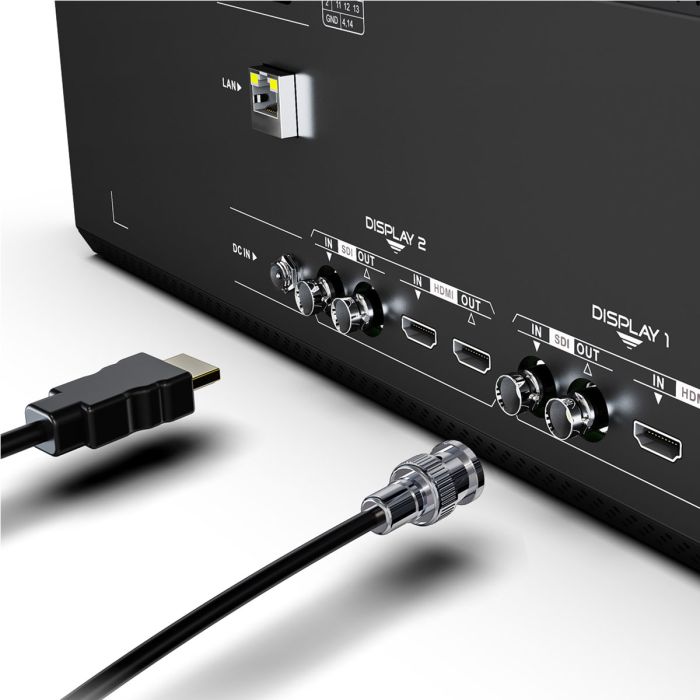

- 12G-SDI & HDMI I/O – High-resolution, flexible connectivity
- Daisy-chain support – Seamless integration into multi-monitor setups
- 1000-nit brightness – Clear, vibrant viewing in any environment
- LAN remote control – Adjust sources, settings, and audio via computer
- Built for professionals – Reliable performance for live and on-site production
Display
- Panel: 2x7" LTPS
- Physical Resolution: 1920x1200
- Aspect Ratio: 16:10
- Brightness: 1000 nits
- Contrast: 1200:1
- Viewing Angle: 160°/ 160°(H/V)
- HDR Supported HLG; ST2084 300/1000/10000

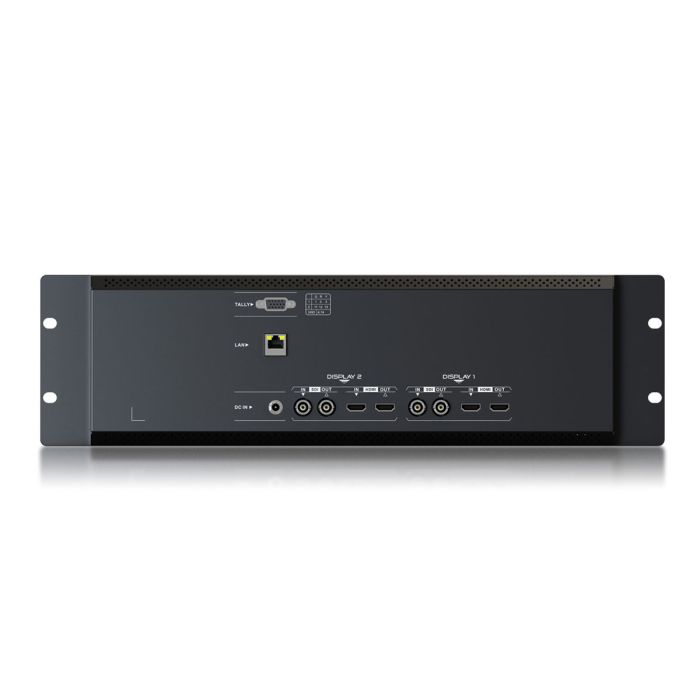

Video Input
- HDMI: 2 (HDMI 2.0)
- 12G-SDI: 2
Video Loop Output
- HDMI: 2 (HDMI 2.0)
- 12G-SDI: 2
Supported Formats
- HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.
- 12G-SDI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.
Power
- Operating power: ≤18W
- DC In: DC 7-24V
Audio In/Out
- Speaker: -
- Audio Channel: HDMI 8ch / SDI 16ch
- Ear Jack: 3.5mm - 2ch 48kHz 24-bit
Power
- Input Voltage: DC 12-24V
- Power Consumption: <21W (12V)
Environment
- Operating Temperature: 0°C-50°C
- Storage Temperature: -20°C-60°C
Other

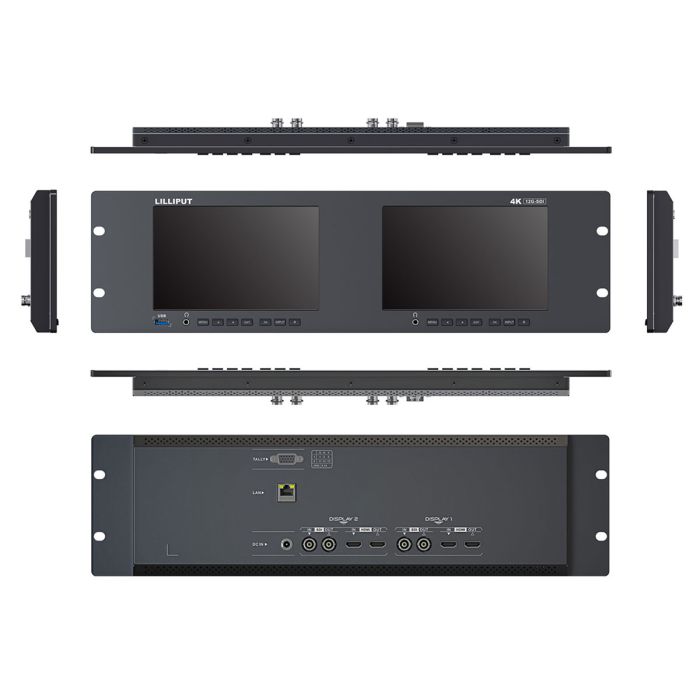

- Dimension(LWD): 480mm x 131.6mm x 32.5mm
- Weight: 1.83kg
